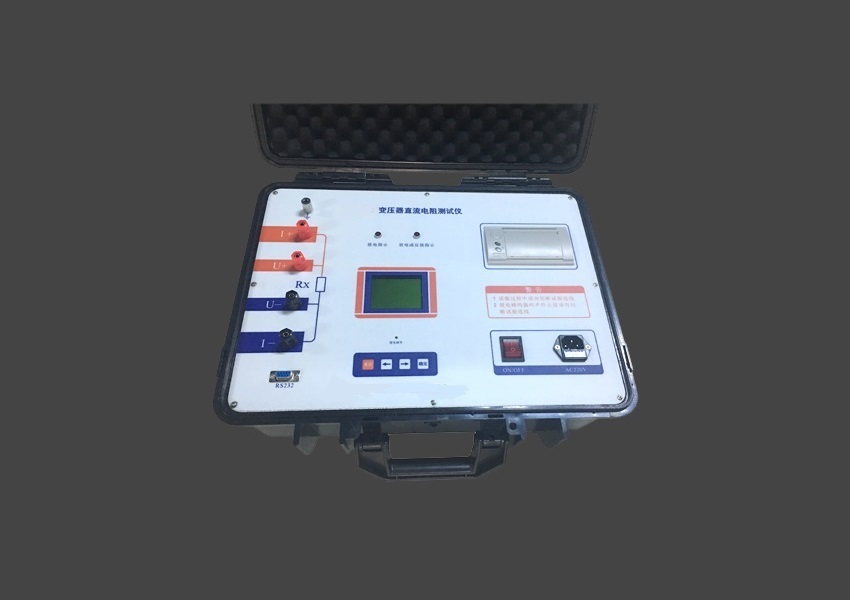

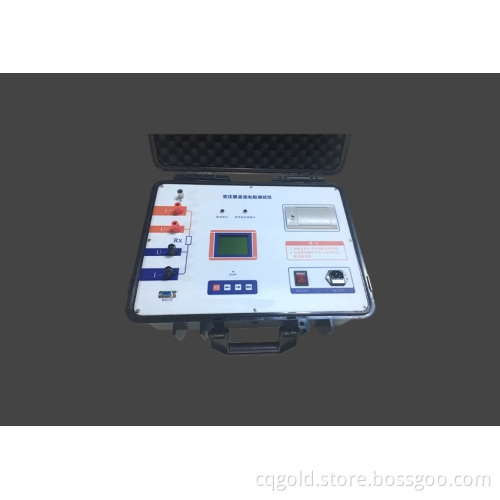

Transformer Winding Resistance Tester DC Resistance Tester (GDZC)
1.GDZC
Series Transformer Winding Resistance Tester is used for testing,
installing and exchanging the semi-finished or finished transformer.
2.GDZC Series Transformer Winding Resistance Tester is also a necessity for power department to do preventive trials.
3.GDZC
Series Transformer Winding Resistance Tester can effectively help you
to find disfigurements in the manufacturing of transformer, such as the
winding choosing, welding, loose joints, missing shares and hidden
danger in the running.
4.In order to meet the need of fast
measurement of DC resistance, our company makes use of our technological
advantage to develop the Micro Ohmmeter;
10A Transformer Winding Resistance Tester / DC Resistance Tester /Low Resistance Tester (GDZC)
1.Stable Input Current ,high power
2.Low noise , strong anti-interference ,reliable test result
3.Over-voltage ,over-current , misoperation , discharging and power off protection
4.Low weight and size , good performance in field
5.Many kind of current input ,wide range
6.Large Screen to display ,easy operation
10A Transformer Winding Resistance Tester / DC Resistance Tester /Low Resistance Tester (GDZC)
1. Test current
GDZC-2 max test current 2A
GDZC-10 max test current 10A
GDZC-20 max test current 20A
GDZC-40 max test current 40A
GDZC-100 max test current 100A
GDZC-20S max test current 20A Three channels measurement at the same time
2. Maximum measurement error:0.2%RDG+2D
3 .LCD display
4. Maximum voltage out for all series:20V
5. Resolution:1μΩ (for all series)
6. Measuring range:
1μΩ~4.5kohm(GDZC-2)
1μΩ~20ohm( GDZC-10)
1μΩ~10ohm(GDZC-20)
1μΩ~10ohm( GDZC-40)
7. Rated power supply:AC220V+-10%,50Hz/60Hz
8. Temperature:-10°C~+40°C RH<85%
