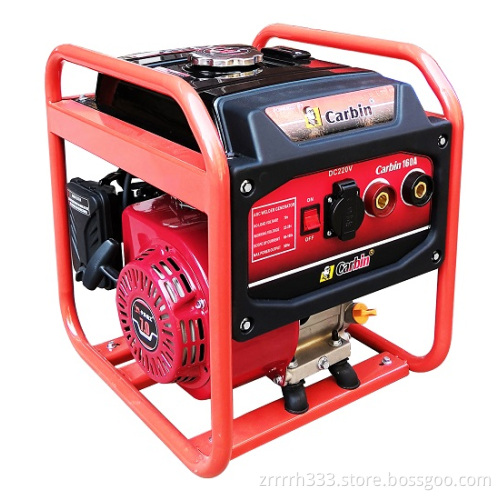

160A / 300A Auto-choke Gasoline / Diesel (Current-adjustable) Welder Generator
-
USD170≥20 Piece/Pieces
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB
- Min. Order:
- 20 Piece/Pieces
- Min. Order:
- 20 Piece/Pieces
- Delivery Time:
- 30 Days
- Transportation:
- Ocean
- Port:
- Chongqing, China
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 2000 pcs/month |
| Supply Ability: | 2000 pcs/month |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB |
| HS Code: | 84022000 |
| Transportation: | Ocean |
| Port: | Chongqing,China |
please directly contact terry.zheng at carbinpower dot com for more information
FAQ
Q: Why Carbin?
A: CARBIN is different and always INNOVATING - Specialized in differentiated products and services to global market. Carbin products will make our partners exclusive and enable partners to provide more choices to clients. More Choices Create More Opportunities.
Q: Carbin featured products?
A: Included but not limited to:
Auto Choke Engine
Strong Starting Current Gasoline (SSC) Generator
Electronic Fuel Injection (EFI) Generator
Digital Inverter Generator
Double Voltage Generator
Welder Generator
And so on-
Q: How to operate your AUTO CHOKE Carburator Gasoline Engine?
A: Just pull the recoil starter or turn the key starter in case of electric key start. There is no need to operate the carburator choke lever to start the engine or after engine being started and actually there is no choke lever on our Auto Choke Engine.
Q: What are the more benefits using AUTO CHOKE technology?
A: It is easy to start up the engine; it will also help to save up fuel in some way; it will help to minimize carbon deposition inside engine.
Q: Can your EFI Gasoline Generator be easily started at extremely cold weather conditions?
A: It is fairly easy to start the engine in extremely cold weather like below – 30℃ (-22℉) or even colder, just like the modern auto motives with EFI technology.
Q: How much fuel can your EFI Gasoline Generator save?
A: Carbin EFI Gasoline Generator can save fuel up to 30% compared with normal carburator gasoline generators.
Q: Can your SSC generator be able to power air conditioner or electric motors?
A: Yes. Our 2.8kW SSC generator can power 1.5 Ton Air Conditioner easily and 6.0kW SSC Generator can power either two poles or four poles electric motor easily, while normal generator can not do the same job.
Q: Can you supply free sample for testing?
A: We offer 100% refunding for one sample ordered for testing upon full container quantity order, negotiable.
Q: What is your MOQ (Minimum Order Quantity)?
A: There is need limits on our MOQ.
Q: What is your lead time for delivery?
A: Our production lead time is 7 days – 25 days according to order quantity.
Q: What payment terms are acceptable?
A: We accept payment by T/T and L/C.
Q: Any after sales or technical supports from your side offered to overseas dealers and end users?
A: We offer free training and site technical tutoring for maintenance and repairing in our factory or in your service centre.
160A / 300A Auto-choke Gasoline / Diesel (Current-adjustable) Welder Generator
Main Parameters:
|
Model |
Gasoline 160A / 300A |
Diesel 300A |
|
CCC Certification |
CCC Certified |
- |
|
Welding Mode |
Manual Arc Welding |
Manual Arc Welding |
|
No Load Voltage |
65 V |
65 V |
|
Welding Voltage |
22-28 V |
28-75V |
|
Welding Current |
50-210 A / 70-300A |
Max 300A |
|
Current Adjustor |
Yes based on demand of client / No |
Yes based on demand of client / No |
|
Continued Load Running Rate |
60% |
60% |
|
Auxiliary Power Output |
DC, 230V, 400W / DC, 230V, 1000W |
DC, 230 V, 1000 W |
|
Welding Electrode Size |
2.5-4.0 mm / 2.5-5.0 mm |
2.5-5.0 mm |
|
Engine Model |
170F / 192F |
192FD |
|
Engine Type |
Single Cylinder, Air Cooling, 4 - Stroke, OHC |
Single Cylinder, Air Cooling, 4-Stroke, Direct Fuel Injection |
|
Fuel Supply System |
Carburetor |
Diesel |
|
Displacement |
208CC / 420CC |
498CC |
|
Starting Method |
Recoil / Key Start |
Recoil / Key Start |
|
Fuel Tank, Oil Capacity |
3.6L, 0.6L / 6.5L, 1.1L |
5.0L/1.65L |
|
Gross Weight |
31 KG / 54KG |
87 KG |
|
Net Weight |
29 KG / 56KG |
83 KG |
|
Packing Size L×W×H |
520×410×535 mm / 570×535×570 mm |
650×530×630 mm |
|
Container Load |
240 to 160 units/20GP 500 to 360 units/40GP 620 to 360 units/40HQ |
110 units/20GP 220 units/40GP 300 units/40HQ |
Unique features different with conventional gasoline welder generators:
Carbin unique Current-adjustable design
Carbin Current Adjustor in Welder Generator can provide adjustable stable current output which will highly increase the welding efficiency.
Synchronous power generating and welding
Carbin brand Smart Engineering Welder KB160A outputs welding current strong enough to power argon arc welding, and generating DC current for another electrical appliance at the same time, making possible to operate welding job and power generating at the same time, being an ideal power tool for outdoor working site where urban power supply not available.
Carbin brand Smart Engineering Welder outputs 300A current strong enough to power argon arc welding, making possible to operate welding job and power generating at the same time, being a pioneer in powering 300A welder with single cylinder gasoline engine for best cost-effective benefits.
Light weight, portable makes competitive price
KB160A - Net weight of 29 KG for 2.5 – 4.0 mm electrode welding
KB300A - Net weight of 54 KG for 2.5 – 5.0 mm electrode welding
Auto Choke Engine (for Gasoline 160A) brings unique advantages:
EASY OPERATION - Designed according to aero-dynamics, the new auto-choke carburetor is easy and simple to operate for better starting up.
LONGER LIFE SPAN - Longer life span is achieved through eliminating excessive potential carbon deposition caused by operational mistakes.
ECO-FRIENDLINESS & ENERGY SAVING - Auto-choke carburetor will automatically adjust the intake amount of fuel and air mixture. Fuel consumption can be reduced by 20% at operation state with half load, thus fuel cost saved in one year will be as much as to buy two new conventional engines.
please directly contact terry.zheng at carbinpower dot com for more information
