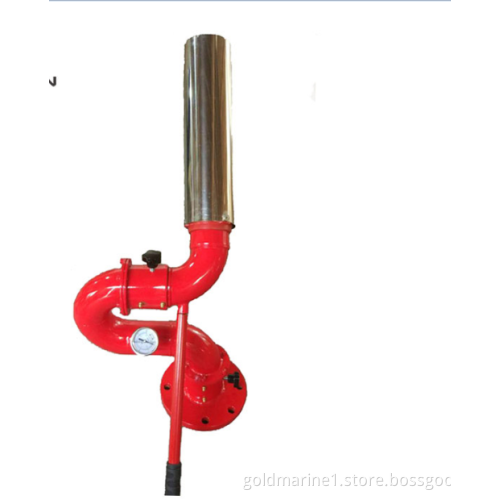

Fire Foam Monitor Fighting Equipment

Product Description

*Model: PP24C/PP32C

*Service pressure: 0.5-1.0Mpa

*Max service pressure: 1.0Mpa

*Spary capacity: Mixed Liquids 24L/S, Water 24L/S

                          Mixed Liquids 32L/S, Water 32L/S

*Range:>40m,45m

*Horizontal Rotary:≥±180°

*Max Angle of Elevation:≥±70°

*Max Angle of depression:≤ -60°

Allow error of Discharge capacity:±8%

Foaming time:(at 20 centigrade):≥2.5min

effluent capacity:40T/h(PPC24)

                         50T/h(PPC32)

Connecting Flange: DN50(PPC24)

                             DN65(PPC32)

Working Principle

The PLW series worm drive foam/water dual fire monitor also consists of base, shell body, sprayer, barrel and horizontal swing mechanism. What differs is that this model adjusts angles by worm drive group. Foam solution flows into shell from base and was atomized when it pass the sprayer. The fire monitor inhales air to make the foam solution become foams and shoot out from barrel. Operators can adjust its pitch angle and horizontal angle while using.
