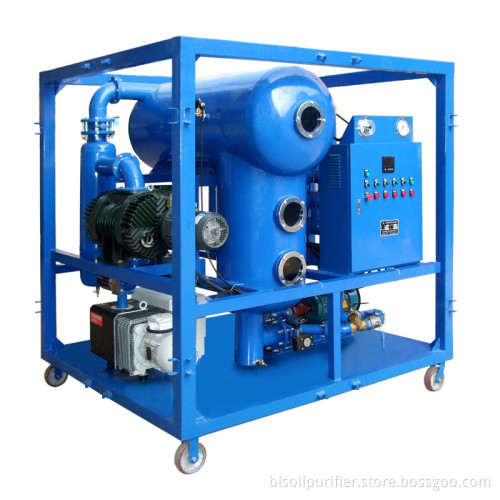

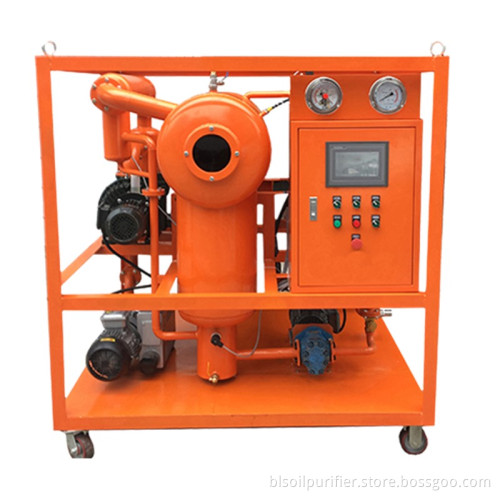

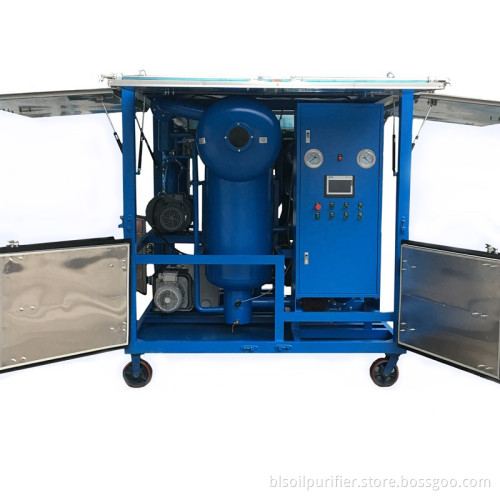

Double Stage Transformer Oil Purifier
Application
Waste Capacitor Oil Transformer Oil Purifier can quickly remove the water, gas, and other contaminants such as solid particles in the waste insulating oil, transformer oil, capacitor oil, switch oil, mutual inductor oil, etc. The breakdown voltage of the oil after processed can be improved by 35KV or above just for one-time. It is mainly suitable for the power transmissions equipment whose voltage is 110KV or above.
Technical Parameters
|
Model |
ZYD |
6 |
10 |
20 |
30 |
50 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
|
Flow Rate |
L/min |
6 |
10 |
20 |
30 |
50 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
|
Vacuum Degree |
MPa |
≤133 |
|||||||||||
|
Working Pressure |
MPa |
≤0.5 |
|||||||||||
|
Continuous Working Hour |
H |
≥200 |
|||||||||||
|
Trouble-free Working Hour |
H |
≥5000 |
|||||||||||
|
Working Temperature |
℃ |
40~70 |
|||||||||||
|
Power Supply |
380V,50HZ, 3Phase(Customizable) |
||||||||||||
|
Residual Water |
≤3PPM |
||||||||||||
|
Impurity Size |
≤1-3 micron |
||||||||||||
|
Residual Gas |
≤0.05% |
||||||||||||
|
Breakdown Voltage |
≥75KV |
||||||||||||
|
Oil Appearance |
Transparent |
||||||||||||
|
Working Noise |
dB(A) |
≤65 |
|||||||||||
|
Heating Power |
KW |
5 |
9 |
15 |
24 |
30 |
48 |
60 |
66 |
90 |
108 |
120 |
130 |
|
Total Power |
KW |
6.5 |
10.5 |
17.5 |
26 |
34 |
54 |
68 |
75 |
100 |
120 |
135 |
146 |
About Blossom
Chongqing Blossom Machinery Equipment Co., Ltd is located in Chongqing, one of the municipalities directly under the central government. The main products include instrument and apparatus, mechanical machinery such as liquid purification equipment and electric hoist, etc. The equipment is widely applied in construction, petroleum, mechanical, ships, pharmaceutical, lab test and edible oil processing, etc.
1. What's the payment method?
Payment can be done by cash T/T, L/C, Western Union, Alibaba Trade Assurance,etc.
2. How long is the delivery period?
Generally it takes about 10 working days for production and then the delivery will be done timely.
3.What's the package made of?
The package is made of international export standard wooden case.
4.What's the delivery method?
By train, by air, by sea, by truck, by express, etc.
5. How long is the guarantee period?
The guarantee period is 2 years due to the product quality problems itself.
6.What services can you provide?
Online support through email, telephone, Whatsapp or other communication method; onsite taining and installation if you need; filed maintenance and repair, technical video support, etc.
