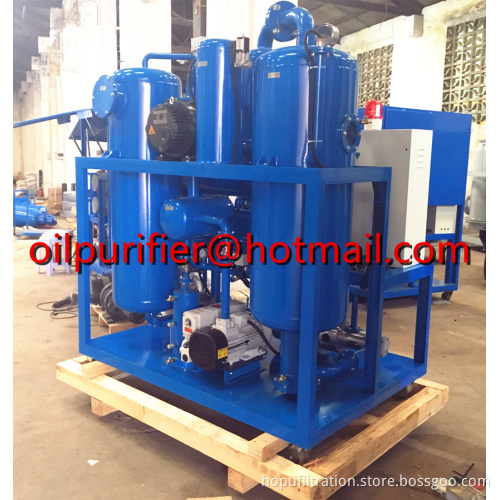

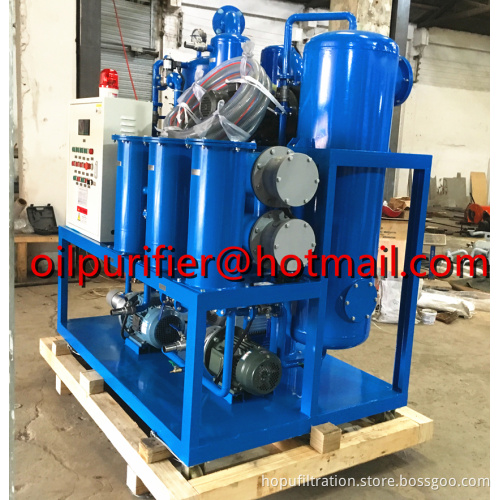

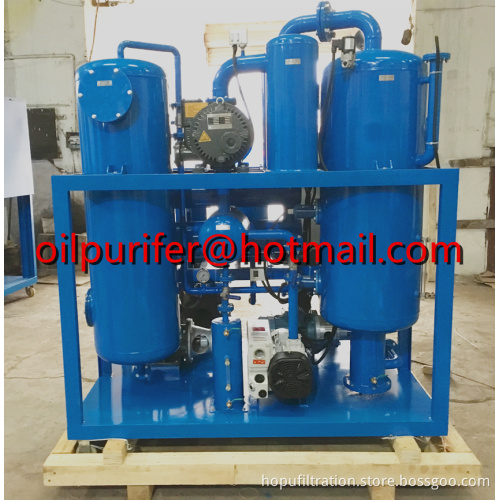

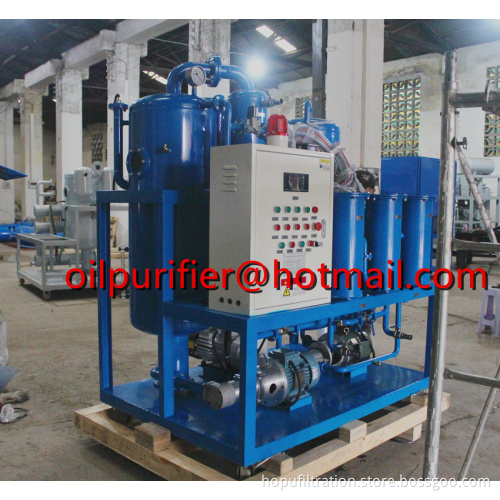

HOPU Vacuum Transformer Oil Purification Plant

Usage:
This machine mainly used to recycle unqualified new oil, imported oil and super HV transformer oil, particularly applied in large scale 110KV transport voltage device and the national transformer substations.
Features:
1. Add Roots Pump supercharge system and secondary high vacuum separation dehydration and degasification system on the basis of high efficiency vacuum purifier, which enable the vacuum limit reaching ≤3Pa.
2. Being able to eliminate water, gas and impurities etc. harmful contaminants quickly and effectively under high vacuum and high speed operation status, could enhance the breakdown voltage up to 75KV.
3. Being able to remove little tiny water and various gases from oil, and ensure that there is no acetylene in oil.
4. This machine can inject insulation oil into transformers, and then make dryness disposal.
5. The advanced infrared liquid control automatically system, interlocking control for pressure protection and power heating system ensure that long-term safe and reliable operation.
6. Have the function of electrification online operation.

Mainly Functions HOPU Transformer oil purifier
1. Hot oil circulation
2. Transformer oil dewatering, degassing, in addition to impurities
3. Transformer oil filteration
4. Transformer oil vacuum suction
5. In and out of the oil swap function
6. In the field of oil processing and electrical equipment for drying
7. Electrical equipments of vacuum oil injection
Superiority:
Compared with single-stage vacuum oil purifier, this machine is more quickly and more completely in dehydration, degasification and trash extraction; it makes the oil limited voltage- withstand value much higher. This machine has two purposes, which one as purification equipment; another can be an independent vacuum power supply. Besides, it can short the oil treating duration during installation and maintenance of transformer.

Edges of HOPU ZYD
1.To remove free, soluble water, carbon, free and dissolved gases and particulate matters, dust from insulating oil effectively and rapidly.
2.With Vacuum pump and Roots pump.
3.Enhance the value of breakdown voltage greatly.
4.Easy handling and maintenance.
5.Inject oil into the transformers.
6.Lower maintenance and replacement expenses.
7.Automatic reverse-washing system will extend the lifetime of filters and improve the performance of the filters.
8.High performance security system including pressure protection device and automatic temperature controller makes purifier operate safely.
9.Utilizes coacervation technology, coalescing technology, separating technology and refined purification technology. To remove free, soluble water, carbon, free and dissolved gases and particulate matters from insulating oil effectively and rapidly.

Technical Data
