Product Description

Application:

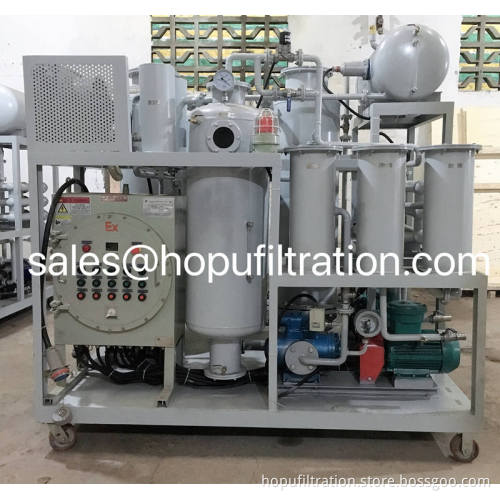

TYD series oil decoloration machine can quickly remove out impurities, water, gases and recover the oil color to original color. This machine uses our special additive to discolor, which is purely natural and has high efficiency. It can treat hydraulic oil, machinery oil, coolant oil, cooking oil, coconut oil in oil field, mine, metallurgy, electricity, transportation, manufacturing, food industry. The treated oil is very clear and transparent. It can also be equipped with waste oil distillation plant to highly improve the dark color of base oil/diesel after distillation process. And it is asked by customer to pre-treat the used cooking oil before further biodiesel.

Features:
This machine adopts the the latest micro-filtration technology,which is a multi-functional purification system with vacuum oil filter, fine filter and decoloring device.It uses pure physical treatment to remove water, gases, impurities and decolor,which will not affect the composition and performance of the oil. Equipped with chain protection device, the machine is easy to operate, safe and reliable.

Technical specs:

Parameters		Unit	TYD-1	TYD-2	TYD-3	TYD-5	TYD-10	TYD-15	TYD-20	TYD-30	TYD-50
Treatment Capacity		Ton/day(8 hr))	1	2	3	5	10	15	20	30	50
Power Supply			380V/50HZ/3Phase(Customizable)
Working Noise		dB(A)	≤65
Trouble-free Working Time		H	≥ 4000
Continuous Working Time		H	≥150
Inlet (outlet) caliber		mm	Ф25	Ф25	Ф25	Ф32	Ф42	Ф42	Ф50	Ф50	Ф60
Weight		kg	1500	2000	2500	3000	3500	4000	4500	5000	5500
Size	Length	mm	1800	1850	1900	1950	2000	2200	2300	2400	2500
	Width	mm	1300	1350	1400	1450	1500	1600	1600	1700	1800
	Height	mm	2300	2300	2300	2400	2500	2700	2700	2700	2700
	Color	L	≤ 1-3
	Impurity	μm	≤1(Customizable)
	Water	ppm	≤100
	Gas content	≤0.1%	≤15(GB/F 7305)
	Cleanliness	grade	≤6(NAS1638)

Features

1. Double primary filter structure with large capacity for removing impurities.

2. Multi-stage filtration system (Primary filter, Secondary filter, Fine filter) with gradually increasing filtration precision, removes impurities as much as possible.

3. Large area three-dimensional flash distillation technology, removes gas and water efficiently.

4. Strong ability of demulsification.

5. All necessary control switch, light indicator and meter are equipped on the control panel which provides easy control for operation and supervision.

6. Advanced medium cooling system.

7. Humanization design for easy operation and regular maintenance.

8. Efficient electric heating system, heating uniformity, avoid oil deterioration in the process.

9. Float level sensor, pressure protective system to ensure safety operation.

10. Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor.
