Product Description

Single-stage Transformer Oil Purifier machine, low vacuum insulation oil treatment plant made in Chongqing,China

High vacuum oil purifiers are designed for treating electrical insulating oil in the oil-filled electrical equipments. Through the dehydrator, degasification, filtration processes, the dissolved gases and moisture, solid particulate, contamination can be completely removed.

Our quality vacuum oil purifier is widely used in factory workshops,power transmission and generation station.
Utilizing our high vacuum oil purifier, the quality of insulating oil can be upgraded and the deteriorated oil can be reclaimed that could extent the life of insulating oil and ensure safety operation of oil-filled electrical equipment treatment.

Applicable Transformer: 10kV ~ 1000kV
Capacity: 200 to 30,000 Liters/Hour, or more

Features:

Fully automatic 24 hour continuous operation, enables unattended supervision
High vacuum: limiting vacuum less than 5pa, working vacuum less than 35pa

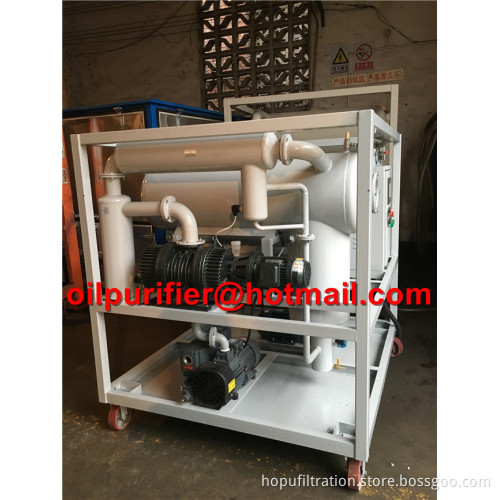

High absorption speed, absorption speed power more than 333L/Sr.
Oill foam will be eliminated quickly in the process of treatment

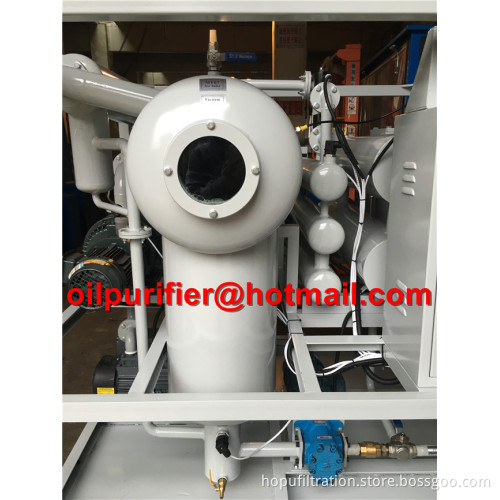

Duplex 3D stereo-evaporation technology, this Oil spraying type with large vaporization surface in vacuum chamber
Utilization of low load heater to avoid oil deterioration in the process

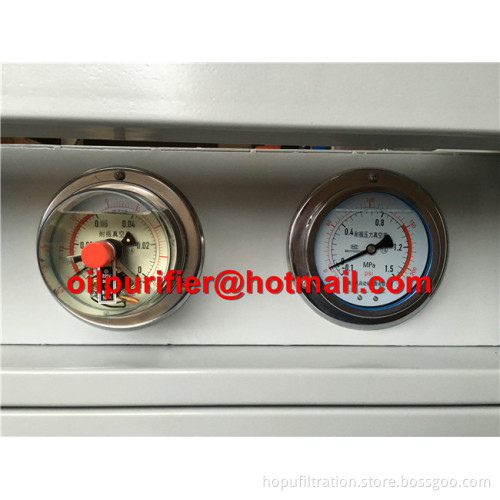

All necessary control switch, light indicator and meter are equipped on the control panel which provides easy control for operation and supervision
dewaters, degases and removes impurities more quickly, more completely and make the oils limiting voltage-withstand value much higher.
This machine also can remove free, soluble water, carbon, free and dissolved gases and particulate matters from insulating oil effectively and rapidly

Type selection:

A: Single Chamber, Single-stage High Vacuum System
B: Two-chamber, Double-stage High Vacuum System
Optional:

A : Without Enclosure, open and Stationary type
B : With Enclosure, Cubicle and Stationary type
C : With Skid base type

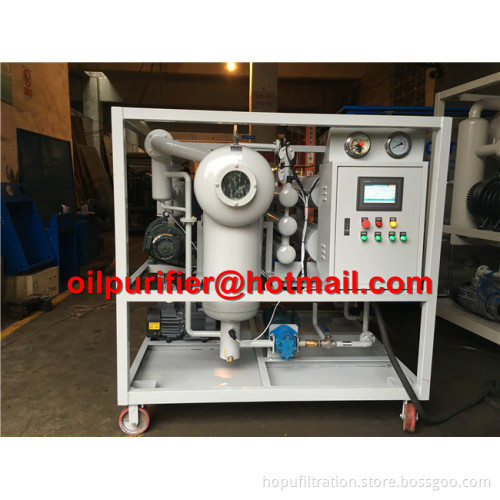

D : Mounted on casters
E : Mounted on Single-axle Trailers (Pneumatic tyre, Speed selectable)
F : Mounted on Double-axle Trailers (Pneumatic tyre, Speed selectable)
You May also be interested in:
A: Transformer Oil Tester, Testing the insulating oil's dielectric strenght
B: Vacuum Pumping Set, pumping the transformer
C: Moisture Meter, measuring the water content in the transformer oil
D: Flow meter, measuring the flow oil quanity through the machine

Parameters		Unit	ZY-6	ZY-10	ZY-20	ZY-30	ZY-50	ZY-100	ZY-150	ZY-200	ZY-300
Flow rate		L/h	360	600	1200	1800	3000	6000	9000	12000	18000
Vacuum degree		MPa	-0.06~-0.095
Working pressure		MPa	≤0.3	≤0.4	≤0.4	≤0.4	≤0.5	≤0.5	≤0.5	≤0.5	≤0.5
Temperature range		°C	20 ~ 80
Continuous working		H	150
Power supply			Three phase,50HZ ,380V(or as per customer requirement)
Working noise		dB(A)	60	61	63	70	70	75	70	70	70
Heating power		kW	9	11	13	15	30	48	58	70	85
Total power		kW	9.7	12.5	14.5	16.5	33.5	53	65	76	94
Oil inlet/outlet		mm	φ20	25	φ25	φ25	φ32	φ42	φ50	φ50	φ60
Weight		Kg	150	230	250	270	300	500	700	900	1100
Size	L	mm	970	1050	1100	1150	1200	1600	1600	1800	1900
	W	mm	630	750	850	900	950	1000	1100	1200	1200
	H	mm	900	1300	1400	1450	1500	1800	1800	1900	1900

Item	After treatment
Moisture content	≤5PPM
Impurity size	≤1 micron
Gas content	≤0.1%
Breakdown voltage	≥70
