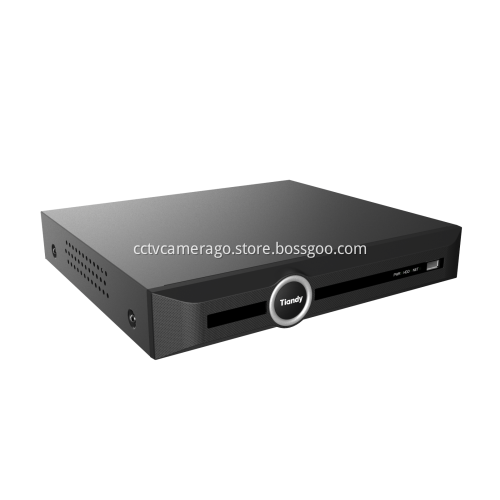

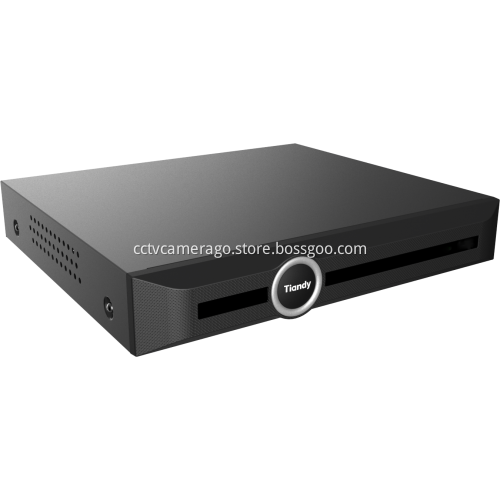

H.265 1 HDD 5ch Face Recognition NVR TC-R3105
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW, FCA
- Min. Order:
- 5 Set/Sets
- Min. Order:
- 5 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Tianjin |
|---|---|
| Productivity: | 50000 sets per week |
| Supply Ability: | 200000 per month |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW,FCA |
| Certificate: | ISO9001 CE FCC SGS |
| HS Code: | 85299049 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Shanghai |
Features
HD Input
• S+265/H.265/H.264 video formats
• Connectable to the third-party network cameras
• Up to 5-channel input
• Support live view, storage, and playback of the connected camera at up to 6MP resolution
HD Output
• HDMI and VGA simultaneous output
HD Storage
• 1 SATA interface, up to 10TB for 1 HDD
• S+265 compression effectively reduces the storage space and costs by up to 75%
HD Transmission
• 1×RJ45 self-adaptive 10/100 Mbps network interface
Various Applications
• Centralized management of IP cameras, including configuration, information import/export, real-time information display, upgrade, etc.
• 1:N people face recognition.
• Connectable to smart IP cameras from Tiandy and the recording, playing back, and backing up of VCA alarms can be realized
• VCA detection alarm is supported
• Smart search for the selected area in the video and smart playback to improve the playback efficiency
• Web6 supports plug-in-free browsing and can preview videos on all browsers
• Support cloud upgrade
• Support voice broadcast, built-in Speaker
Product Details
Specifications
Input
Video Input
5-ch
Max Resolution
6MP
Two-way Audio Input
N/A
Bandwidth
Income 80Mbps; Outcome 80Mbps
Output
HDMI/VGA Output
HDMI: 1-ch, 1920×1080, 1280×720, 800×600, 1024×768, 1366×768, 1440×900, 1280×800
VGA:1-ch, 1920×1080, 1280×720, 800×600, 1024×768
Screen Split
1/3/4/6
Audio Output
N/A
Decoding
Decoding Format
S+265/H.265/H.264
Recording Resolution
6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Preview Capability
1×5MP, 1×4MP, 3×1080P, 5×720P, 10×4CIF
Synchronous Playback
1×5MP, 1×4MP, 3×1080P, 5×720P
Records Encryption
Yes
Hard Disk
SATA
1 SATA interface for 1 HDD
Capacity
Up to 10TB for each HDD
eSATA Interface
N/A
Array Type
N/A

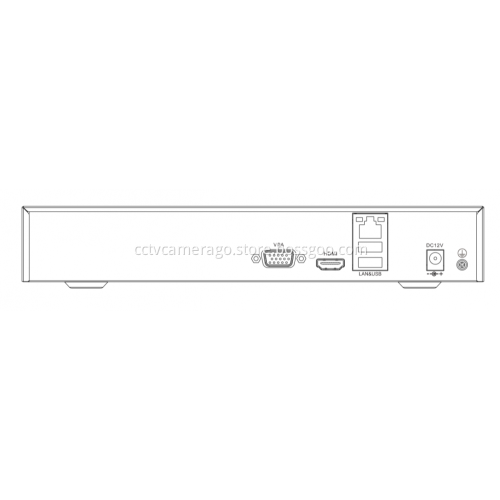

External Interface
Network Interface
1×RJ45 self-adaptive 10/100 Mbps network interface
USB Interface
2×USB 2.0
Serial Interface
N/A
Alarm In/Out
N/A
Reliablity
N+M Hot Standby
N/A
ANR
N/A
Face Recognition
Base Libraries
32
Face Pictures
10,000
Video Stream for Recognition
1
Picture Stream for Recognition
5
Face Picture Search
Yes
General
Web Version
Web6
Language
English, Simple Chinese
Operating Conditions
-10℃～55℃, 10%~90% RH
Power Supply
DC12V 3.33A
Consumption (without HDD)
≤10W (without HDD)
Chassis
1U
Dimensions
45.1×255×231 mm (1.78×10.04×9.09 inch)
Weight (without HDD)
1.55Kg (3.42lb)
Related Products
TC-R3105
TC-R3110
TC-R3120
Cases Apprecitations
To the customer’s requirements for safety, the property developer worked with system integrator to install a full Tiandy surveillance solution. This included 252pcs Tiandy starlight VF bullets and 48pcs starlight VF domes, 2pcs Tiandy 320-ch super NVR as well as Tiandy Easy7 VMS video management software.
To provide 24hr colorful image of high quality, the new cameras supported by TVP algorithm are equipped with video analytics that include loitering detection, automatically detecting people who lingers in an area for a certain time and alerting security operators. HD Dome cameras has discouraged the attempts to vandalize them, and it expands coverage to areas where surveillance was once limited because of tough viewing angles. The extra Tiandy super NVR with dual power supply can be prepared as an extra NVR, with ANR function which can store footage in the camera in case of sudden outage. With these multiple protections the system can keep running in a total secure environment.
