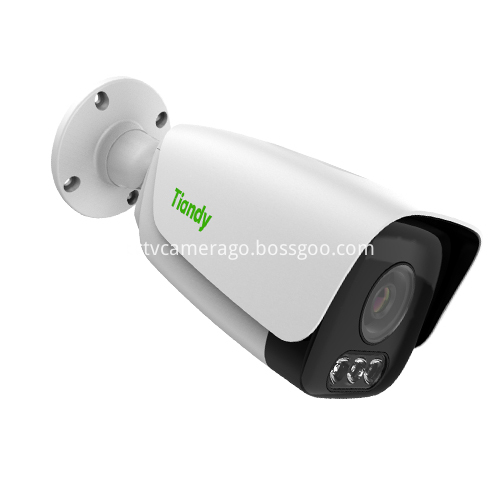

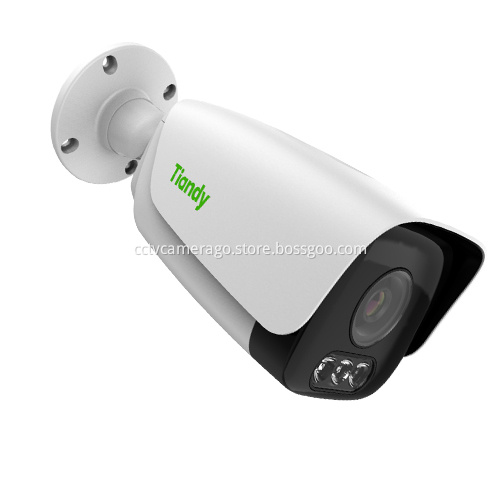

2MP Starlight Motorized Face Recognition Camera TC-A32L4
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW, FCA
- Min. Order:
- 5 Set/Sets
- Min. Order:
- 5 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Tianjin, Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Tianjin |
|---|---|
| Productivity: | 50000 sets per week |
| Supply Ability: | 200000 per month |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW,FCA |
| Certificate: | ISO9001 CE FCC SGS |
| HS Code: | 85299049 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Tianjin,Shanghai |
Features
· 1/2.8 inch CMOS sensor
· Up to 1920X1080 30fps
· Min. illumination Color: 0.001Lux F1.2
· S+265/H.265/H.264/M-JPEG
· Face recognition/face capture/intelligent monitoring mode
· White light distance 2m~8m
· IP67, PoE
Product Details
Specifications
| Camera |
|
| Image Sensor | 1/2.8" CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.001Lux@ (F1.2, ACG ON), B/W: 0Lux with IR |
| Shutter Time | 1s to 1/100,000s |
| Day & Night | Dual IR Cut Filter with Auto Switch |
| Wide Dynamic Range | 120dB |
| Lens |
|
| Lens Type | Motorized |
| Focus | 2.8-12mm |
| Lens Mount | Ø14 |
| Aperture | F1.3~F2.2, DC Drive |
| FOV | Horizontal field of view: 95.7°～35.5° |
| Illuminator |
|
| IR LEDs | 2 |
| IR Range | Up to 50m |
| Wavelength | 850nm |
| White LEDs | 3 |
| Compression Standard |
|
| Video Compression | S+265/H.265/H.264/M-JPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Audio Compression | G.711A/G.711U/ADPCM_D/AAC_LC |
| Audio Bit Rate | 8K~48Kbps |
| Image |
|
| Max. Resolution | 1920×1080 |
| Main Stream | PAL: 25fps (1920×1080, 1280×960, 1280×720, 704×576, 640×480) |
| NTSC: 30fps (1920×1080, 1280×960, 1280×720, 704×480, 640×480) | |
| Sub Stream | PAL: 25fps (704×576, 704×288, 640×360, 352×288) |
| NTSC: 30fps (704×480, 704×240, 640×360, 352×240) | |
| Third Stream | 4CIF |
| Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| Image Enhancement | BLC/3D DNR/HLC/Corridor Format |
| ROI | Support 7 fixed region of coding |
| OSD | 16×16, 24×24,32×32, 48×48, 64x64, adaptable size, Letters Such as Week, Date, Time, Total 5 Regions |
| Picture Overlay | Yes |
| Privace Mask | Yes |
| Smart Defog | Yes |
| Feature |
|
| Alarm Trigger | Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception |
| Video Analytics | Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, On Duty Detection, Video Abnormal, Audio Abnormal |
| Early Warning(EW) | Yes |
| Intelligent Coding | N/A |
| Intelligent Image | N/A |
| Intelligent Alarm | N/A |
| Face Detection and Analytics |
|
| Operating Mode | Face recognition, face capture, intelligent monitoring optional, default face recognition |
| Face Detection Performance | Detects up to 32 faces at the same scene |
| Face Exposure Brightness | Default 35, 1-100 brightness optional |
| Min. Face Pixel | Default 80, 19-1920 optional |
| Face Recognition | Yes |
| Face Library | 32 |
| Face Pictures | 5000 |
| Face Library Management | Retrieve, import, export |
| Face Recognition Alert | Comparision Alarm, stranger alarm |
| Precautionary Alert | Three Level |
| Network |
|
| ANR | Yes |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, MULTICAST, UPnP, FTP, IPV4, NTP, RTSP, SMTP, IGMP, QoS, PPPoE |
| System Compatibility | ONVIF (PROFILE S), SDK, CGI, P2P |
| Remote Connection | ≤7 |
| Client | Easy7, EasyLive |
| Web Version | Web6 |
| Interface |
|
| Communication Interface | 1 RJ45 10M/100M self adaptive Ethernet port |
| Audio | 1/1, Mic in |
| Alarm | 2/1 |
| Reset Button | Yes |
| On-board storage | Built-in MicroSD card slot, up to 128 GB |
| General |
|
| Firmware Version | NVSS_V20.0.1.20190313_SP1 |
| Web Client Language | English, Simple Chinese |
| Operating Conditions | -35℃～65℃, 0～95% RH |
| Power Supply | DC12V±20%/PoE |
| Power Consumption | MAX: 9W(12V) MAX: 10W(POE) |
| Protection | IP67 |
| Heater | N/A |
| Dimensions | 330×114×107 mm (12.99*4.49*4.21 inch) |
| Weight | 1.5kg (3.31lb) |
Related Products
TC-A32E2 2/E/12mm
TC-A32F2 2/E/6mm
TC-A32E4 1/E/12mm
TC-A32E4 1/E/12mm
TC-A32L4 1/A/E/2.8-12mm
TC-A32M41/A/E/2.8-12mm
Cases Apprecitations
To the customer’s requirements for safety, the property developer worked with system integrator to install a full Tiandy surveillance solution. This included 252pcs Tiandy starlight VF bullets and 48pcs starlight VF domes, 2pcs Tiandy 320-ch super NVR as well as Tiandy Easy7 VMS video management software.
To provide 24hr colorful image of high quality, the new cameras supported by TVP algorithm are equipped with video analytics that include loitering detection, automatically detecting people who lingers in an area for a certain time and alerting security operators. HD Dome cameras has discouraged the attempts to vandalize them, and it expands coverage to areas where surveillance was once limited because of tough viewing angles. The extra Tiandy super NVR with dual power supply can be prepared as an extra NVR, with ANR function which can store footage in the camera in case of sudden outage. With these multiple protections the system can keep running in a total secure environment.
