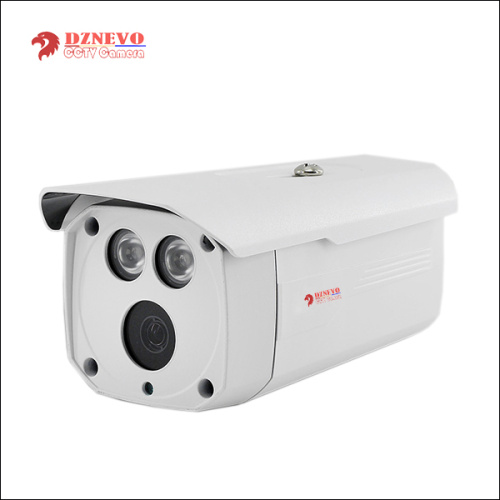

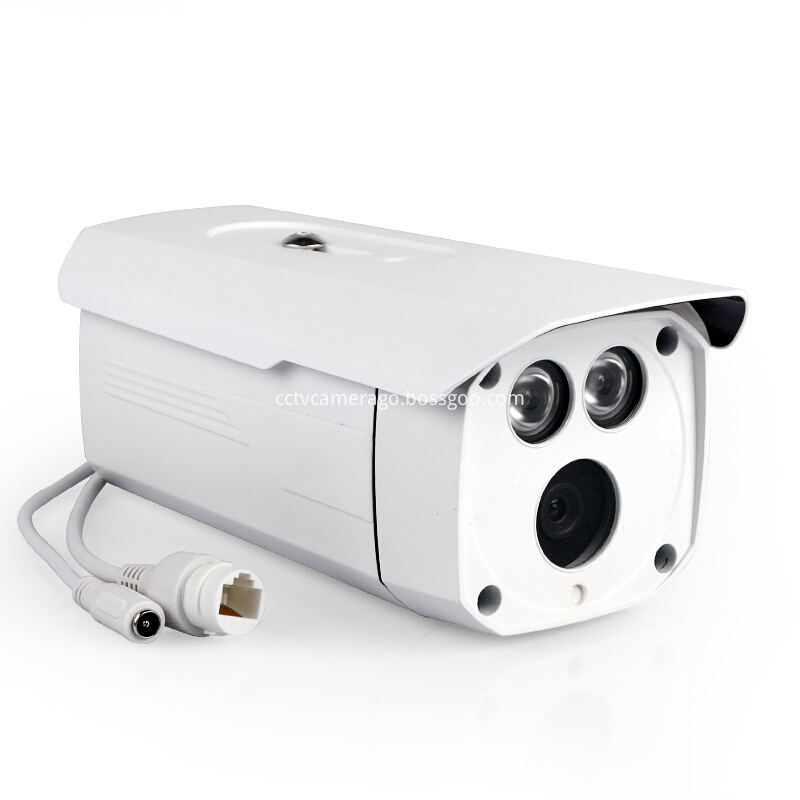

1.0MP HD DH-IPC-HFW1025D CCTV Cameras
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW, FCA
- Min. Order:
- 5 Set/Sets
- Min. Order:
- 5 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shenzhen, Guangzhou, Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen |
|---|---|
| Productivity: | 50000 sets per week |
| Supply Ability: | 200000 per month |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW,FCA |
| Certificate: | ISO9001 |
| HS Code: | 85299049 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen,Guangzhou,Shanghai |
Prduct Description
DENEVO 1MP series (1MP CCTV Camera Basic Series ) CCTV cameras are disigned as economical production with high cost perfomance. They are used widely in all kinds of fields such as school ,road ,hotel,hospital, shop and so on.
This series include popular bullet,box ,dome camera types and offer 8 configurations for user’s different requires.
DH-IPC-HFW1025B
DH-IPC-HFW1020B
DH-IPC-HFW1025D
DH-IPC-HFW1020D
DH-IPC-HDW1025C
DH-IPC-HDW1020C
DH-IPC-HDBW1020R
DH-IPC-HDBW1025R
The prduct features as below
1. Maximum frame rate output reach to 1 million (1280*720) 30fps.
2.1MP Series CCTV cameras take 1/4 inch COMS sensor,can get clearer images in low-light conditions.
3. 1MP Series CCTV cameras support H264 coding ,with feature of high compression ratio and low steam.
4.Maximum IR distance can reach to 80M.
5.Support corridor mode,WDR,3DNR,HLC,BLC,digtal watermaking encryption, suitbale for different surveillance envrioment.
6.Support SMART H.264,can encode flexibly,apply to different bandwidth and storage.
7.Support DC12V/POE power supply, easy to engineering mount.

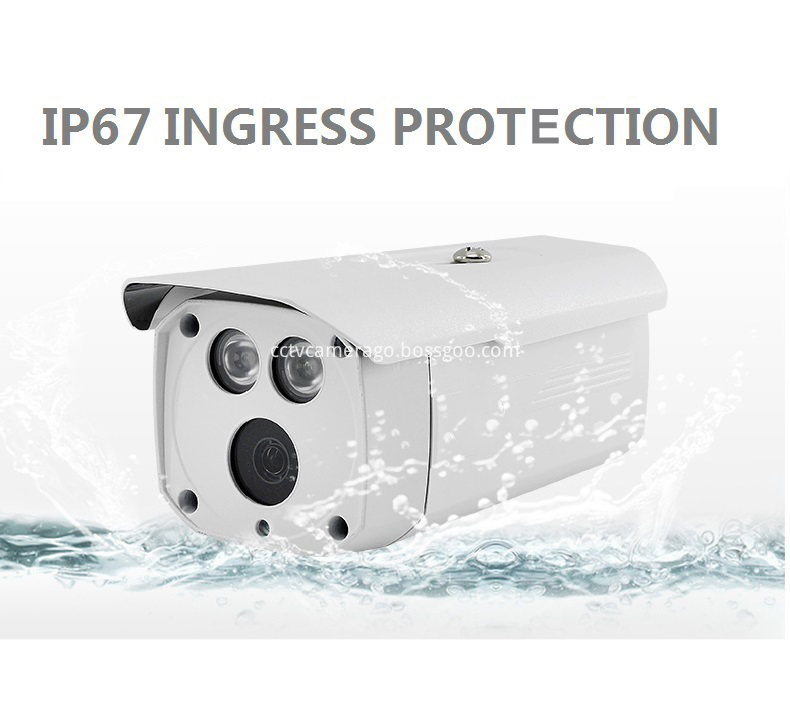

8.Support IP67 ingrees protection.
Specifications
Sensor
1/4"CMOS
Effective Pixels
1MP
LED
2
Electronic Shutter Speed
Auto/Manual
1s~1/100000s
Minimum Illumination
0.01Lux(Color);0.001Lux(BW);0Lux（OLUX）
Maxmium Infrated Range
80M
Day/Night
IR-CUT
Auto
Scanning System
Progressive
Noise Reduction
3D
DNR
Wide Dynamice Range
Support
Signal to Noise Ratio
>56dB
Gain Control
Auto/Manual
White Balance
Auto/Manual
Backlight Compensation Mode (BLD)
Support
HLC
Support
Focal Length
2.8mm/3.6mm/6mm/8mm
Lens Interface
M12
Aperture Type
Fixed
Lens Type
Fixed
Video Coding Standards
H.264;H.264B;H.264H
Bit Rate
H.264;16kbps～4096kbps
Frame Rate
50Hz:Main
Steam (1280*720@25fps);Sub Steam(704×576@25fps)；
60Hz:Main Steam(1280*720@30fps);Sub
Steam(704×480@30fps)
Default Stream at Default Resolution
2M
Abonormality Detection
Support
dynamic Detection ;Occlusion Detection;Network disconnection;IP
Conflict;Unauthorized Access
Image Settings
Brightness;
Contrast; Sharpness. Saturation; Gamma
OSD Superposition
Time;Channel;Location;Picture
Heartbeat Mechanism
Support
Record
Manual;Detection;Timing Priority Manual>Detection>Timing
Edage Storage
NAS;FTP;IMOU
Max. Users Access
20
Restore Default
One-click
Restore
Web Viewer
IE7;IE8;IE9;IE10;Chrome8+;Firefox3.5+;Safari5+
User Management
Support
Max 20 Users;Multi-levels User Administration
Safe Mode
Authorised
User and Password;MAC Address Binding;HTTPS Encrytion;IEEE 802.1x;NAC
AI
Support
Dynamic Detection Occlusion Detection
Privcy Masking
Off/On
(4 Zone; Rectangle)
Corridor Mode
Support
Network Interface
1;10/100M
Ethernet Interface
Protocol
HTTP;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;SNMP;QoS;UPnP;NTP
Interoperability
ONVIF;GB/T28181;CGI;PSIA;Imou
Power Supply
DC12V+POE（1025
Does not Support POE）
Power Consumption
4.0W
Operating Conditions
﹣30℃～﹢60℃
Operating Humidity
≤95%
Ingress Protection
IP67
Casing
Metal
and Plastic

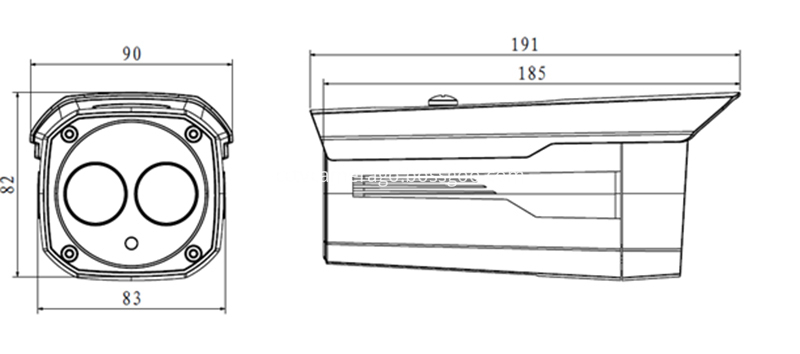

Dimensions
191mm×90mm×82mm
Net Weight
450g
Installation
Wall
Mount;Ceilling Mount;Plane Installation
