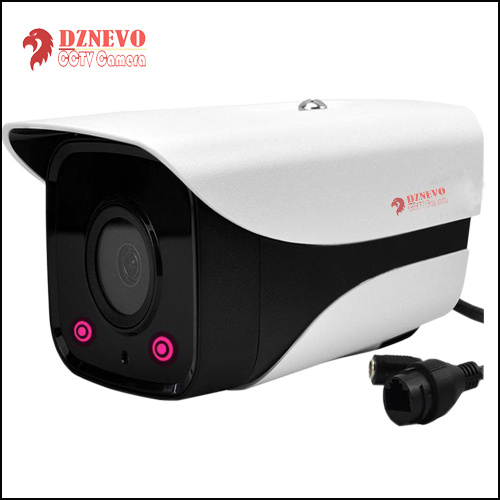

2.0MP HD DH-IPC-HFW1225M-I2 CCTV Cameras
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW, FCA, CPT, CIP
- Min. Order:
- 5 Set/Sets
- Min. Order:
- 5 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shenzhen, Shanghai, Guangzhou
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen |
|---|---|
| Productivity: | 50000 sets per week |
| Supply Ability: | 200000 per month |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CPT,CIP |
| Certificate: | ISO9001 |
| HS Code: | 85299049 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen,Shanghai,Guangzhou |
Product Description
DENEVO 2MP series (2MP CCTV Camera Basic Series )CCTV cameras are disigned as economical production with high cost perfomance. They are used widely in all kinds of fields such as school ,road ,hotel,hospital, shop and so on.
This series include popular bullet,box ,dome camera types and offer 8 configurations for user’s different requires.
DH-IPC-HFW1220M-I1
DH-IPC-HFW1225M-I1
DH-IPC-HFW1220M-I2
DH-IPC-HFW1225M-I2
DH-IPC-HDW1220C
DH-IPC-HDW1225C
DH-IPC-HDBW1220R
DH-IPC-HDBW1225R
The prduct features as below
1.2MP Series CCTV cameras take 1/3 inch COMS sensor,can get clearer images in low-light conditions.
2. Maximum frame rate output reach to 2 million (1920*1080) 30fps.
3. 2MP Series CCTV cameras support H.264 High profile、H.264 Main profile、H.264 Baseline、MJPEG ,with feature of high compression ratio and low steam.
4.Maximum IR distance can reach to 50M.
5.Support corridor mode,WDR,3DNR,HLC,BLC, suitbale for different surveillance envrioment.
6.Support network disconnection, IP conflict,dynamic detection, occlusion detection.
7.Support DC12V/POE power supply, easy to engineering mount.
8.Support IP67 ingrees protection.
Specifications
DH-IPC-HFW1220M-I1/DH-IPC-HFW1225M-I1 DH-IPC-HFW1220M-I2/DH-IPC-HFW1225M-I2
Sensor
1/3"CMOS
Effective Pixels
2MP
LED
I1
1 ,I2 2
Electronic Shutter Speed
Auto/Manual
1s~1/100000s
Minimum Illumination
0.01Lux(Color);0.001Lux(BW);0Lux（OLUX）
Maxmium Infrated Range
I1
50M ,I2 80M
Day/Night
IR-CUT
Auto
Scanning System
Progressive
Noise Reduction
3D
DNR
Wide Dynamice Range
Support
Signal to Noise Ratio
>56dB
Gain Control
Auto/Manual
White Balance
Auto/Manual
Backlight Compensation Mode (BLD)
Support
HLC
Support
Focal Length
2.8mm/3.6mm/6mm/8mm
Lens Interface
M12
Aperture Type
Fixed
Lens Type
Fixed
Field of View
2.8mm:106*59
3.6mm:84*47
6mm：51*30
8mm：37*22
Video Coding Standards
H.264;H.264H;H.264B;MJPEG
Bit Rate
"H.264:7Kbps～8Mbps
MJPEG:10Kbps～2Mbps"
Frame Rate
50Hz:Main
Steam (1280*1080@25fps);Sub Steam(704×576@25fps)；
60Hz:Main Steam(1280*1080@30fps);Sub
Steam(704×480@30fps)
Default Stream at Default Resolution
4M
Abnormality Detection
Support
dynamic Detection ;Occlusion Detection; Scene-change Detection,Network
disconnection;IP Conflict;Unauthorized Access
Image Settings
Brightness;
Contrast; Sharpness. Saturation; Gamma
OSD Superposition
Time;Channel;Location;Picture
Mirror
Support
Reverse Image
Support
Heartbeat Mechanism
Support
Record
Manual;Detection;Timing Priority Manual>Detection>Timing
Edage Storage
NAS;FTP;IMOU
Max. Users Access
20
Restore Default
One-click
Restore
Web Viewer
IE7;IE8;IE9;IE10;Chrome8+;Firefox3.5+;Safari5+
User Management
Support
Max 20 Users;Multi-levels User Administration
Safe Mode
Authorised
User and Password;MAC Address Binding;HTTPS Encrytion;IEEE 802.1x;NAC
AI
Support
Dynamic Detection, Occlusion Detection,Scene-change Detection
Privcy Masking
Off/On
(4 Zone; Rectangle)
Corridor Mode
Support
Network Interface
1;10/100M
Ethernet Interface
Protocol
HTTP;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;IPv4/v6;QoS;UPnP;NTP;Bonjour;802.1x;Multicast
Interoperability
ONVIF;GB/T28181;CGI;PSIA;Imou
Power Supply
DC12V+POE（1225
Does not Support POE）
Power Consumption
Normal
value 1.5W , Maximum value 3.9W
Operating Conditions
﹣30℃～﹢60℃
Operating Humidity
≤95%
Ingress Protection
IP67
Casing
Metal
and Plastic
Dimensions
194mm×96mm×89mm
Net Weight
450g
Installation
Wall
Mount;Ceilling Mount;Pan Mount
Product Details
