3.0MP HD DH-IPC-HFW1320M-I1 CCTV Cameras

3.0MP HD DH-IPC-HFW1320M-I1 CCTV Cameras

USD30.15

≥50 Set/Sets

Payment Type:: L/C, T/T, Paypal, Money Gram, Western Union

Incoterm:: FOB, CFR, CIF, EXW, FCA, CPT, CIP

Min. Order:: 50 Set/Sets

Min. Order:: 50 Set/Sets

Delivery Time:: 15 Days

Transportation:: Ocean, Land, Air, EXPRESS

Port:: Shenzhen, Guangzhou, Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	50000 sets per week
Supply Ability:	200000 per month
Payment Type:	L/C,T/T,Paypal,Money Gram,Western Union
Incoterm:	FOB,CFR,CIF,EXW,FCA,CPT,CIP
Certificate:	ISO9001
HS Code:	85299049
Transportation:	Ocean,Land,Air,EXPRESS
Port:	Shenzhen,Guangzhou,Shanghai

Product Description

DENEVO 3MP series (3MP CCTV Camera Basic Series ) series CCTV cameras are disigned as economical production with high cost perfomance. They are used widely in all kinds of fields such as school ,road ,hotel,hospital, shop and so on.

This series include popular bullet,box ,dome camera types and offer 8 configurations for user’s different requires.

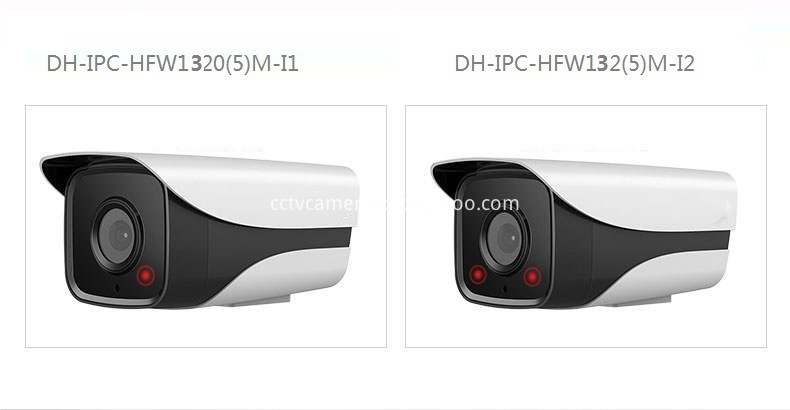

DH-IPC-HFW1320M-I1

DH-IPC-HFW1325M-I1

DH-IPC-HFW1320M-

DH-IPC-HFW1325M-I2

DH-IPC-HDW1320C

DH-IPC-HDW1325C

DH-IPC-HDBW1320R-S

DH-IPC-HDBW1325R-S

The prduct features as below

1. 3MP Series CCTV cameras take 1/3 inch COMS sensor,can get clearer images in low-light conditions.

2. Maximum frame rate output reach to 3 million (2048×1536) 25fps.

3. 3MP Series CCTV cameras support H.264 coding ,with feature of high compression ratio and low steam.

4.Maximum IR distance can reach to 50M.

5.Support corridor mode,WDR,3DNR,HLC,BLC, suitbale for different surveillance envrioment.

6. Support SMART H.264,can encode flexibly,apply to different bandwidth and storage.

7.Support DC12V/POE power supply, easy to engineering mount.

8.Support IP67 ingrees protection.

Specifications

DH-IPC-HFW1220M-I2

Image Sensor	1/3"CMOS
Effective Pixels	3MP
LED	I1 1 ,I2 2
Electronic Shutter Speed	Auto/Manual 1s~1/100000s
Minimum Illumination	0.002Lux(Color);0.0002Lux(BW);0Lux（OLUX）
Maxmium Infrated Range	I1 50M ,I2 80M
Day/Night	IR-CUT Auto
Scanning System	Progressive
Noise Reduction	3D DNR
Wide Dynamice Range	Support
Signal to Noise Ratio	>56dB
Gain Control	Auto/Manual
White Balance	Auto/Manual
Backlight Compensation Mode (BLD)	Support
HLC	Support
Focal Length	2.8mm/3.6mm/6mm/8mm
Lens Interface	M12
Lens Aperture	F1.6
Aperture Type	Fixed
Lens Type	Fixed
Minimum Focuing Distance	2.8mm:3m 3.6mm:4.4m 6mm:6.5m 8mm:7.1m
Field of View	2.8mm:10986.765 3.6mm:886850 6mm：544332 8mm：413325
Video Coding Standards	H.264;H.264H;H.264B;MJPEG
Bit Rate	H.264:8~8192Kbps
Frame Rate	50Hz:Main Steam (2048*1536 @ 25fps);Sub Steam(D1 @25fps)
Frame Rate	60Hz:Main Steam(2048*1536@ 25fps);Sub Steam(D1 @30fps)
Default Stream at Default Resolution	4096kbps(3M)
Image Settings	Brightness; Contrast; Sharpness. Saturation; Gamma
OSD Superposition	Time;Channel;Location;Picture
Mirror	Support
Record	Manual;Detection;Timing Priority Manual>Detection>Timing
Edage Storage	NAS;FTP;IMOU
Max. Users Access	20
Restore Default	One-click Restore
Web Viewer	IE7;IE8;IE9;IE10;Chrome8+;Firefox3.5+;Safari5+
User Management	Support Max 20 Users;Multi-levels User Administration
Safe Mode	Authorised User and Password;MAC Address Binding;HTTPS Encrytion;IEEE 802.1x;NAC
AI	Support Dynamic Detection, Occlusion Detection,Scene-change Detection
Privcy Masking	Off/On (4 Zone; Rectangle)
Corridor Mode	Support Two Mode 90°,270°
Network Interface	1;10/100M Ethernet Interface
Protocol	HTTP;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP
Interoperability	ONVIF;GB/T28181;CGI;PSIA;Imou
Power Supply	DC12V+POE（1325 Does not Support POE）
Power Consumption	Normal value 1.9W , Maximum value 4.6W
Operating Conditions	-40℃~+60℃
Operating Humidity	≤95%
Ingress Protection	IP67
Casing	Metal and Plastic
Dimensions	194mm×96mm×89mm
Net Weight	640g
Gross Weight	780g

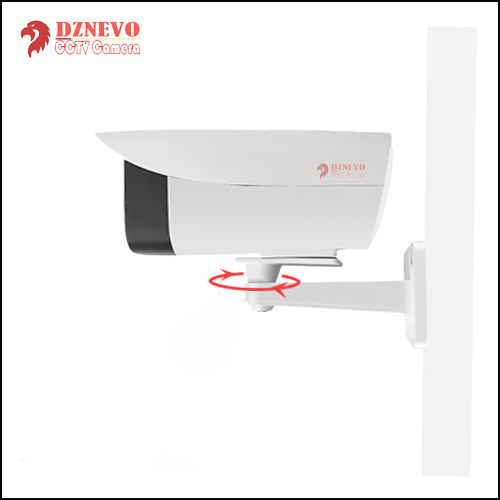

Installation	Wall Mount;Ceilling Mount
