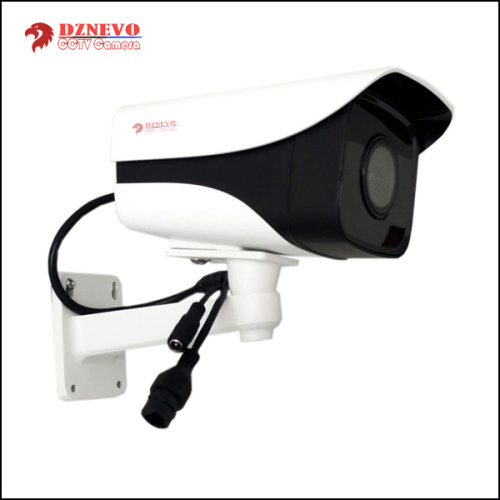

1.3MP HD DH-IPC-HFW2120M-I1 CCTV Cameras
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW, FCA, CPT, CIP
- Min. Order:
- 5 Set/Sets
- Min. Order:
- 5 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air, express
- Port:
- Shenzhen, Shanghai, Guangzhou
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen |
|---|---|
| Productivity: | 50000 sets per week |
| Supply Ability: | 200000 per month |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CPT,CIP |
| Certificate: | ISO9001 |
| HS Code: | 85299049 |
| Transportation: | Ocean,Land,Air,express |
| Port: | Shenzhen,Shanghai,Guangzhou |
Product Description
DENEVO 1.3MP series （ 1.3MP CCTV Camera Basic Series ） CCTV cameras are disigned as economical production with high cost perfomance. They are used widely in all kinds of fields such as school ,road ,hotel,hospital, shop and so on.
This series include popular bullet,box ,dome camera types and offer 8 configurations for user’s different requires.
DH-IPC-HFW2120M(-AS)-I1
DH-IPC-HFW2125M(-AS)-I1
DH-IPC-HFW2120M(-AS)-I2
DH-IPC-HFW2125M(-AS)-I2
DH-IPC-HFW2120M(-AS)-I4
DH-IPC-HFW2125M(-AS)-I4
DH-IPC-HDW2120C-A
DH-IPC-HDW2125C-A
DH-IPC-HDBW2120R-AS(S)
DH-IPC-HDBW2125R- AS(S)
The prduct features as below
1. 1.3MP Series CCTV cameras take 1/3 inch COMS sensor,can get clearer images in low-light conditions.
2. Maximum frame rate output reach to 3 million (1280x960) 30fps.
3. 1.3MP Series CCTV cameras support H.264 coding ,with feature of high compression ratio and low steam.
4.Maximum IR distance can reach to 50M.
5.Support corridor mode,WDR,3DNR,HLC,BLC, water marking encription, suitbale for different surveillance envrioment.
6. Support ROI,SMART H.264 encode flexibly,apply to different bandwidth and storage.
7.Support entered/exited ,tripwire, left or lost objects,scene-change detection.
8.Support 1 in&1out alarm , 1 in&1out audio,128G Micro SD Card.
9.Support DC12V/POE power supply, easy to engineering mount.
10.Support IP67 ingrees protection.
Specifications
| DH-IPC-HFW2120(5)M(-AS)-I1/DH-IPC-HFW2120(5)M(-AS)-I2 DH-IPC-HFW2120(5)M(-AS)-I4 | |
| Image Sensor | 1/3"CMOS |
| Effective Pixels | 1.3MP |
| LED | I1 1 ,I2 2,I4 4 |
| Electronic Shutter Speed | Auto/Manual 1s~1/100000s |
| Minimum Illumination | 0.01Lux(Color);0.001Lux(BW);0Lux（OLUX） |
| Maxmium Infrated Range | I1 50M ,I2 80M,I4 180M |
| Day/Night | IR-CUT Auto |
| Scanning System | Progressive |
| Noise Reduction | 3D DNR |
| Wide Dynamice Range | Support |
| Signal to Noise Ratio | >56dB |
| Gain Control | Auto/Manual |
| White Balance | Auto/Manual |
| Backlight Compensation Mode (BLD) | Support |
| HLC | Support |
| Focal Length | 3.6mm/6mm/8mm/16mm/25mm |
| Lens Interface | M12 |
| Lens Aperture | F2.1/F1.9/F1.8/F2.06/F2.45 |
| Aperture Type | Fixed |
| Lens Type | Fixed |
| Minimum Focuing Distance |
2.8mm:3m 3.6mm:4.4m 6mm:6.5m 8mm:7.1m |
| Field of View |
3.6mm 72* 53* 94 6mm 47* 35*59 8mm 35* 26* 46 16mm 17* 13* 22 25mm 11* 8* 14 |
| Audio Interface | Support |
| Audio Input | 1 channel (RAC port)（-AS Support） |
| Audio Output | 1 channel (RAC port)(（-AS Support）) |
| Audio Compression Standard | G.711a;G.711Mu;AAC |
| Audio Sample Rate | 8Kbps/16Kbps |
| Video Coding Standards | H.264;H.264H;H.264B;MJPEG |
| Bit Rate |
H.264:16~4096Kbps MJPEG:40~4096Kb/S
" |
| Frame Rate | 50Hz:Main Steam (1280*960@25fps);Sub Steam(704*576@25fps)； |
| 60Hz:Main Steam(1280*960@25fps);Sub Steam(704*480@30fps) | |
| Default Stream at Default Resolution | 2M |
| Alarm Interface | Support |
| Alarm Input | Two Channels（-AS Support） |
| Alarm Output | Two Channels（-AS Support） |
| Event Trigger | Suppoer No SD Card ,SD Storage Not Enough,SD Card error(-AS Support),Network disconnection,IP conflict,Motion Detection,Vedio occlusion,Tripwire Detection,Entered&Exited Dection,Scene Change Detection |
| Image Settings | Brightness; Contrast; Sharpness. Saturation; Gamma |
| OSD Superposition | Time;Channel;Location;Picture |
| Mirror | Support |
| Reverse Image | Support 90° ,270° |
| Hearbeat Machanism | Support |
| Record | Manual;Detection;Timing Priority Manual>Detection>Timing |
| SD Card | Support |
| Edage Storage | NAS;FTP;IMOU,Micro SD Card (Maximum 128G)(-AS Support),IMOU |
| Max. Users Access | 20 |
| Restore Default | One-click Restore |
| Web Viewer | IE7;IE8;IE9;IE10;Chrome8+;Firefox3.5+;Safari5+ |
| User Management | Support Max 20 Users;Multi-levels User Administration |
| Safe Mode | Authorised User and Password;MAC Address Binding;HTTPS Encrytion,IEEE 802.1x;NAC |
| AI | Support Dynamic Detection,Occlusion Detection,Scene-change Detection |
| Privcy Masking | Off/On (4 Zone; Rectangle) |
| Corridor Mode | Support |
| Network Interface | 1;10/100M Ethernet Interface |
| Protocol |
HTTP;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;SNMP;QoS;UPnP;NTP |
| Interoperability | ONVIF;GB/T28181;CGI;PSIA,Imou |
| Power Supply | DC12V+POE（2125 Does not Support POE） |
| Power Consumption | Normal value 1.1W , Maximum value5.7W |
| Operating Conditions | -30℃~+60℃ |
| Operating Humidity | ≤95% |
| Ingress Protection | IP67 |
| Casing | Metal and Plastic |
| Dimensions | 194mm×96mm×89mm |
| Net Weight | 640g |
| Gross Weight | 780g |
| Installation | Wall Mount;Ceilling Mount,Pan Mount |
