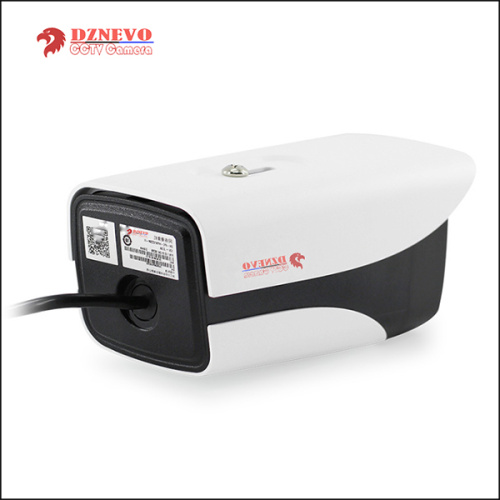

1.3MP HD DH-IPC-HFW2120M-I4 CCTV Cameras
- Payment Type:
- L/C, T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW, FCA, CPT, CIP
- Min. Order:
- 5 Set/Sets
- Min. Order:
- 5 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air, express
- Port:
- Shenzhen, Shanghai, Guangzhou
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen |
|---|---|
| Productivity: | 50000 sets per week |
| Supply Ability: | 200000 per month |
| Payment Type: | L/C,T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CPT,CIP |
| Certificate: | ISO9001 |
| HS Code: | 85299049 |
| Transportation: | Ocean,Land,Air,express |
| Port: | Shenzhen,Shanghai,Guangzhou |
Product Description
DENEVO 1.3MP series （ 1.3MP CCTV Camera Basic Series ）CCTV cameras are disigned as economical production with high cost perfomance. They are used widely in all kinds of fields such as school ,road ,hotel,hospital, shop and so on.
This series include popular bullet,box ,dome camera types and offer 8 configurations for user’s different requires.
DH-IPC-HFW2120M(-AS)-I1
DH-IPC-HFW2125M(-AS)-I1
DH-IPC-HFW2120M(-AS)-I2
DH-IPC-HFW2125M(-AS)-I2
DH-IPC-HFW2120M(-AS)-I4
DH-IPC-HFW2125M(-AS)-I4
DH-IPC-HDW2120C-A
DH-IPC-HDW2125C-A
DH-IPC-HDBW2120R-AS(S)
DH-IPC-HDBW2125R- AS(S)
The prduct features as below
1. 1.3MP Series CCTV cameras take 1/3 inch COMS sensor,can get clearer images in low-light conditions.
2. Maximum frame rate output reach to 3 million (1280x960) 30fps.
3. 1.3MP Series CCTV cameras support H.264 coding ,with feature of high compression ratio and low steam.
4.Maximum IR distance can reach to 120M.
5.Support corridor mode,WDR,3DNR,HLC,BLC, water marking encription, suitbale for different surveillance envrioment.
6. Support ROI,SMART H.264 encode flexibly,apply to different bandwidth and storage.
7.Support entered/exited ,tripwire, left or lost objects,scene-change detection.
8.Support 1 in&1out alarm , 1 in&1out audio,128G Micro SD Card.
9.Support DC12V/POE power supply, easy to engineering mount.
10.Support IP67 ingrees protection.
Specifications
DH-IPC-HFW2120(5)M(-AS)-I1/DH-IPC-HFW2120(5)M(-AS)-I2 DH-IPC-HFW2120(5)M(-AS)-I4
Sensor
1/3"CMOS
Effective Pixels
1.3MP
LED
I1
1 ,I2 2,I4 4
Electronic Shutter Speed
Auto/Manual
1s~1/100000s
Minimum Illumination
0.01Lux(Color);0.001Lux(BW);0Lux（OLUX）
Maxmium Infrated Range
I1
50M ,I2 80M,I4 180M
Day/Night
IR-CUT
Auto
Scanning System
Progressive
Noise Reduction
3D
DNR
Wide Dynamice Range
Support
Signal to Noise Ratio
>56dB
Gain Control
Auto/Manual
White Balance
Auto/Manual
Backlight Compensation Mode (BLD)
Support
HLC
Support
Focal Length
3.6mm/6mm/8mm/16mm/25mm
Lens Interface
M12
Lens Aperture
F2.1/F1.9/F1.8/F2.06/F2.45
Aperture Type
Fixed
Lens Type
Fixed
Minimum Focuing Distance
2.8mm:3m
3.6mm:4.4m
6mm:6.5m
8mm:7.1m
Field
of View
3.6mm 72* 53* 94
6mm 47* 35*59
8mm 35* 26* 46
16mm 17* 13* 22
25mm 11* 8* 14
Audio
Interface
Support
Audio
Input
1 channel (RAC
port)（-AS Support）
Audio
Output
1 channel (RAC
port)(（-AS Support）)
Audio
Compression Standard
G.711a;G.711Mu;AAC
Audio
Sample Rate
8Kbps/16Kbps
Video
Coding Standards
H.264;H.264H;H.264B;MJPEG
Bit Rate
H.264:16~4096Kbps MJPEG:40~4096Kb/S
"
Frame Rate
50Hz:Main
Steam (1280*960 25fps);Sub Steam(704*576 25fps)；
60Hz:Main Steam(1280*960 25fps);Sub
Steam(704*480 30fps)
Default Stream at Default Resolution
2M
Alarm Interface
Support
Alarm Input
Two
Channels（-AS Support）
Alarm Output
Two
Channels（-AS Support）
Event Trigger
Suppoer
No SD Card ,SD Storage Not Enough,SD Card error(-AS Support),Network
disconnection,IP conflict,Motion Detection,Vedio occlusion,Tripwire
Detection,Entered&Exited Dection,Scene Change Detection
Image Settings
Brightness;
Contrast; Sharpness. Saturation; Gamma
OSD Superposition
Time;Channel;Location;Picture
Mirror
Support
Reverse Image
Support
90° ,270°
Hearbeat Machanism
Support
Record
Manual;Detection;Timing Priority Manual>Detection>Timing
SD Card
Support
Edage Storage
NAS;FTP;IMOU,Micro
SD Card (Maximum 128G)(-AS Support),IMOU
Max. Users Access
20
Restore Default
One-click
Restore
Web Viewer
IE7;IE8;IE9;IE10;Chrome8+;Firefox3.5+;Safari5+
User Management
Support
Max 20 Users;Multi-levels User Administration
Safe Mode
Authorised
User and Password;MAC Address Binding;HTTPS Encrytion,IEEE 802.1x;NAC
AI
Support
Dynamic Detection,Occlusion Detection,Scene-change Detection
Privcy Masking
Off/On
(4 Zone; Rectangle)
Corridor Mode
Support
Network Interface
1;10/100M
Ethernet Interface
Protocol
HTTP;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;SNMP;QoS;UPnP;NTP
Interoperability
ONVIF;GB/T28181;CGI;PSIA,Imou
Power Supply
DC12V+POE（2125
Does not Support POE）
Power Consumption
Normal
value 1.1W , Maximum value5.7W
Operating Conditions
-30℃~+60℃
Operating Humidity
≤95%
Ingress Protection
IP67
Casing
Metal
and Plastic
Dimensions
194mm×96mm×89mm
Net Weight
640g
Gross Weight
780g
Installation
Wall
Mount;Ceilling Mount,Pan Mount
