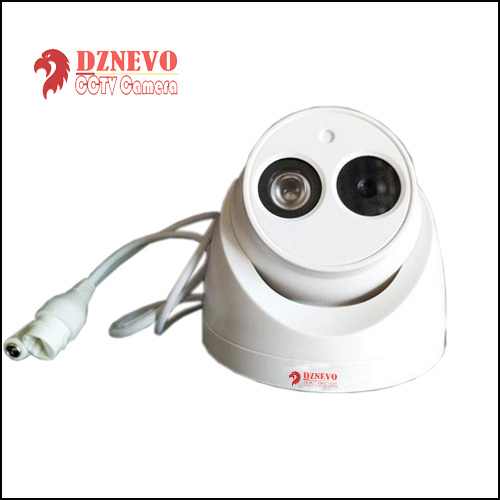

1.3MP HD DH-IPC-HDW2125C-A CCTV Cameras

Get Latest Price

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB, CFR, CIF, EXW, FCA, CPT, CIP

Min. Order:: 5 Set/Sets

Min. Order:: 5 Set/Sets

Delivery Time:: 15 Days

Transportation:: Ocean, Land, Air, express

Port:: Shanghai, Shenzhen, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	50000 sets per week
Supply Ability:	200000 per month
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB,CFR,CIF,EXW,FCA,CPT,CIP
Certificate:	ISO9001
HS Code:	85299049
Transportation:	Ocean,Land,Air,express
Port:	Shanghai,Shenzhen,Guangzhou

Product Description

DENEVO 1.3MP series( 1.3MP CCTV Camera Basic Series ) CCTV cameras are disigned as economical production with high cost perfomance. They are used widely in all kinds of fields such as school ,road ,hotel,hospital, shop and so on.

This series include popular bullet,box ,dome camera types and offer 8 configurations for user’s different requires.

DH-IPC-HFW2120M(-AS)-I1

DH-IPC-HFW2125M(-AS)-I1

DH-IPC-HFW2120M(-AS)-I2

DH-IPC-HFW2125M(-AS)-I2

DH-IPC-HFW2120M(-AS)-I4

DH-IPC-HFW2125M(-AS)-I4

DH-IPC-HDW2120C-A

DH-IPC-HDW2125C-A

DH-IPC-HDBW2120R-AS(S)

DH-IPC-HDBW2125R- AS(S)

The prduct features as below

1. 1.3MP Series CCTV cameras take 1/3 inch COMS sensor,can get clearer images in low-light conditions.

2. Maximum frame rate output reach to 3 million (1280x960) 30fps.

3. 1.3MP Series CCTV cameras support H.264 coding ,with feature of high compression ratio and low steam..

4.Maximum IR distance can reach to 50M.

5.Support corridor mode,WDR,3DNR,HLC,BLC, water marking encription, suitbale for different surveillance envrioment.

6. Support ROI,SMART H.264 encode flexibly,apply to different bandwidth and storage.

7.Support entered/exited ,tripwire, left or lost objects,scene-change ,loitering detection.

8.Support DC12V/POE power supply, easy to engineering mount.

9. Support MIC.

8.Support IP67 ingrees protection.

Specifications

DH-IPC-HDW2120C-A/DH-IPC-HDW2125C-A
Image Sensor	1/3"CMOS
Effective Pixels	1.3MP
Ajust Angle	Pan 0°～360°;Tilt:0°～78°;Rotation 0°～360°
LED	1
Electronic Shutter Speed	Auto/Manual 1s~1/100000s
Minimum Illumination	0.01Lux F1.2(Color);0.07 F1.2Lux(BW);0 F1.2Lux（OLUX）
Maxmium Infrated Range	50M
Day/Night	IR-CUT Auto
Scanning System	Progressive
Noise Reduction	3D DNR
Wide Dynamice Range	Support
Signal to Noise Ratio	>56dB
Gain Control	Auto/Manual
White Balance	Auto/Manual
Backlight Compensation Mode (BLD)	Support, Zone optional
HLC	Support
Focal Length	2.8mm;3.6mm;6mm;8mm
Lens Interface	M12
Lens Aperture	F2.2/F2.1/F1.9/F1.8
Aperture Type	Fixed
Lens Type	Fixed
Field of View	2.8mm: 125°94°67° 3.6mm: 94°71°52° 6mm: 58°46°36° 8mm: 45°36°27°
MIC	Support
Video Coding Standards	H.264;H.264H;H.264B;MJPEG
Bit Rate	4kbps～32Mbps
Frame Rate	50Hz:Main Steam (1280*960 25fps);Sub Steam(704×576 25fps)
Frame Rate	60Hz:Main Steam1280*720 25fps);Sub Steam(704×576 25fps)
Default Stream at Default Resolution	2M
Event Trigger	Motion Detection,Vedio occlusion,Network disconnection,IP conflict,Unauthorized Access
Image Settings	Brightness; Contrast; Sharpness. Saturation; Gamma
OSD Superposition	Time;Channel;Location;Picture
Mirror	Support
Reverse Image	Support 90° 180° 270°
Heartbeat Mechanism	Support
Record	Manual;Detection;Timing Priority Manual>Detection>Timing
Edage Storage	NAS;FTP;IMOU
Max. Users Access	20
Restore Default	One-click Restore
Web Viewer	IE7;IE8;IE9;IE10;Chrome8+;Firefox3.5+;Safari5+
User Management	Support Max 20 Users,Multi-levels User Administration
Safe Mode	Authorised User and Password;MAC Address Binding;HTTPS Encrytion;IEEE 802.1x;NAC
AI	Support Dynamic Detection ,Occlusion Detection
Privcy Masking	Off/On (4 Zone Rectangle)
Corridor Mode	Support
Network Interface	1;10/100M Ethernet Interface
Protocol	HTTP;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;SNMP;QoS;UPnP;NTP
Interoperability	ONVIF;GB/T28181;CGI;PSIA;Imou
Power Supply	DC12V+POE（2125 Does not Support POE）
Power Consumption	Normal value 1.7W, Maximum value 3.7W When IR LED 0pen
Operating Conditions	-30℃~+60℃
Operating Humidity	≤95%
Ingress Protection	IP67
Casing	Metal and Plastic
Dimensions	φ110mm×95mm
Net Weight	320g
Installation	Wall Mount;Ceilling Mount;Cloumn Mount
