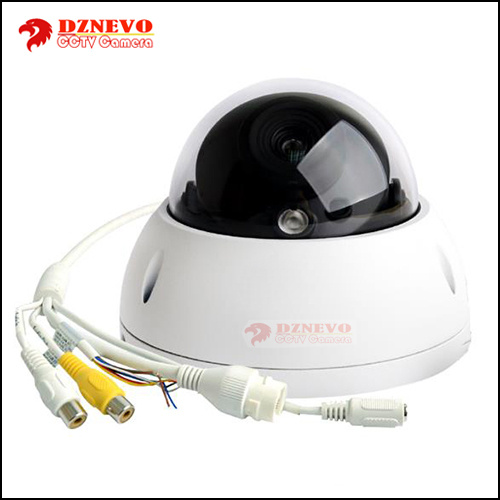

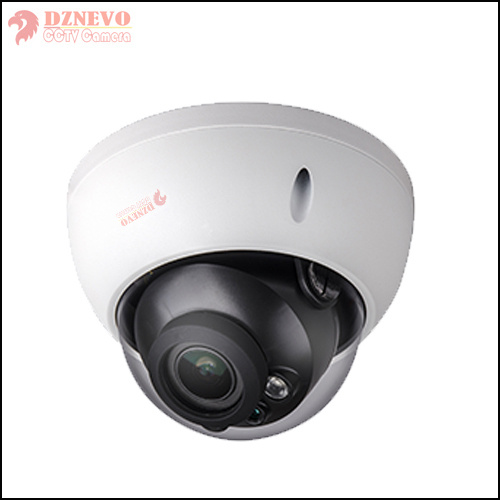

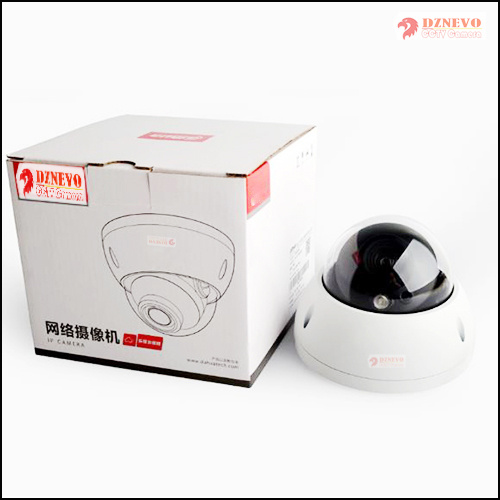

1.0MP HD DH-IPC-HDBW1025R CCTV Cameras

USD21

≥5 Set/Sets

Payment Type:: L/C, T/T, Paypal, Money Gram, Western Union

Incoterm:: FOB, CFR, CIF, EXW, FCA, CPT, CIP

Min. Order:: 5 Set/Sets

Min. Order:: 5 Set/Sets

Delivery Time:: 15 Days

Transportation:: Ocean, Land, Air, express

Port:: Shenzhen, Shanghai, Chongqing

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	50000 sets per week
Supply Ability:	200000 per month
Payment Type:	L/C,T/T,Paypal,Money Gram,Western Union
Incoterm:	FOB,CFR,CIF,EXW,FCA,CPT,CIP
Certificate:	ISO9001
HS Code:	85299049
Transportation:	Ocean,Land,Air,express
Port:	Shenzhen,Shanghai,Chongqing

Product Description

DENEVO 1MP series(1MP CCTV Camera Basic Series ) CCTV cameras are disigned as economical production with high cost perfomance. They are used widely in all kinds of fields such as school ,road ,hotel,hospital, shop and so on.

This series include popular bullet,box ,dome camera types and offer 8 configurations for user’s different requires.

DH-IPC-HFW1025B

DH-IPC-HFW1020B

DH-IPC-HFW1025D

DH-IPC-HFW1020D

DH-IPC-HDW1025C

DH-IPC-HDW1020C

DH-IPC-HDBW1020R

DH-IPC-HDBW1025R

The prduct features as below

1. Maximum frame rate output reach to 1 million (1280*720) 30fps.

2.1MP Series CCTV cameras take 1/4 inch COMS sensor,can get clearer images in low-light conditions.

3. 1MP Series CCTV cameras support H264 coding ,with feature of high compression ratio and low steam.

4.Maximum IR distance can reach to 30M.

5.Support corridor mode,WDR,3DNR,HLC,BLC,digtal watermaking encryption, suitbale for different surveillance envrioment.

6.Support ROI ,SMART H.264,can encode flexibly,apply to different bandwidth and storage.

7.Support DC12V/POE power supply, easy to engineering mount.

8.Support IP67 K10 ingrees protection.

Specifications

DH-IPC-HDBW1020R (2)

DH-IPC-HDBW1025R
Image Sensor	1/4"CMOS
Effective Pixels	1MP
Pan/Tilt/Rotation Range	Pan:0°～355°;Tilt:0°～75°;Rotation 0°～355°
LED	1
Electronic Shutter Speed	Auto/Manual 1s~1/100000s
Minimum Illumination	0.01Lux(Color);0.001Lux(BW);0Lux（OLUX）
Maxmium Infrated Range	30M
Day/Night	IR-CUT Auto
Scanning System	Progressive
Noise Reduction	3D DNR
Wide Dynamice Range	Support
Signal to Noise Ratio	>56dB
Gain Control	Auto/Manual
White Balance	Auto/Manual
Backlight Compensation Mode (BLD)	Support, Zone optional
HLC	Support
Focal Length	2.8mm/3.6mm/6mm
Lens Interface	M12
Lens Aperture	F2.5/F2.5/F2.6
Aperture Type	Fixed
Lens Type	Fixed
Field of View	3.6mm:67°59°33°;
	2.8mm:81°70.5°39.5° 6mm 423721
	6mm:42°37°21°;
Video Coding Standards	H.264;H.264B;H.264H;MJPEG
Bit Rate	5-5120Kb/s
Frame Rate	50Hz:Main Steam (1280*720@25fps);Sub Steam(704×576@25fps)；
Frame Rate	60Hz:Main Steam(1280*720@30fps);Sub Steam(704×480@30fps)
Default Stream at Default Resolution	2M
Abnormality Detection	Support dynamic Detection ;Occlusion Detection;Network disconnection;IP Conflict;Unauthorized Access
Image Settings	Brightness; Contrast; Sharpness. Saturation; Gamma
OSD Superposition	Time;Channel;Location;Picture
Mirror	Support
Heartbeat Mechanism	Support
Record	Manual;Detection;Timing ;Alarm; Priority Manual>Alarm>Detection>Timing
Edage Storage	NAS;FTP;IMOU
Max. Users Access	20
Restore Default	One-click Restore
Web Viewer	IE7;IE8;IE9;IE10;Chrome8+;Firefox3.5+;Safari5+
User Management	Support Max 20 Users,Multi-levels User Administration
Safe Mode	Authorised User and Password;MAC Address Binding;HTTPS Encrytion;IEEE 802.1x;NAC
AI	Support Dynamic Detection Occlusion Detection
Privcy Masking	Off/On (4 Zone Rectangle)
Corridor Mode	Support 90°and 270°
Network Interface	1;10/100M Ethernet Interface
Protocol	HTTP;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;SNMP;QoS;UPnP;NTP
Interoperability	ONVIF;GB/T28181;CGI;PSIA;Imou
Power Supply	DC12V+POE（1025 Does not Support POE）
Power Consumption	Normal1.3W Maximum 6.3W
Operating Conditions	﹣30℃～﹢60℃
Operating Humidity	≤95%
Ingress Protection	IP67,K10
Casing	Metal
Dimensions	Φ122mm×89mm
Net Weight	300g
Gross Weight	540g
Installation	Wall Mount;Ceilling Mount;Column Mount,Pit Mounted
