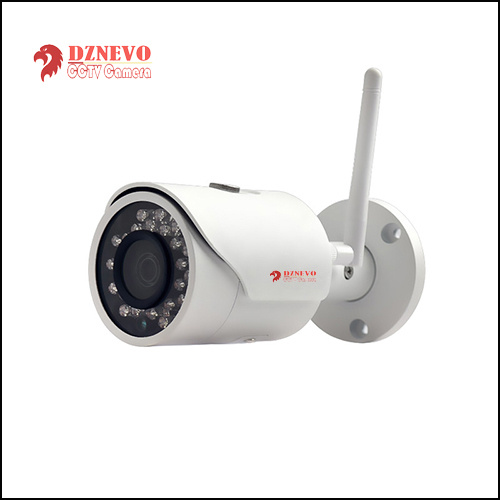

3MP HD DH-IPC-HFW2325S-W CCTY Cameras
-
USD32.5≥5 Set/Sets
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW, CPT, CIP
- Min. Order:
- 5 Set/Sets
- Min. Order:
- 5 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air, express
- Port:
- Shenzhen, Shanghai, Guangzhou
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen |
|---|---|
| Productivity: | 50000 sets per week |
| Supply Ability: | 200000 per month |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW,CPT,CIP |
| Certificate: | ISO9001 |
| HS Code: | 85299049 |
| Transportation: | Ocean,Land,Air,express |
| Port: | Shenzhen,Shanghai,Guangzhou |
Prduct Description
Features:
1.The DH-IPC-HFW2325S-W CCTV Camera takes 3MP CMOS imported image sensors.
2.The Frame rate out can reach to (2304x1296)20fps.
3.Support H.264 High profile、H.264 Main profile、H.264 Baseline、MJPEG
4.Support corridor mode.
5.Support WDR, 3D DNR, HLC,BLC,suitable for different scene.
6.Take high performance IR LED with anti-light decay , can work during day and light.
7.Support DC12V±25% WDR power supply ,can resist power fluctuations.
8.Support dynamic detection ;occlusion detection;network disconnection;IP conflict;
9.IP 67 and K10 protection grade

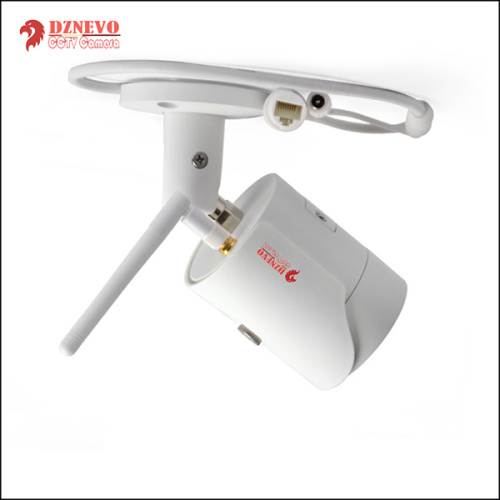

10. Easy to installate with 360 mount bracket ,can check anywhere.
11.Support Wifi and SD card.
Application Scene
Any scene without net but need security requirments with super HD images , like finance, telecom, shop, supper market,hotel,govermant,school,airport ,manufacture etc.
Product details
Specifications
DH-IPC-HFW2325S
Imager
Sensor
1/3' CMOS
Effective
Pixels
2304*1536
Adjust
angle
Pan:0°～360°; Tilt:0°～90°;
Rotation 0°～360°
Shutter
Speed
1/3s~1/30000s;Manual/Auto
IR
0.
01Lux F1.2(color);0.01Lux F1.2(BW);0Lux（LUX）
ICR
50M
Day
and Night
IR-CUT Auto
Scanning
System
Progressive
DNR
3D DNR
WDR
Support
SNR
＞56dB
Gain
control
Manual/Auto
White
balance
Manual/Auto
BLC
Support,region
HLC
Support
Focal
Length
2.8mm/3.6mm/6mm
Lens
Interface
M12
Lens
Aperture
F2.0/F2.1/F2.01
Aperture
Type
F2.0/F2.1/F2.01
Lens
Type
Manual
Field
of View
116.14°* 99.52°* 54.48°
91°* 77°* 41.6°
53.43°* 43.2°* 32.62°
Video
Compression Stard
H.264;H.264H;H.264B;MJPEG
Video
Bite
32K ~ 10Mbps（H.264）/48K ~
12Mbps（MJPEG）
Frame
Bite
PAL：Main
Steam(1280x960@25fps),Sub steam VGA@25fps)
NSTC：Main
Steam(1280x960@30fps),Sub steam(VGA@30fps)
Default
Stream at Default Resolution
2048kbps（1080P）
Abnormality
Detection
Suppoer No SD Card ,SD Storage
Not Enough,SD Card error,Network disconnection,IP conflict,Motion
Detection,Vedio Occlusion,Motion Detection,Vedio, Occlusion,Audio Abnormality
Detection
Settiings
Brightness; Contrast;
Sharpness. Saturation; Gamma
OSD
Superposition
Time;Channel;Location;Picture
Mirror
Support
Rollover
Support
Heart
beat mechanism
Support
Record
Manual;Detection;Timing;
Alarm Priority
Manual>Alarm>Detection>Timing
Edge
Storage
Micro SD Card (Maximum
128G);NAS;FTP
Max.
Users Access
20
Restore
Default
Support One-Click Restore
Web
Viewer
IE7;IE8;IE9;IE11;Firefox3.5+;Safari5+
User
Management
Support Max 20
Users,Multi-levels User Administration
SD
Card
Support
Star
N/A
MIC
N/A
WIFI
Support
Safe
Mode
Authorised User and
Password;MAC Address Binding;HTTPS Encrytion; NAC
Ultra-low
stream
1080P:2Mbps
Privcy
Masking
Off/On (4 Zone Rectangle)
Corridor
Mode
Support
Wireless
Network Standard
IEEE802.11b,802.11g,802.11n
Frequency
Range
2.4G~2.4835GHZ
Safe
Mode
64/128-bit
WEP,WPA/WPA2,WPA-PSK/WPA2-PSK,WPS
Transmission
Rate
11b:11Mbps 11g：54Mbps 11n: Max
Rate 150Mbps
Transmission
Distance
80M
Network
Interface
100/1000M Ethernet Interface
Protocol
HTTP;HTTPS;TCP;IPV4/IPV6;UDP;RTSP;ICMP;RTP;DHCP;NTP;IGMP;ARP;DNS;DDNS(Dahua/CN99/NO-IP/Dyndns/QUICK
DDNS;SMTP;UPNP;Bonjour;Qos;Multicast;FTP;Web Server;Multicast
Interoperability
ONVIF;CGI;IMOU;28181
Power
Supply
DC12V
Power
Consumption
4.61W /(IR LED ON ,ICR Change)
Operating
Conditions
-10℃~+50℃
Operating
Humidity
≤95%
Ingress
Protection
IP67;
Casing
Meatal
Demention
Φ70mm×165mm
G.W
490g
