H.265 24HDD 160ch NVR TC-R324160
- Payment Type:
- L/C, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW, FCA
- Min. Order:
- 5 Set/Sets
- Min. Order:
- 5 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Tianjin, Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Tianjin |
|---|---|
| Productivity: | 50000 sets per week |
| Supply Ability: | 200000 per month |
| Payment Type: | L/C,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW,FCA |
| Certificate: | ISO9001 CE FCC SGS |
| HS Code: | 85299049 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Tianjin,Shanghai |
Features
HD Input
• S+265/H.265/H.264 video formats
• Connectable to third-party network cameras
• Up to 160 IP cameras can be connected
• Supports live view, storage and playback of connected camera at up to 12MP resolution
HD Output
• HDMI and VGA independent outputs
• HDMI Video output at up to 4K (3840 × 2160) resolution
HD Storage
• 24 SATA interfaces connectable for recording and backup on the front panel, up to 10TB for each HDD
• S+265 compression effectively reduces the storage space and costs by up to 75%
HD Transmission
• 4×RJ45 self-adaptive 10/100/1000 Mbps network interfaces
Functions
• Centralized management of IP cameras, including configuration, parameter import/export, real-time information display, two-way audio, upgrade, etc.
• Connectable to smart IP cameras from Tiandy, recording, playing back and backing up of VCA alarms can be realized
• VCA detection alarm is supported
• Smart search for the selected area in the video and smart playback to make the playback efficiency
• Web6 supports plug-in free browsing and can preview videos on all browsers
Product Details
Specifications
| Input |
|
| Video Input | 160-ch |
| Max Resolution | 12MP |
| Two-way Audio Input | 1-ch, 3.5mm |
| Bandwidth | Income 1280Mbps; Outcome 640Mbps |
| Output |
|
| HDMI/VGA Output | HDMI: 2-ch, 3840×2160, 2560×1600, 2560×1440, 1920×1080, 1280×720, 800×600, 1024×768, 1366×768, 1440×900, 1280×800 |
| VGA:1-ch, 1920×1080, 1600×1200, 1280×1024, 1280×720, 800×600, 1024×768, 1366×768, 1440×900, 1280×800 | |
| Screen Split | 1/3/4/6/8/9/10/13/16/20/25/36/40/64 |
| Audio Output | 1×3.5mm |
| Decoding |
|
| Decoding Format | S+265/H.265/H.264 |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Preview Capability | 3×12MP, 5×4K, 8×5MP, 10×4MP, 20×1080P, 40×720P, 80×4CIF |
| Synchronous Playback | 3×12MP, 5×4K, 8×5MP, 10×4MP, 16×1080P, 16×720P |
| Records Encryption | Yes |
| Hard Disk |
|
| SATA | 24 SATA interfaces for 24 HDDs |
| Capacity | Up to 10TB for each HDD |
| eSATA Interface | 1 SATA interface |
| Array Type | JBOD,RAID0/1/5/6/10/50/60 |
| External Interface |
|
| Network Interface | 4×RJ45 self-adaptive 10/100/1000 Mbps network interfaces |
| USB Interface | 2×USB 2.0, 2×USB 3.0 |
| Serial Interface | 2×RS485, 1×RS232 |
| Alarm In/Out | 8/4 |
| Reliablity |
|
| N+M Hot Standby | Yes |
| ANR | Yes |
| General |
|
| Web Version | Web6 |
| Language | English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebraism (UI) |
| Operating Conditions | 0℃～55℃, 10%~90% RH |
| Power Supply | AC100~240V, 50/60HZ |
| Consumption (without HDD) | ≤100W (without HDD) |
| Chassis | 4U |

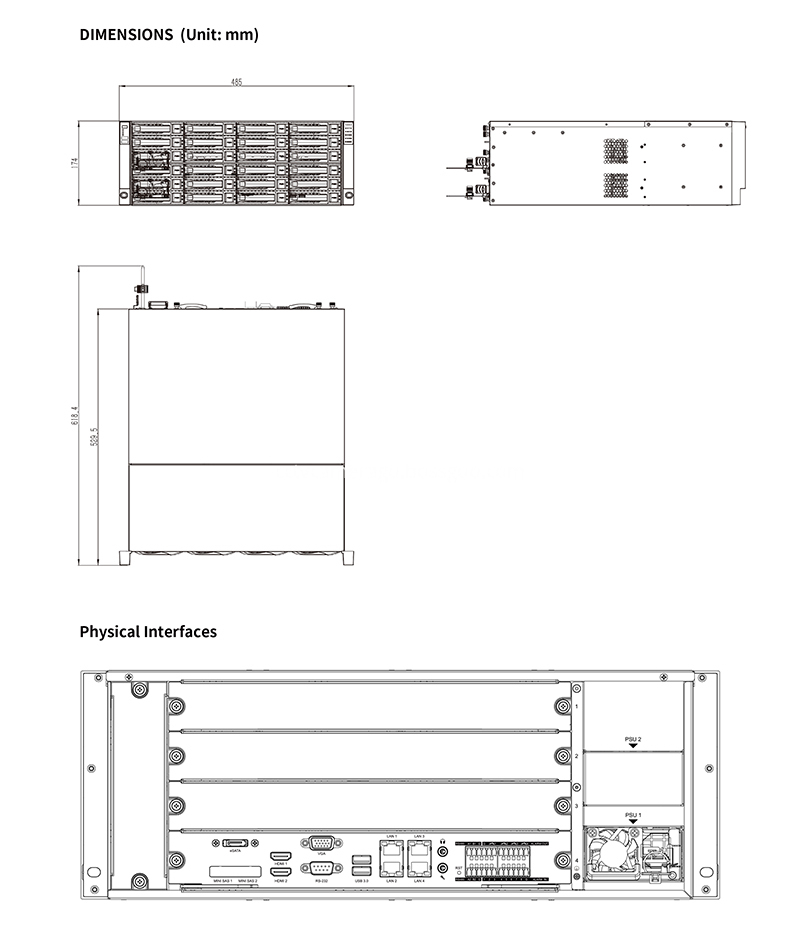

| Dimensions | 542×446.6×173.8 mm (21.34×17.58×6.84 inch) |
| Weight (without HDD) | 17Kg (37.48lb) |
Related Products
TC-R31680 E/B/N
TC-R324160E/B/N/C/V2.0
TC-R324320E/B/N/V2.0
Cases Apprecitations
To the customer’s requirements for safety, the property developer worked with system integrator to install a full Tiandy surveillance solution. This included 252pcs Tiandy starlight VF bullets and 48pcs starlight VF domes, 2pcs Tiandy 320-ch super NVR as well as Tiandy Easy7 VMS video management software.
To provide 24hr colorful image of high quality, the new cameras supported by TVP algorithm are equipped with video analytics that include loitering detection, automatically detecting people who lingers in an area for a certain time and alerting security operators. HD Dome cameras has discouraged the attempts to vandalize them, and it expands coverage to areas where surveillance was once limited because of tough viewing angles. The extra Tiandy super NVR with dual power supply can be prepared as an extra NVR, with ANR function which can store footage in the camera in case of sudden outage. With these multiple protections the system can keep running in a total secure environment.
