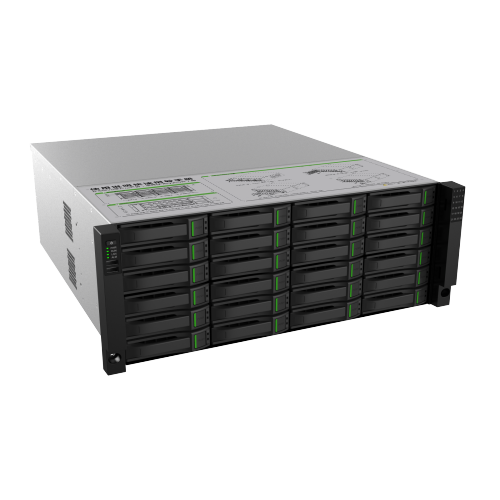

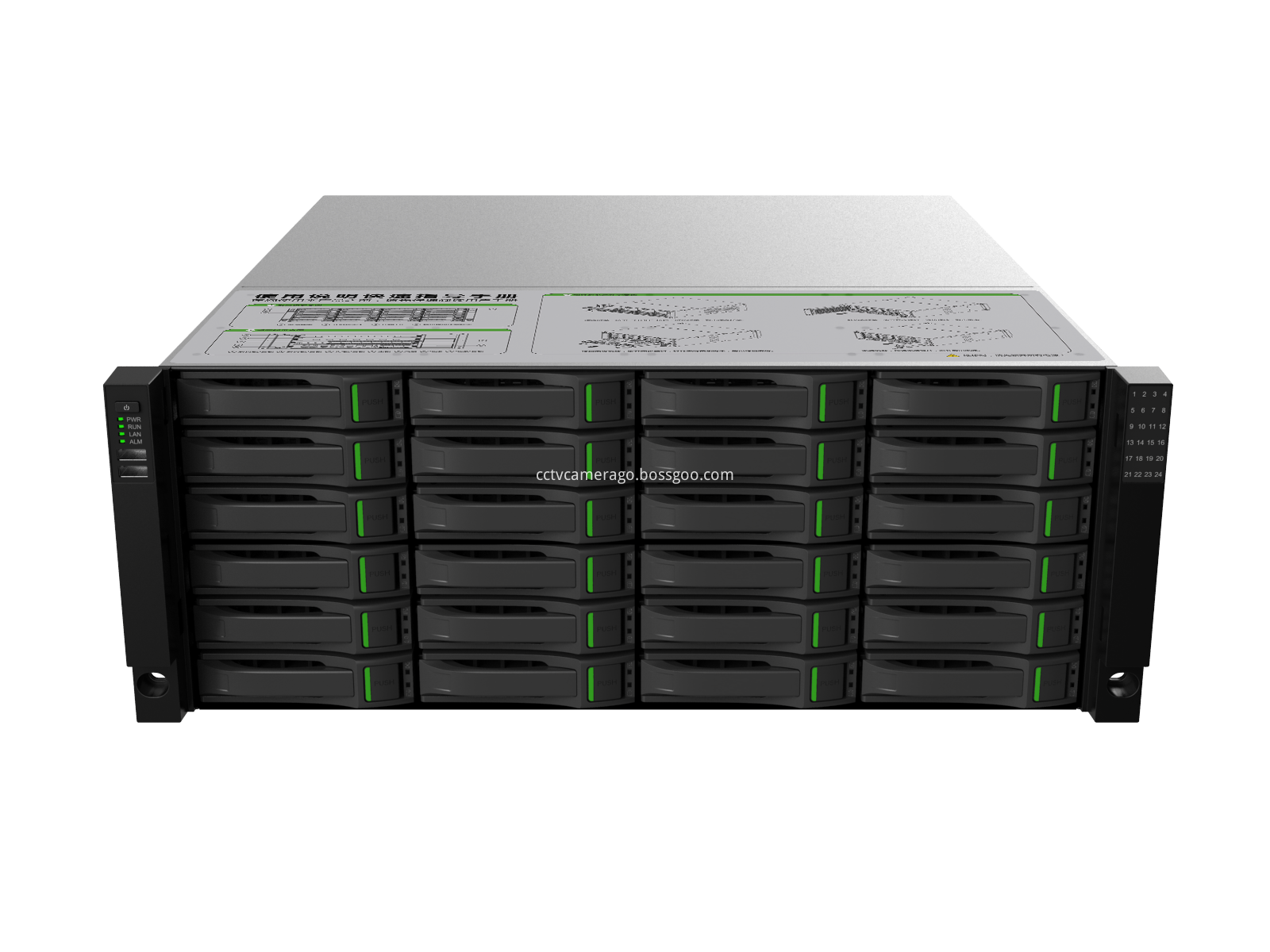

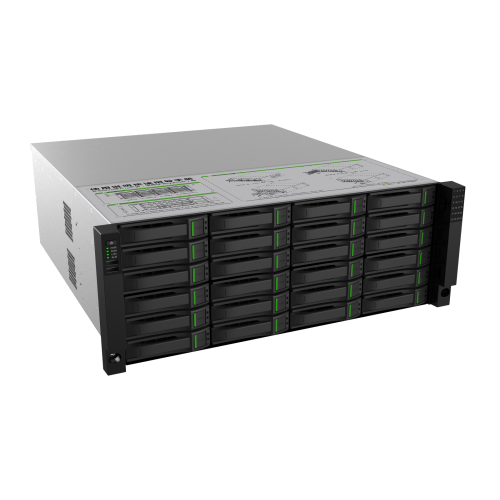

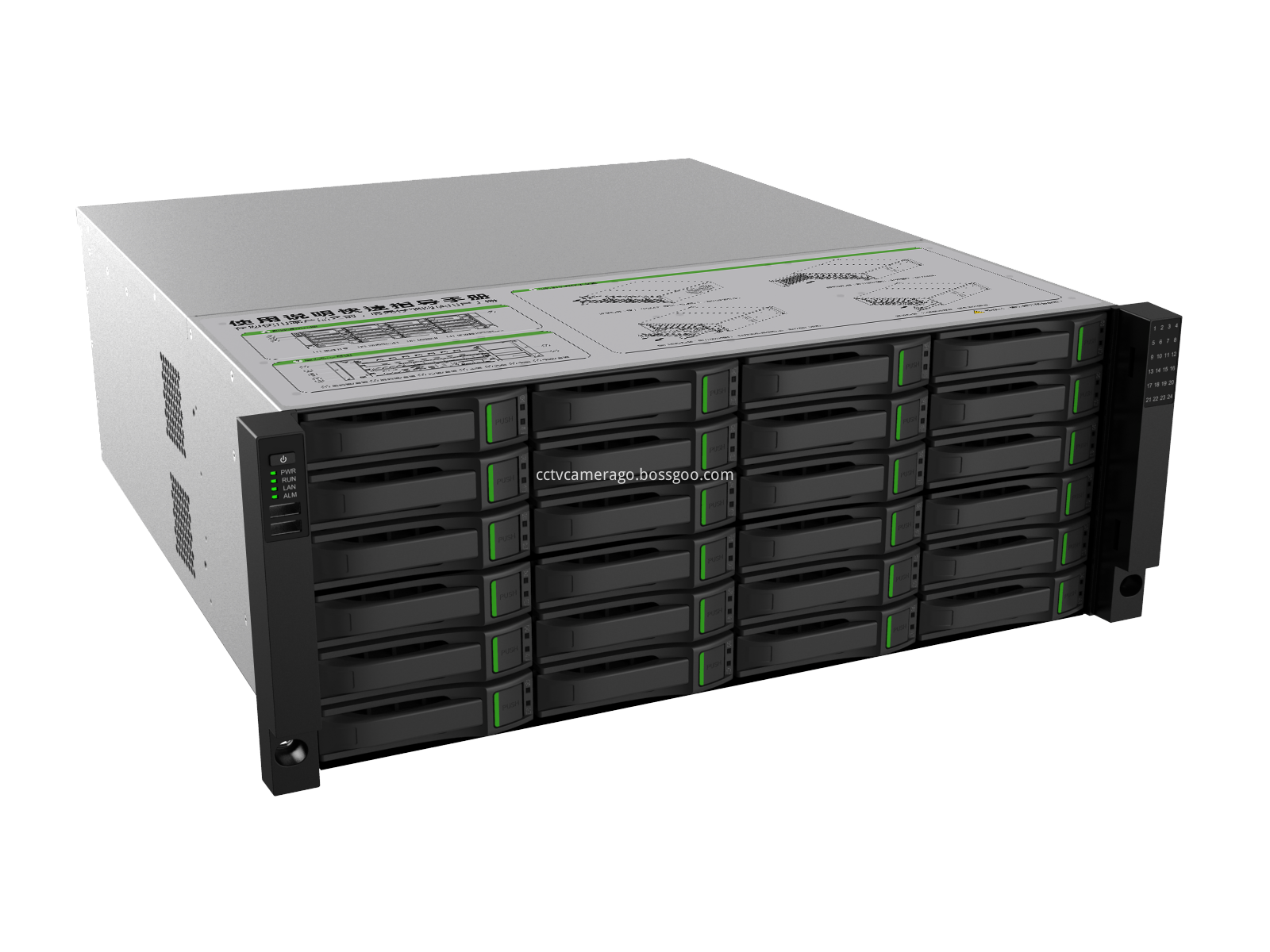

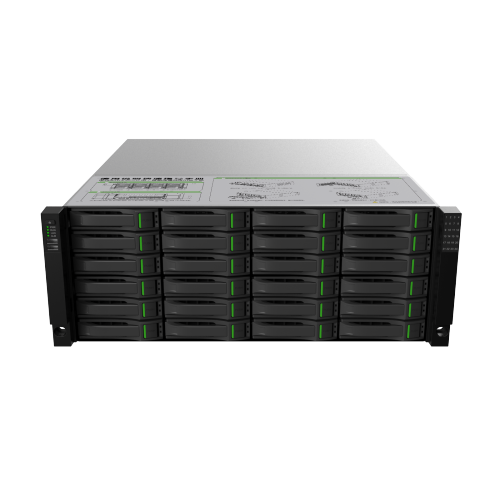

H.265 24HDD 320ch NVR TC-R324320
- Payment Type:
- L/C, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW, FCA
- Min. Order:
- 5 Set/Sets
- Min. Order:
- 5 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Tianjin, Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Tianjin |
|---|---|
| Productivity: | 50000 sets per week |
| Supply Ability: | 200000 per month |
| Payment Type: | L/C,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW,FCA |
| Certificate: | ISO9001 CE FCC SGS |
| HS Code: | 85299049 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Tianjin,Shanghai |
Features
HD Input
• S+265/H.265/H.264 video formats
• Connectable to third-party network cameras
• Up to 320 IP cameras can be connected
• Supports live view, storage and playback of connected camera at up to 12MP resolution
HD Output
• 2×HDMI and 1×VGA independent outputs
• HDMI Video output at up to 4K (3840 × 2160) resolution
HD Storage
• 24 SATA interfaces connectable for recording and backup on the front panel
• S+265 compression effectively reduces the storage space and costs by up to 75%
HD Transmission
• 4×RJ45 self-adaptive 10/100/1000 Mbps network interfaces, 4×fiber optics 1000 Mbps network interfaces
Functions
• Centralized management of IP cameras, including configuration, parameter import/export, real-time information display, two-way audio, upgrade, etc.
• Connectable to smart IP cameras from Tiandy, recording, playing back and backing up of VCA alarms can be realized
• VCA detection alarm is supported
• Smart search for the selected area in the video and smart playback to make the playback efficiency
• Web6 supports plug-in free browsing and can preview videos on all browsers
Product Details
Specifications
Input
Video Input
320-ch
Max Resolution
12MP
Two-way Audio Input
1-ch, 3.5mm
Bandwidth
Income 1280Mbps; Outcome 640Mbps
Output
HDMI/VGA Output
HDMI: 2-ch, 3840×2160, 2560×1600, 2560×1440, 1920×1080, 1280×720, 800×600, 1024×768, 1366×768, 1440×900, 1280×800
VGA:1-ch, 1920×1080, 1600×1200, 1280×1024, 1280×720, 800×600, 1024×768, 1366×768, 1440×900, 1280×800
Screen Split
1/3/4/6/8/9/10/13/16/20/25/36/40/64
Audio Output
1×3.5mm
Decoding
Decoding Format
S+265/H.265/H.264
Recording Resolution
12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Preview Capability
3×12MP, 5×4K, 8×5MP, 10×4MP, 20×1080P, 40×720P, 80×4CIF
Synchronous Playback
3×12MP, 5×4K, 8×5MP, 10×4MP, 16×1080P, 16×720P
Records Encryption
Yes
Hard Disk
SATA
24 SATA interfaces for 24 HDDs
Capacity
Up to 10TB for each HDD
eSATA Interface
1 SATA interface
Array Type
JBOD,RAID0/1/5/6/10/50/60
External Interface
Network Interface
4×RJ45 self-adaptive 10/100/1000 Mbps network interfaces, 4×fiber optics 1000 Mbps network interfaces
USB Interface
2×USB 2.0, 2×USB 3.0
Serial Interface
10×RS485, 1×RS232
Alarm In/Out
44/22
Reliablity
N+M Hot Standby
Yes
ANR
Yes
General
Web Version
Web6
Language
English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebraism (UI)
Operating Conditions
0℃～55℃, 10%~90% RH
Power Supply
AC100~240V, 50/60HZ
Consumption (without HDD)
≤100W (without HDD)
Chassis
4U

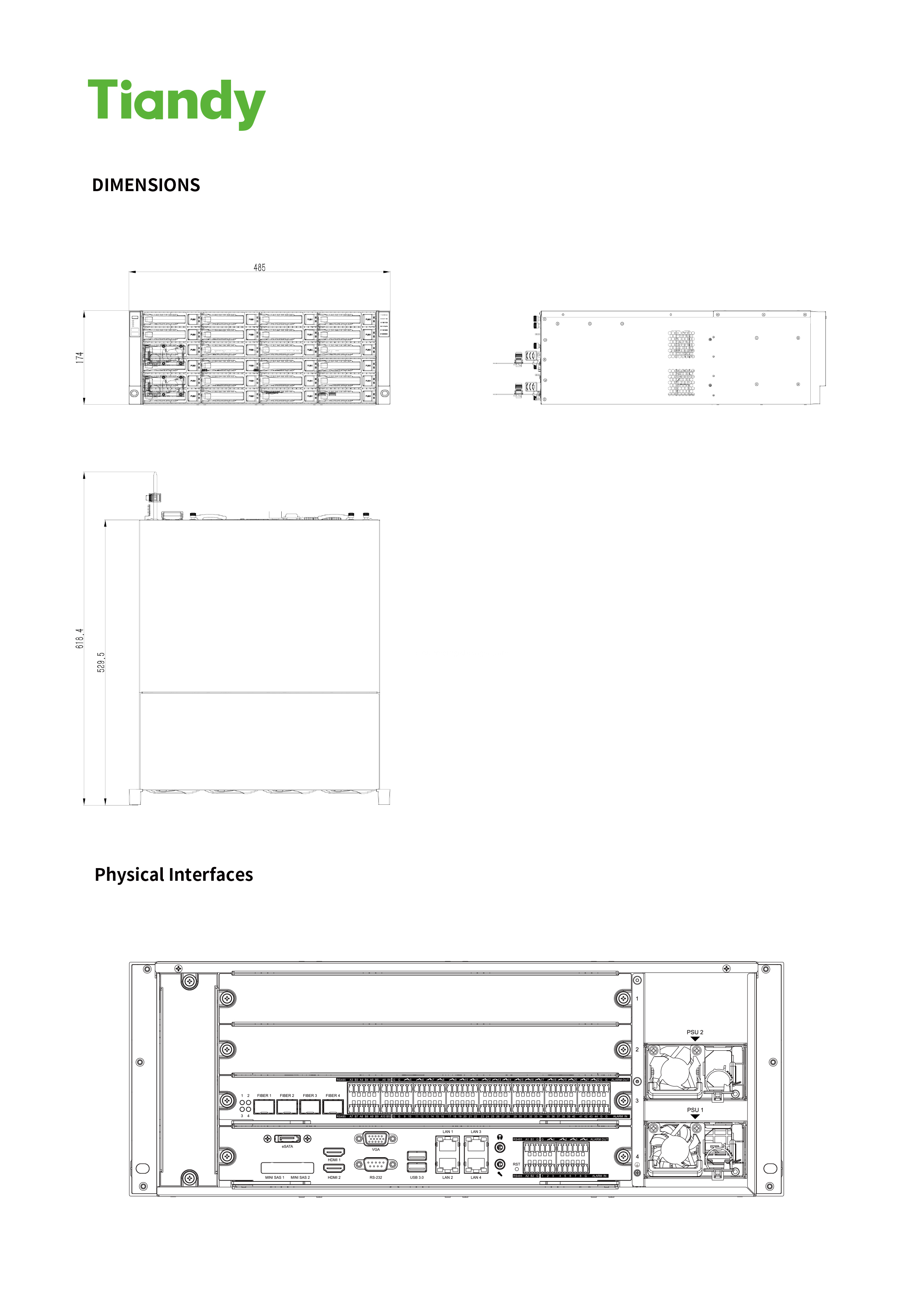

Dimensions
542×446.6×173.8 mm (21.34×17.58×6.84 inch)
Weight (without HDD)
21Kg (46.3lb)
Related Products
TC-R31680 E/B/N
TC-R324160E/B/N/C/V2.0
TC-R324320E/B/N/V2.0
Cases Apprecitations
To the customer’s requirements for safety, the property developer worked with system integrator to install a full Tiandy surveillance solution. This included 252pcs Tiandy starlight VF bullets and 48pcs starlight VF domes, 2pcs Tiandy 320-ch super NVR as well as Tiandy Easy7 VMS video management software.
To provide 24hr colorful image of high quality, the new cameras supported by TVP algorithm are equipped with video analytics that include loitering detection, automatically detecting people who lingers in an area for a certain time and alerting security operators. HD Dome cameras has discouraged the attempts to vandalize them, and it expands coverage to areas where surveillance was once limited because of tough viewing angles. The extra Tiandy super NVR with dual power supply can be prepared as an extra NVR, with ANR function which can store footage in the camera in case of sudden outage. With these multiple protections the system can keep running in a total secure environment.
