IPC-HFW7442H-Z AI CCTV Bullet Cameras Face Recognition

USD450

1-4 Set/Sets
USD399

5-9 Set/Sets
USD379

10-49 Set/Sets
USD359

50-499 Set/Sets
USD290

≥500 Set/Sets

Payment Type:: L/C, T/T, Paypal, Money Gram, Western Union

Incoterm:: FOB, CFR, CIF, EXW

Min. Order:: 10 Set/Sets

Min. Order:: 10 Set/Sets

Delivery Time:: 15 Days

Transportation:: Ocean, Land, Air, express

Port:: Shenzhen, Shanghai, Hangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	50000 sets per week
Supply Ability:	200000 per month
Payment Type:	L/C,T/T,Paypal,Money Gram,Western Union
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	ISO9001 CE FCC SGS
HS Code:	85299049
Transportation:	Ocean,Land,Air,express
Port:	Shenzhen,Shanghai,Hangzhou

Product Description

Product Description

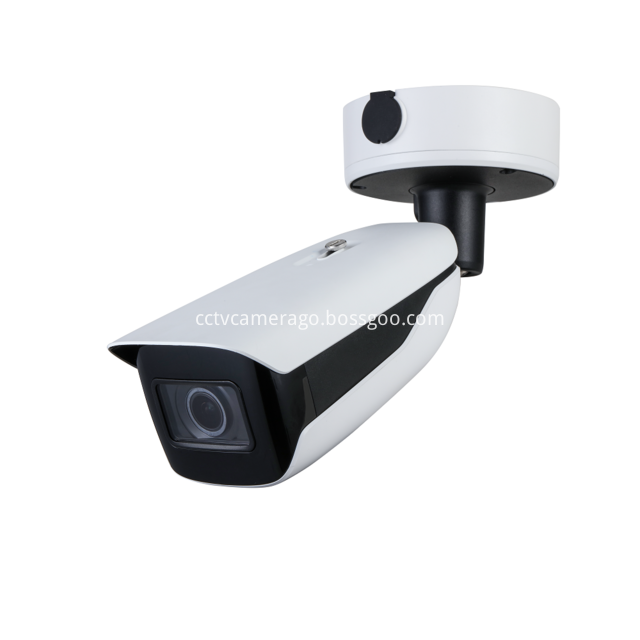

4MP AI IR Bullet Network Camera

> 4MP, 1/1.8" CMOS image sensor, low illuminance, high image definition

> Max outputs 4MP (2688×1520) 50 fps/60 fps

> H.264&H.265 coding, high compression ration

> Wide dynamic, day/ night, 3D noise reduction, AWB, HLC, BLC

> ROI, SVC, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments

> With deep learning algorithm, it supports people counting, face recognition, perimeter protection etc

> 24V AC/PoE/12V DC power support

> Five streams for three-channel HD video

> IP67, IK10 protection grade

Product Details

H7d1716fb5c4344e7bafa69f8cfad4177o Png 640x640q50

Specification

Camera IPC-HFW7442H-Zseries
Image Sensor	1/1.8” 4Megapixel progressive CMOS
Effective Pixels	2688 (H) × 1520 (V)
ROM	16 GB/ZFR/Z4FR
	4GB/Z4/Z
RAM	2 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100000 s
Min. Illumination	0.001 LuxF1.2/ZFR/Z
	0.001 LuxF1.6/Z4FR/Z4
IR Distance	Distance up to 60m (196.85 ft)/ZFR/Z
	Distance up to 120m (393.70 ft)/Z4FR/Z4
IR On/Off Control	Auto/Manual
IR LEDs Number	4 (IR LEDs)
Pan/Tilt/Rotation Range	Pan: 0°–360°
	Tilt: 0°–90°
	Rotation: 0°–360°
Lens
Lens Type	Motorized vari-focal
Mount Type	Module interface
Focal Length	2.7–12 mm/ZFR/Z
	8 mm–32 mm/Z4FR/ZR
Max. Aperture	F1.2/ZFR/Z
	F1.6/Z4FR/ZR
Field of View	Horizontal: 114°(W)–47°(T) /ZFR/Z Vertical: 59°(W)–27°(T)/ZFR/Z Diagonal: 141° (W–55°(T)/ZFR/Z
	Horizontal: 40° (W)–15° (T)/Z4FR/Z4 Vertical: 23° (W)–9° (T)/Z4FR/Z4 Diagonal: 46° (W)–18° (T)/Z4FR/Z4
Iris Type	Auto aperture
Close Focus Distance	W: 1 m (3.28ft)/ZFR/Z T: 2.5 m (8.20ft)//ZFR/Z
	W: 2.5 m (8.20 ft)/Z4FR/Z4 T: 6 m (19.69 ft)/Z4FR/Z4
DORI Distance	ZFR/Z
	Lens	Detect	Observe	Recognize	Identify
	W	60.1 m (187.19 ft)	24 m (78.74 ft)	12 m (39.37 ft)	6 m (19.69 ft)
	T	128.6 m (421.92 ft)	51.4 m (168.64 ft)	25.7 m (84.32 ft)	12.8 m (41.99 ft)
	Z4FR/Z4
	Lens	Detect	Observe	Recognize	Identify
	W	151 m (495.4 ft)	60.7 m (199.15 ft)	30.3 m (99.41 ft)	15.1 m (49.54 ft)
	T	400 m (1312.34 ft)	160 m (524.93 ft)	80 m (262.47 ft)	40 m (131.23 ft)
Smart event
General IVS Analytics	Abandoned object, moving object
Professional, intelligent
Perimeter Protection	Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); parking detection, loitering detection, and people gathering.
Face Detection	ZFR/Z4FR
	1. Face recognition, track, priority, snapshot, face enhancement, face exposure, face attribute extract, 6 attributes and 8 expressions: Gender, age, glasses, expressions (anger, sadness, disgust, fear, surprise, calm, happiness and confusion), mask, beard 2.Face matting setting: face, single inch photo 3.Two snapshot strategies: priority snapshot, recognition 4.Face angle filter Priority time setting Management of 5 group face libraries Single person register and person register in batch Face recognition and similarity setting 5.Max supports face contrast in face library with 200,000 faces
	Z4/Z
	1.Face detection, track, priority, snapshot, face enhancement, face exposure, face attribute extract, 6 attributes and 8 expressions: Gender, age, glasses, expressions (anger, sadness, disgust, fear, surprise, calm, happiness and confusion), mask, beard Face matting setting: face, single inch photo Three snapshot methods: real-time snapshot, priority snapshot, quality priority 2.Face angle filter Priority time setting
ANPR	Z4/Z
	1.ANPR, track, priority, snapshot 2.Vehicle attributes: license plate, vehicle type, vehicle color,vehicle brand.3.Other attributes: sun visor, seat belt, smoking, phoning, in-car accessories, annual vehicle inspection mark
Video Metadata	Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction.
People Counting	People counting (count the entry number, exit number and pass number), display and output daily/monthly/annual statistics, No. in area
Intelligent Search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression	H.265, H.264, H.264H, H.264B, MJPEG
Smart Codec	Yes
Video Frame Rate	Main Stream: 2688 × 1520 (1–50/60 fps)
	sub stream 1: 704 × 576 (1–25/30 fps)
	sub stream 2: 1920 × 1080 (1–25/30 fps)
	sub stream 3: 1920 × 1080 (1–25/30 fps)
	sub stream 4: 704 × 576 (1–25/30 fps)
Resolution	4M (2688 × 1520), 3M (2304 × 1296), 1080p (1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 32–10240 kbps
	H.265: 12–10240 kbps
Day/Night	ICR switch
BLC	Yes
WDR	140 dB
White Balance	Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control	Auto/Manual
Noise Reduction	3D DNR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest(RoI)	Yes (4 areas)
Electronic Image Stabilization(EIS)	Yes
Smart IR	Yes
Defog	Yes
Image Rotation	0°/90°/180°/270° (Supports 90°/270° with 1080p resolution or below.)
Mirror	Yes
Privacy Masking	4 areas
Audio
Audio Compression	G.711a; G.711Mu; G726; AAC; G.723
Network
Network	RJ-45 (10/100/1000 Base-T)
Protocol	HTTP; Https; 8021.x; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP; QoS; UPnP; NTP; SFTP; RTMP; Genetec;Bonjour
Interoperability	ONVIF (Profile S/Profile G/Profile T); CGI; P2P
Scene self-adaptation	Yes
User/Host	20
Edge Storage	FTP; Micro SD card (256 G); NAS; SFTP
Browser	IE: Versions later than IE9
	Google: Versions later than Chrome 42
	Firefox: Versions later than Firefox 48.0.2
Management Software	Smart PSS, DSS PRO, NVR, IVSS, DMSS
Mobile Phone	IOS, Android
Certification
Certifications	CE-LVD: EN60950-1
	CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
	FCC: 47 CFR FCC Part 15, Subpart B
	UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
RS-485	1 (Bit rate: 1200 bps–115200 bps)
Audio Input	Audio Interface: 1/1 channel In/Out
Audio Output
Alarm Input	3 channel In: 5mA 5V DC
Alarm Output	2 channel Out: 1000mA 30V DC/500mA 50V AC
Power
Power Supply	12V DC/24V AC/POE
Power Consumption	<17.3W
Environment
Operating Temperature	-40°C to +60°C (-40°F to +140°F)
Operating Humidity	≤95%
Storage Temperature	-40°C to +60°C (-40°F to +140°F)
Ingress Protection	IP67, IK10
Structure
Casing	Metal + Plastic
Dimensions	340.1 mm × 108.5 mm × 92.9 mm (13.39" × 4.27" × 3.66") (L × W × H)
Net Weight	1600g (3.53 lb)
Gross Weight	2400g (5.29 lb)
