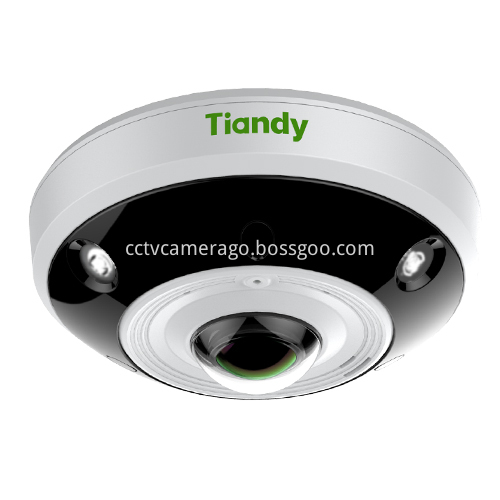

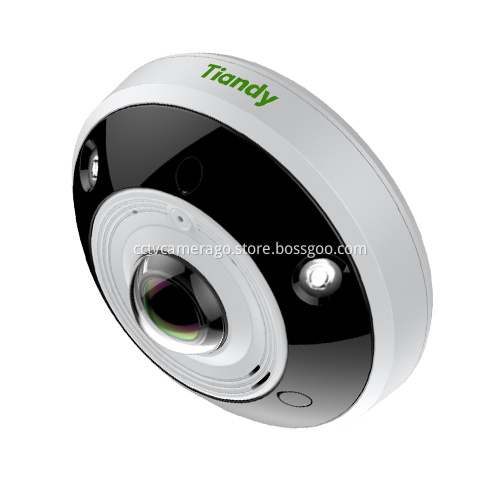

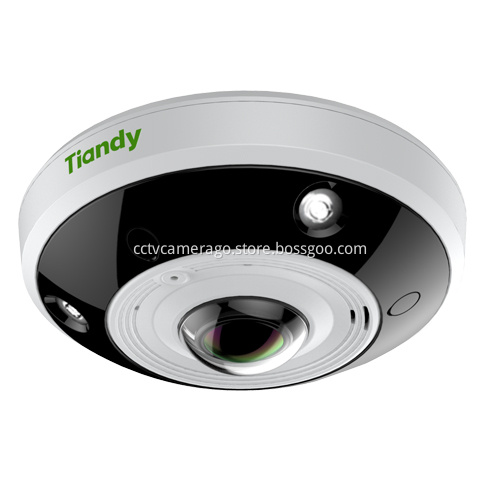

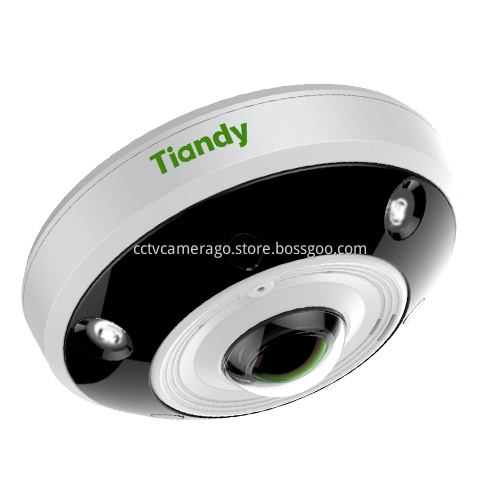

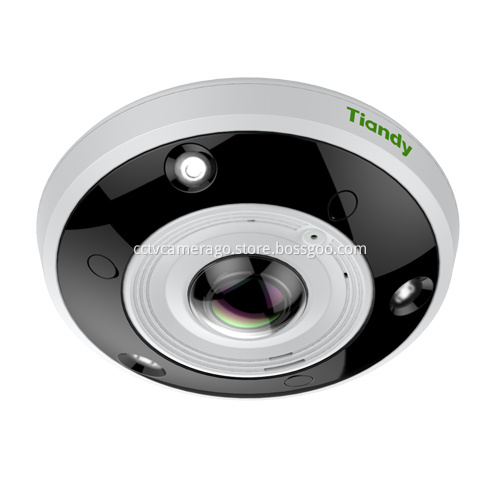

12MP IR Fisheye CameraTC-NC1261
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW, FCA
- Min. Order:
- 5 Set/Sets
- Min. Order:
- 5 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Shanghai, Tianjin
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Tianjin |
|---|---|
| Productivity: | 50000 sets per week |
| Supply Ability: | 200000 per month |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW,FCA |
| Certificate: | ISO9001 CE FCC SGS |
| HS Code: | 85299049 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Shanghai,Tianjin |
Features
· Up to 4000×3072 20fps
· S+265/H.265/H.264/M-JPEG
· Support Ceiling, Wall, Table Mounting
· Support Hardware Decoding and Software Decoding
· Support 360° Panaromic View, 180° Panaromic View, 4PTZ, Fisheye+3PTZ Mode
· Support Human/Vehicle Classification
· Built-in Mic&Speaker
· Smart IR, IR Range: 20m
· Operating Conditions -35°~65°, 0~95% RHG
· POE, IP66, IK10
Product Details
Specifications
| Camera TC-NC1261 |
|
| Image Sensor | 1/1.7" CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.05Lux@ (F2.8, ACG ON), B/W: 0Lux with IR |
| Shutter Time | 1s to 1/100,000s |
| Day & Night | Dual IR Cut Filter with Auto Switch |
| Wide Dynamic Range | Digital WDR |
| Lens |
|
| Lens Type | Fixed |
| Focus | 1.98mm |
| Lens Mount | M12 |
| Aperture | F2.8, Fixed |
| FOV | Horizontal field of view: 180° |
| Illuminator |
|
| IR LEDs | 3 |
| IR Range | Up to 20m |
| Wavelength | 850nm |
| White LEDs | 3 |
| Compression Standard |
|
| Video Compression | S+265/H.265/H.264/M-JPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Audio Compression | G.711A/G.711U/ADPCM/AAC |
| Audio Bit Rate | 8K~48Kbps |
| Image |
|
| Max. Resolution | 4000×3072 |
| Main Stream | PAL: 20fps (4000×3072), 25fps (3072×3072, 2560×2560), 20fps (720×720, 704×576) |
| NTSC: 20fps (4000×3072), 30fps (3072×3072, 2560×2560), 20fps (720×720, 704×480) | |
| Sub Stream | PAL: 25fps (704×576, 704×288, 352×288) |
| NTSC: 30fps (704×480，704×240，352×240) | |
| Third Stream | N/A |
| Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| Image Enhancement | BLC/3D DNR/HLC |
| ROI | Support 7 fixed region of coding |
| OSD | 16×16, 24×24,32×32, 48×48, 64x64, 96x96, adaptable size, Letters Such as Week, Date, Time, Total 5 Regions |
| Picture Overlay | Yes |
| Privace Mask | Yes |
| Smart Defog | Yes |
| Feature |
|
| Alarm Trigger |
Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict , FTP Server Exception |
| Video Analytics | Tripwire, Double Tripwire, Perimeter, Video Abnormal, Audio Abnormal, Heat Map |
| Early Warning(EW) | Yes |
| Smart Codec | N/A |
| Smart Image | N/A |
| Smart Alarm | N/A |
| Network |
|
| ANR | Yes, auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR NVR) |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, MULTICAST, UPnP, FTP, IPV4, NTP, RTSP, SMTP, IGMP, PPPoE, SNMP, IEEE802.1X, IPV6 |
| System Compatibility | ONVIF (PROFILE S), SDK, CGI, P2P |
| Remote Connection | ≤7 |
| Client | Easy7, EasyLive |
| Web Version | Web5 |
| Interface |
|
| Communication Interface | 1 RJ45 10M/100M/1000M self adaptive Ethernet port |
| Audio | 1/2, Mic in |
| Alarm | 2/1 |
| Reset Button | Yes |
| On-board storage | Built-in MicroSD card slot, up to 128 GB |
| General |
|
| Firmware Version | NVSS_V9.1.0.20170206 |
| Web Client Language |
11 languages English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish |
| Operating Conditions | -35℃～65℃, 0～95% RH |
| Power Supply | DC12V±10%/AC24V±25%/PoE |
| Power Consumption | 8.6W/11.7W(MAX) |
| Protection | IP66, IK10 |
| Heater | N/A |

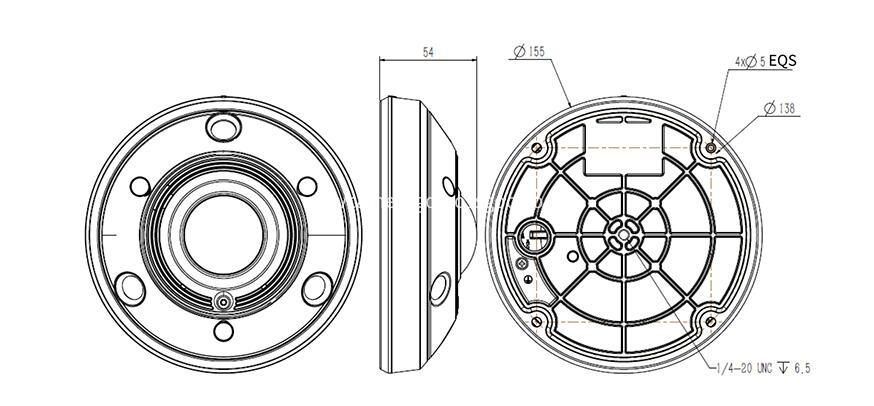

| Dimensions | Φ155×54 mm (Φ6.1*2.13 inch) |
| Weight |
0.75kg (1.65lb) |
