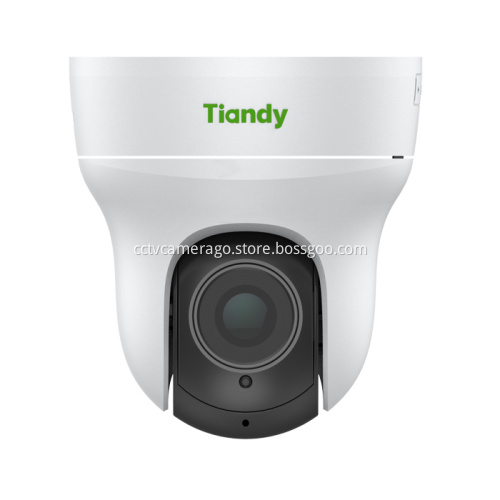

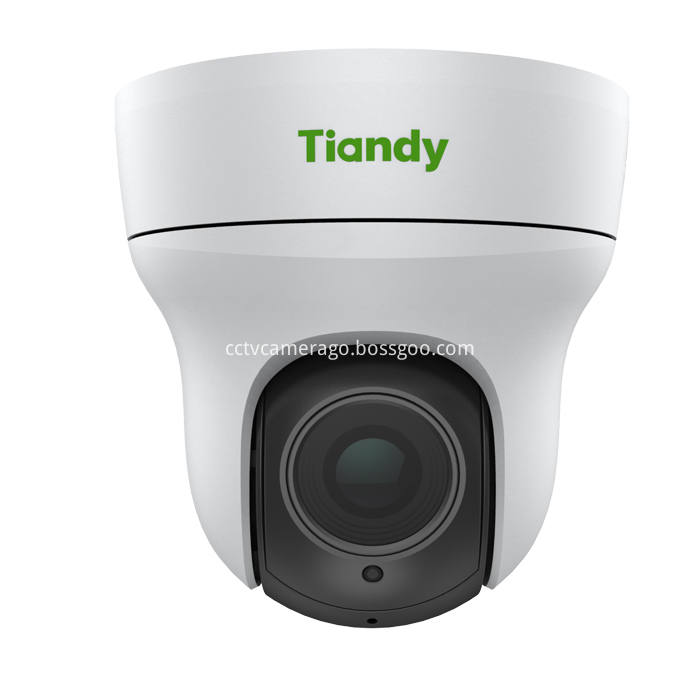

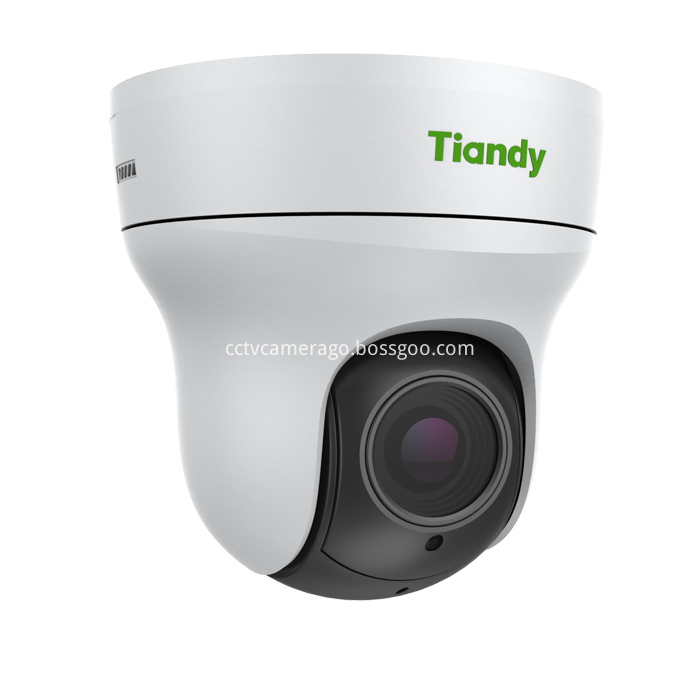

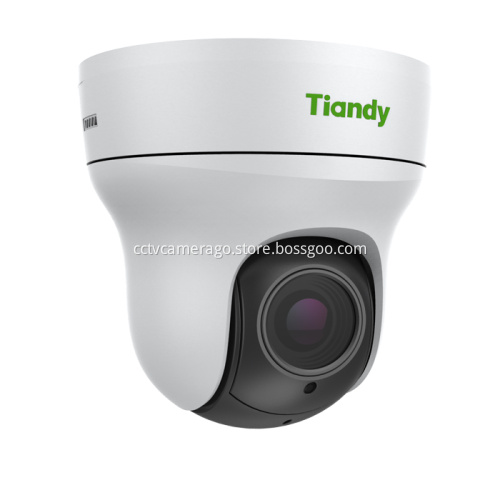

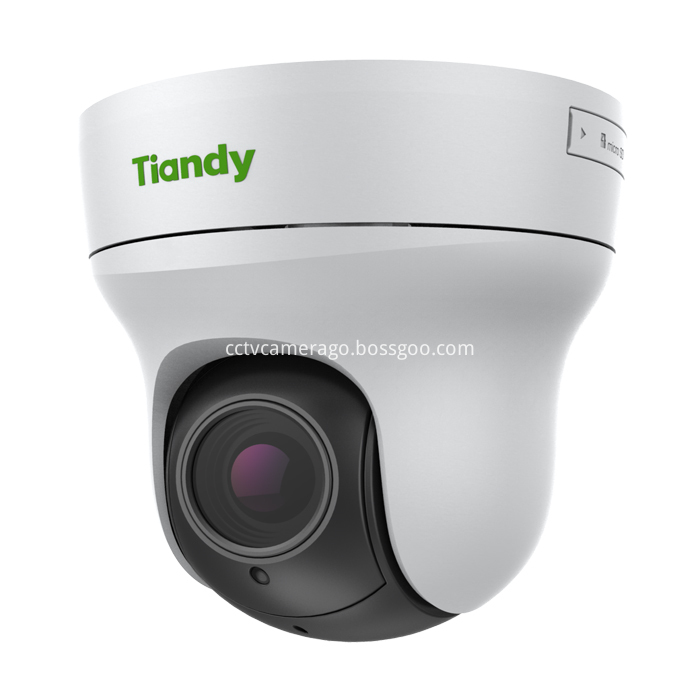

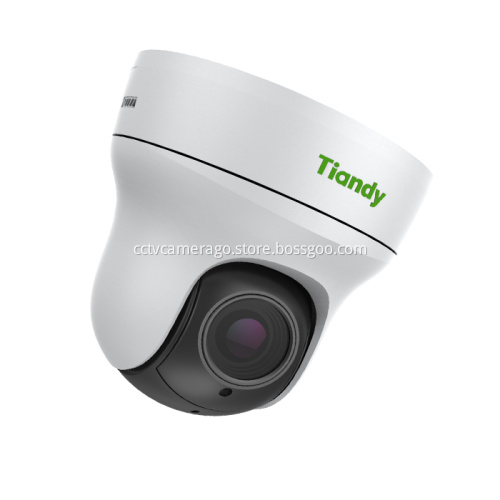

2MP Starlight Mini EW IR POE PTZ CameraTC-H323Q
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW, FCA
- Min. Order:
- 5 Set/Sets
- Min. Order:
- 5 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Shanghai, Tianjin
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Tianjin |
|---|---|
| Productivity: | 50000 sets per week |
| Supply Ability: | 200000 per month |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW,FCA |
| Certificate: | ISO9001 CE FCC SGS |
| HS Code: | 85299049 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Shanghai,Tianjin |
Features
· Early Warning (EW)
· Up to 1920X1080 30fps
· Min. illumination Color: 0.002Lux F1.4
· Optical zoom: 4×, digital zoom 16×
· Smart IR, IR Range: 30m
· Support Human/Vehicle Classification
· Built-in Mic&Speaker
· S+265/H.265/H.264/M-JPEG
Product Details
Specifications
| Camera TC-H323Q | |
| Image Sensor | 1/2.8" CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.002lux@ (F1.4, ACG ON), BW: 0lux with IR |
| Shutter Time | 1s to 1/100,000s |
| Day & Night | Dual IR Cut Filter |
| Wide Dynamic Range | 120dB |
| Optical Zoom | 4× |
| Digital Zoom | 16× |
| Lens | |
| Focal Length | 2.8mm~12mm |
| Zoom Speed | <5s |
| Angle of View | Horizontal filed of view: 104° (w)～30° (t) |
| Aperture Range | F1.4~F2.8 |
| Pan&Tilt | |
| Pan Range | 350° |
| Pan Speed | Pan Manual Speed: 0.1°~60°/s, Pan Preset Speed: 60°/s |
| Tilt Range | 0°~90° (Auto flip) |
| Tilt Speed | Tilt Manual Speed: 0.1°~60°/s, Tilt Preset Speed: 60°/s |
| 3D Position | Yes |
| Presets | 500 |
| Preset Accuracy | ±0.6° |
| Scan | 8 |
| Cruise | 16, up to 32 presets per cruise |
| Pattern | 8, each with 600s memory or 1000 orders |
| Power-off Memory | Yes |
| RS-485 Protocols | DOME_PELCO_D, DOME_PELCO_P, DOME_PLUS |
| Illuminator | |
| IR LEDs | 3 |
| IR Range | Up to 30m |
| IR Irradiation Angle | Fixed |
| White LEDs | 1 |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264/M-JPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Audio Compression | G.711A/G.711U/ADPCM/AAC |
| Audio Bit Rate | 8K~48Kbps |
| Image | |
| Max. Resolution | 1920×1080 |
| Main Stream | PAL: 25fps (1920×1080, 1280×960), 50fps (1280×720) |
| NTSC: 30fps (1920×1080, 1280×960), 60fps (1280×720) | |
| Sub Stream | PAL: 25fps (704×576, 704×288, 352×288) |
| NTSC: 30fps (704×480, 704×240, 352×240) | |
| Third Stream | PAL: 25fps (352×288) NTSC: 30fps (352×240) |
| Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| Image Enhancement | BLC/3D DNR/HLC |
| ROI | 7 Dynamic Areas for Both Main and Sub Stream |
| OSD |
16×16, 24×24,32×32, 48×48, 64x64, 96x96, adaptable size, Letters Such as Week, Date , Time, Total 5 Regions |
| Picture Overlay | Yes |
| Privace Mask | Yes |
| Smart Defog | Yes |
| Feature | |
| Alarm Trigger |
Harsh Voice Alarm, Motion Detection, Mask Alarm, Port Alarm, Network Disable Alarm, IP Conflict, MAC Conflict Detection |
| Video Analytics |
Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running , Face Detection, Crowed, Video Abnormal, Audio Abnormal, Heatmap |
| Early Warning(EW) | Yes |
| Auto-Tracking | N/A |
| Network | |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, MULTICAST, UPnP, FTP, IPV4, NTP, RTSP, SMTP, IGMP, QoS, PPPoE |
| System Compatibility | ONVIF (PROFILE S), SDK, CGI, P2P |
| ANR |
Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR NVR) |
| Remote Connection | ≤7 |
| Client | Easy7, EasyLive |
| Web Version | Web5 |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M self adaptive Ethernet port |
| Audio | 1/1, Mic in |
| Alarm | 2/1 |
| Reset Button | Yes |
| On-board storage | Built-in MicroSD card slot, up to 128 GB |
| RS-485 | Yes |
| BNC | N/A |
| General | |
| Firmware Version | NVSS_14.1.3 20180918 |
| Web Client Language |
11 languages English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish |
| Operating Conditions | -10°~50°C, 0-90% RH |
| Power Supply | DC12V±10%/POE |
| Power Consumption | 4.9W (IR OFF), 8.9W (IR ON) |
| Protection | IP40 |
| Heater | N/A |

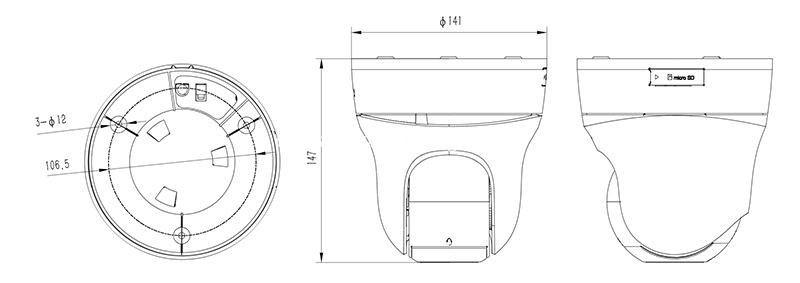

| Dimensions | Φ141x152 mm (Φ5.55×5.98 inch) |
| Weight |
0.85kg (1.87lb) |
