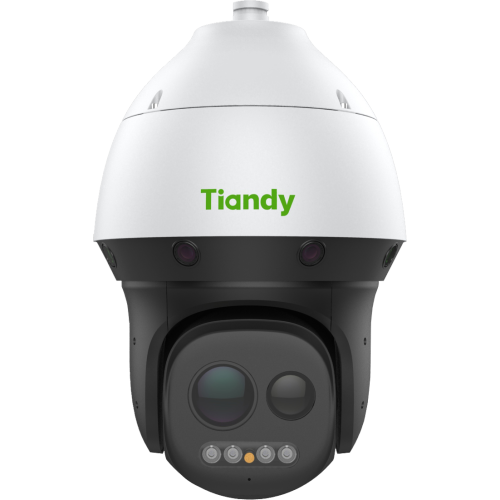

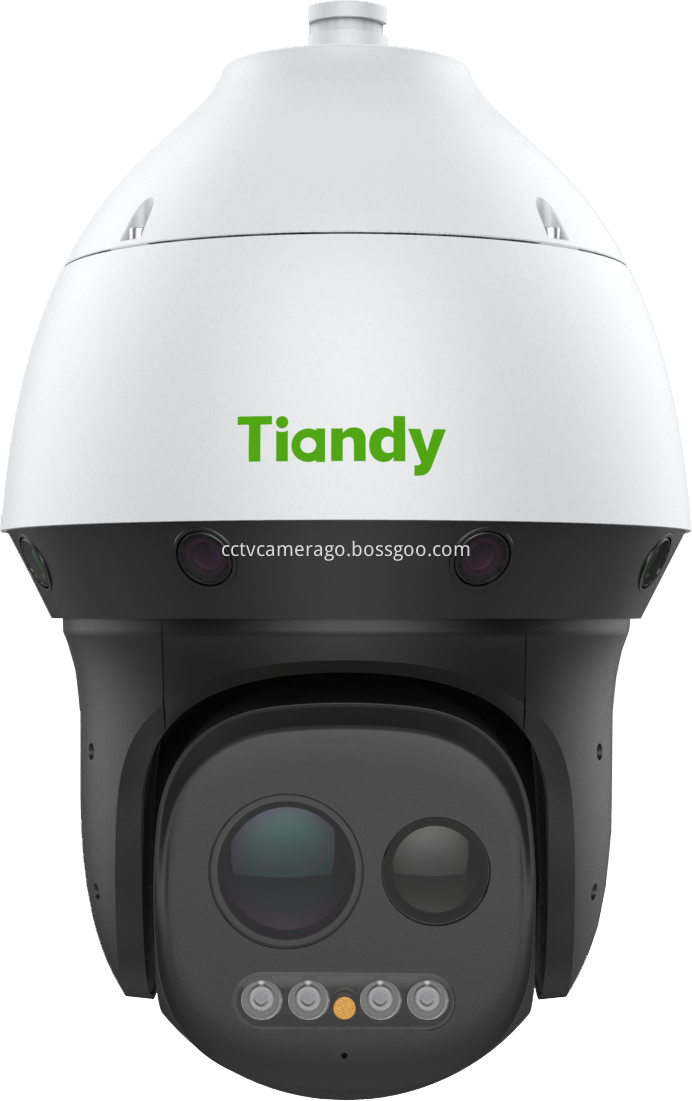

16MP Super Starlight Laser AEW Panaromic PTZ CameraTC-H3169M
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW, FCA
- Min. Order:
- 5 Set/Sets
- Min. Order:
- 5 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Tianjin |
|---|---|
| Productivity: | 50000 sets per week |
| Supply Ability: | 200000 per month |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW,FCA |
| Certificate: | ISO9001 CE FCC SGS |
| HS Code: | 85299049 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Shanghai |
Features
PTZ Camera:
· Auto-Tracking Early Warning (AEW)
· Up to 1920×1080 60fps
· Min. illumination Color: 0.0008Lux F1.5
· Optical zoom: 44×, digital zoom 16×
Panaromic Camera:
· Four 1/1.8" CMOS
· Up to 4096×1800 30fps
· Horizotal: 360°, Verticle: 74°
· Built-in Speaker
· Support Human/Vehicle Classification
· S+265/H.265/H.264/M-JPEG
· IP66, POE
Product Details
Specifications
Harsh Voice Alarm, Motion Detection, Mask Alarm, Port Alarm, Network Disable Alarm
, IP Conflict, MAC Conflict Detection
Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running,
Parking, Face Detection, People Counting, Crowed, On Duty Detection, Video Abnormal,
Audio Abnormal, Heatmap, Safety Helmet Detection
Auto store video in SD card when NVR disconnected, and upload video
to NVR when resumed connection (Only Support Tiandy ANR NVR)
PTZ Camera TC-H3169M
Image Sensor
1/1.8" CMOS
Signal System
PAL/NTSC
Min. Illumination
Color: 0.0008Lux@ (F1.5, ACG ON)
Shutter Time
1s to 1/100,000s
Day & Night
Dual IR Cut Filter
Wide Dynamic Range
140dB
Focal Length
6mm～264mm
Digital Zoom
16×
Zoom Speed
<5s
Angle of View
Horizontal filed of view: 61.2° (w)～2° (t)
Aperture Range
F1.5~F4.8
Pan Range
360°
Pan Speed
Pan Manual Speed: 0.1°~160°/s, Pan Preset Speed: 200°/s
Tilt Range
-16°~90° (Auto flip)
Tilt Speed
Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 120°/s
3D Position
Yes
Presets
500
Preset Accuracy
±0.3°
Scan
8
Cruise
16, up to 32 presets per cruise
Pattern
8, each with 600s memory or 1000 orders
Power-off Memory
Yes
RS-485 Protocols
DOME_PELCO_D, DOME_PELCO_P, DOME_PLUS
Max. Resolution
8192×1800
Main Stream
PAL: 50fps (1920×1080, 1280×960, 1280×720)
NTSC: 60fps (1920×1080, 1280×960, 1280×720)
Sub Stream
PAL: 25fps (704×576, 704×288, 352×288)
NTSC: 30fps (704×480, 704×240, 352×240)
Sub Stream
PAL: 25fps (1920×1080, 1280×960, 1280×720, 640×480, 704×576, 352×288)
NTSC: 30fps (1920×1080, 1280×960, 1280×720, 640×480, 704×480, 352×240)
Panaromic Camera
Image Sensor
1/1.8" CMOS
Signal System
PAL/NTSC
Min. Illumination
Color: 0.01Lux@ (F2.2, ACG ON)
Shutter Time
1s to 1/100,000s
Focal Length
5mm
Aperture
F2.2
Angle of View
Horizotal: 360°, Verticle: 74°
Max. Resolution
8192×1800
Main Stream
PAL: 25fps 2×(4096×1800, 3840×1680, 2720×1192)
NTSC: 30fps 2×(4096×1800, 3840×1680, 2720×1192)
Sub Stream
PAL: 25fps (704×320)
NTSC: 30fps (704×320)
Third Stream
PAL: 25fps (1280×560) NTSC: 30fps (1280×560)
Illuminator
IR LEDs
N/A
IR Range
N/A
White LEDs
4
Laser
Yes
Laser Distance
500m
Compression Standard
Video Compression
S+265/H.265/H.264/M-JPEG
Video Bit Rate
32 Kbps to 16 Mbps
Audio Compression
G.711A/G.711U/ADPCM/AAC
Audio Bit Rate
8K~48Kbps
Feature
Alarm Trigger
Video Analytics
Early Warning(EW)
Yes
Auto-Tracking
Yes
Image Setting
Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement
BLC/3D DNR/HLC
ROI
7 Dynamic Areas for Both Main and Sub Stream, support auto-tracking ROI
OSD
16×16, 24×24,32×32, 48×48, 64x64, 96x96, adaptable size, Letters Such as Week, Date, Time, Total 5 Regions
Picture Overlay
Yes
Privace Mask
Yes
Smart Defog
Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, MULTICAST, UPnP, FTP, IPV4, NTP, RTSP, SMTP, IGMP, QoS, PPPoE
System Compatibility
ONVIF (PROFILE S), SDK, CGI, P2P
ANR
Remote Connection
≤7
Client
Easy7, EasyLive
Web Version
Web5
Interface
Communication Interface
1 RJ45 10M/100M/1000M self adaptive Ethernet port
Audio
1/1
Alarm
8/2
Reset Button
Yes
On-board storage
Built-in MicroSD card slot, up to 128 GB
RS-485
Yes
BNC
Yes
Wiper
N/A
General
Firmware Version
NVSS_V15.2.0.20180828
Web Client Language
11 languages
English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish
Operating Conditions
-30°~65°C, 0-95% RH
Power Supply
AC24V±15%
Power Consumption
102W (IR OFF), 119W (IR ON )
Protection
IP66
Heater
N/A

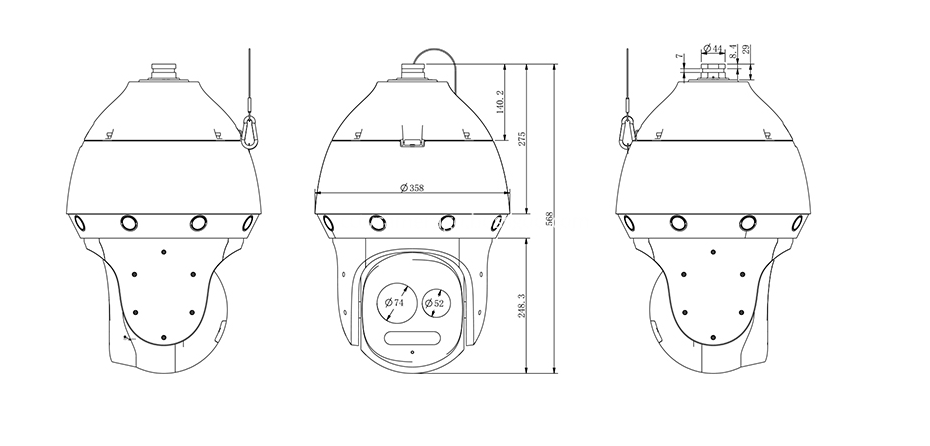

Dimensions
Φ358x568 mm (Φ14.09×22.36 inch)
Weight
17kg (37.48lb)
|
|
Related Products
TC-H389M
TC-H3169M
Cases Apprecitations
To the customer’s requirements for safety, the property developer worked with system integrator to install a full Tiandy surveillance solution. This included 252pcs Tiandy starlight VF bullets and 48pcs starlight VF domes, 2pcs Tiandy 320-ch super NVR as well as Tiandy Easy7 VMS video management software.
To provide 24hr colorful image of high quality, the new cameras supported by TVP algorithm are equipped with video analytics that include loitering detection, automatically detecting people who lingers in an area for a certain time and alerting security operators. HD Dome cameras has discouraged the attempts to vandalize them, and it expands coverage to areas where surveillance was once limited because of tough viewing angles. The extra Tiandy super NVR with dual power supply can be prepared as an extra NVR, with ANR function which can store footage in the camera in case of sudden outage. With these multiple protections the system can keep running in a total secure environment.
