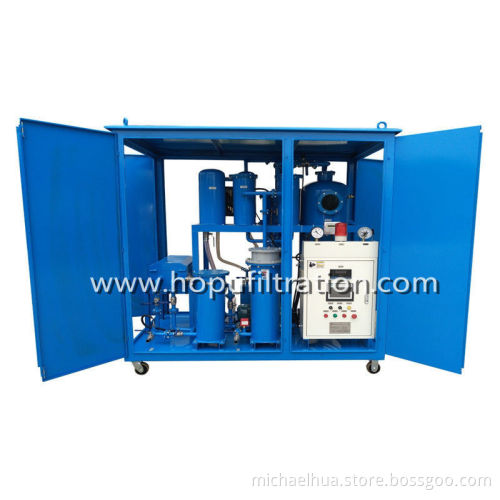

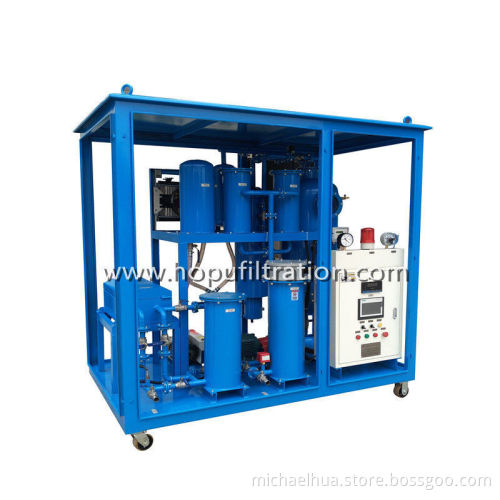

Aged Lubricant Oil Filtration Machine

Main application and usage scope:

Series TYA , it can remove the gas, water, the impurities and the volatile matter (like ethyl alcohol, gasoline, ammonia and so on). Enhances the oil quality, restores the lubricating oil viscosity, flash point and improves the oil capability. Guaranteed the hydraulic system, dynamic system and lubricating system running normally.

Usage scope: It is suitable for many area, such as transportation,mine, metallurgy, electric power, manufactures and so on.

treating the used diesel oil, hydraulic oil, lubricating oil, coolant oil, machine oil and so on.

Features and advantages:

1.Strong ability of breaking emulsification.

2.The combination of coalescing separation and vacuum dewatering.

3.More deeply and precisely FH rectangular filtering system.

4.HOPU unique H.P.M high polymer material adsorption technology.

5.It has the back flush system, which can clear impurities automatically.

6.Advanced dielectric condensation device

7.It have a new pressure protector, which can control the temperature automatically; also it can drain water on line by the water–separator device. So it is easy to control.

8.We adopt the high quality filter materials, which has a good function in anti-corrosive, thermostable, mechanical strength. Especially, the precision of eliminates impurity is high and the service life is long. Also, it has a large volume for storing the impurities.

9. The unique degas and dewater system: Using the Stereo-Evaporation technical, which can separate the water and gas from the oil quickly by the Multi-level water-oil separation technology.

Our catalogue

For insulating oil purification and regeneration

1.ZY series for purify the insulating oil (for less than 110kv transforer oil purification or other insulating equipment oil)

2. ZYB series for purify and regenerate the insulating oil (for less than 110kv transformer oil purification and regeneration)

3. ZYD series for purify the insulating oil with a roots pump (for over 110kv transformer oil purification)

4. ZYD-I series for purify and regenerate the insulating oil (for high voltage insulating equipment oil purification and regeneration)

For turbine oil purification and regeneration

1.TY series for purify the turbine oil (Mainly on dehydration, demulsification)

2.TYA series for purify the normal lubricating oil

3.TYC series for purify and regenerate the normal lubricating oil

TYB series without Vacuum system (deal with the dirty oil which can not be heated, and for the light oil)

LY series plate pressure oil purifier (remove the particals from the oil, can purify the vegetable oil when use SS material)

JL portable oil purifier ( it's economic with three-stage purification. remove impurities from the dirty oil, best for oil filling and oil drawing)

BDV tester for insulating oil

Technical Parameters:
