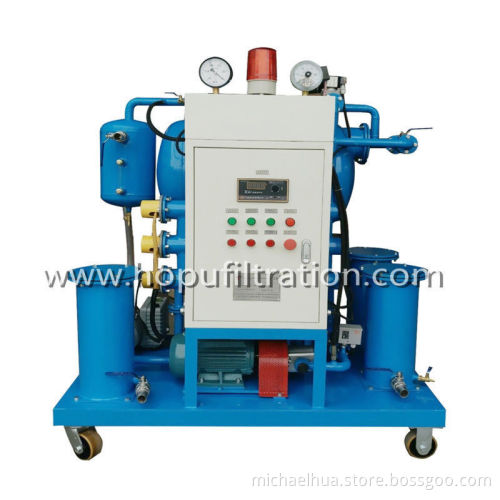

Single Stage Insulation Oil Filtration Machine
- Payment Type:
- L/C, T/T, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Air
- Port:
- Shanghai, Chongqing, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Chongqing,China |
|---|---|
| Productivity: | 700 sets per month |
| Supply Ability: | 700 sets per month |
| Payment Type: | L/C,T/T,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | ce,iso |
| Transportation: | Ocean,Air |
| Port: | Shanghai,Chongqing,Shenzhen |
Function
HOPU ZY series vacuum transformer oil purification unit can remove water content, gases, and solid contaminants from insulating fluids, recovering oil dielectric strength (breakdown voltage BDV).
This oil purification machine helps to dry out moisture of waste insulating oil. Particulate impurities are separated gradually, from coarse particles to tiny ones, as they pass the filter assembly. The filter fineness can be customized according to clients’ request.
ZY transformer oil purification machine has compact design. The vacuum oil degasifier can be encased and mounted on a mobile trailer for on-site field work at power station, electrical substations , and where transformer maintenance is needed. Besides oil-immersed transformers, our ZY transformer oil purification machine can also be applied to maintain oils used in other attendant electrical equipment, such as regulators,mutual inductors, reactors, circuit breakers, switch gear, etc.
Optional
1. Road trailer;
2. Weather-proof enclosure;
3. PLC automatic controller;
4. Online oil moisture ppm meter.
Features and Advantages:
1, it's a new vacuum type, small 5-8 times higher efficiency than normal vacuum oil purifier.
2, with 3D flashing, dewater and degas very efficiently
3, combining the gauze filtering and polymer absorption technology for removing the impurities
4, This machine with infrared liquid auto-control device, which can balance the quantity of outlet oil and inlet oil, so it also can operate on-line without person.
5, it can work online with electric, vacuum oil-filling and drying for the transformer and other insulating equipment.
Technical Parameters:
|
Parameters |
Unit |
ZY-6 |
ZY-10 |
ZY-20 |
ZY-30 |
ZY-50 |
ZY-100 |
ZY-150 |
ZY-200 |
ZY-300 |
|
|
Flow rate |
L/h |
360 |
600 |
1200 |
1800 |
3000 |
6000 |
9000 |
12000 |
18000 |
|
|
Vacuum degree |
MPa |
-0.06~-0.095 |
|||||||||
|
Working pressure |
MPa |
≤0.3 |
≤0.4 |
≤0.4 |
≤0.4 |
≤0.5 |
≤0.5 |
≤0.5 |
≤0.5 |
≤0.5 |
|
|
Temperature range |
°C |
20 ~ 80 |
|||||||||
|
Continuous working |
H |
150 |
|||||||||
|
Power supply |
|
Three phase,50HZ ,380V(or as per customer requirement) |
|||||||||
|
Working noise |
dB(A) |
60 |
61 |
63 |
70 |
70 |
75 |
70 |
70 |
70 |
|
|
Heating power |
kW |
9 |
11 |
13 |
15 |
30 |
48 |
58 |
70 |
85 |
|
|
Total power |
kW |
9.7 |
12.5 |
14.5 |
16.5 |
33.5 |
53 |
65 |
76 |
94 |
|
|
Oil inlet/outlet |
mm |
φ20 |
25 |
φ25 |
φ25 |
φ32 |
φ42 |
φ50 |
φ50 |
φ60 |
|
|
Weight |
Kg |
150 |
230 |
250 |
270 |
300 |
500 |
700 |
900 |
1100 |
|
|
Size |
L |
mm |
970 |
1050 |
1100 |
1150 |
1200 |
1600 |
1600 |
1800 |
1900 |
|
W |
mm |
630 |
750 |
850 |
900 |
950 |
1000 |
1100 |
1200 |
1200 |
|
|
H |
mm |
900 |
1300 |
1400 |
1450 |
1500 |
1800 |
1800 |
1900 |
1900 |
|
Guarantee Value
|
Item |
Guarantee indexes |
|
Moisture content |
≤5PPM |
|
Impurity size |
≤1 micron |
|
Gas content |
≤0.1% |
|
Breakdown voltage |
≥65 |
