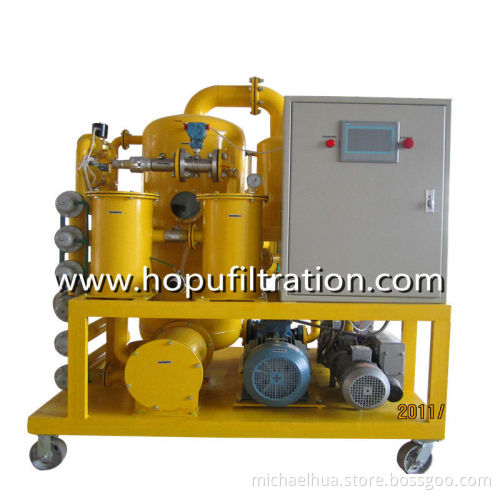

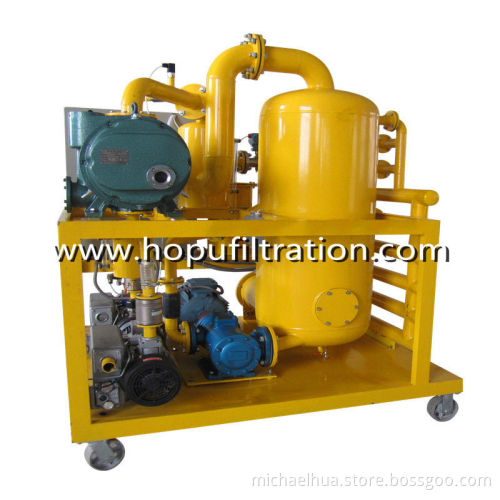

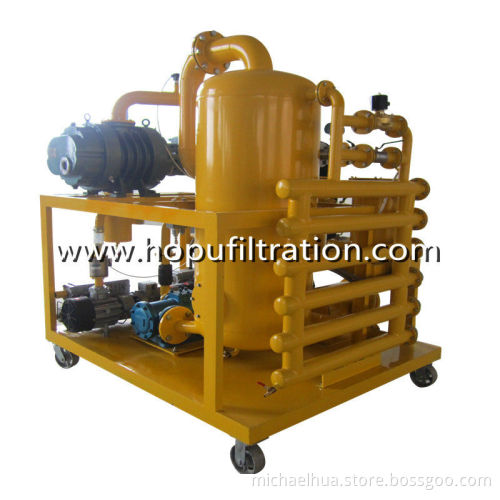

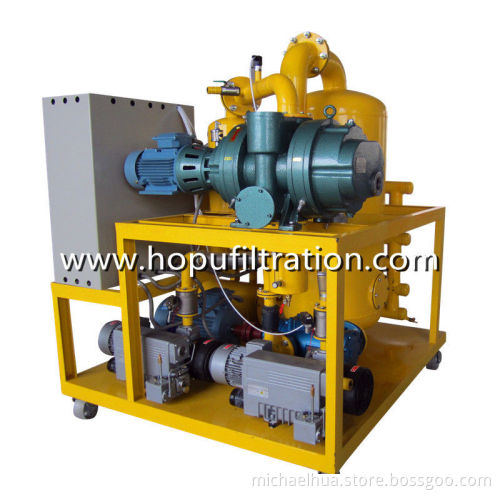

Double stage vacuum transformer oil purifier

Application & Function:

HOPU Series ZYD oil regeneration system is equipped with decolorization system to improve oil color. It is mainly used to remove trace water,gas and other contaminants such as solid particles in the the waste oil, widely used to purify various unqualified electrical insulating liquids such as transformer oil, capacitor oil, switch oil and silicone fluids, etc. After process, oil puncture voltage(breakdown voltage BDV) can be greatly increased, the coefficient of loss tan delta can be significantly improved, and the oil dielectric strength can be maintained.

Feature:

1. Higher than the national standard, it can increase oil puncture voltage by at least 35KV at a time, greatly reduce the oil processing period, due to reduced general oil repeatedly heating oil quality aging filtration lead hazards.

2. High vacuum pressure and high flow rate: Absorption speed power=333L/s to meet with the requirements in the installation and maintenance of transformers vacuumize. It is suitable for degas, dewater of transformer oil.

3. Adopt the nano-molecular material filtration and three-dimensional flash distillation technology to remove water, gas and impurities of the transformer oil effectively, to improve the voltage-withstand value and the quality of oil.

4 .Carbon fiber infrared heating system, it can remove all the ethyne from the oil.

5. Adopt VK technology, it can remove the water effectively, such as the dissolve water.

6. Especially applied to vacuum filling oil and drying for power transmission equipments which power is over 110KV.

Technical Parameters:
