Used Insulating Oil Renewal Machine
- Payment Type:
- L/C, T/T, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Air
- Port:
- Shanghai, Chongqing, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Chongqing,China |
|---|---|
| Productivity: | 400 sets per month |
| Supply Ability: | 400 sets per month |
| Payment Type: | L/C,T/T,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | ce,iso |
| Transportation: | Ocean,Air |
| Port: | Shanghai,Chongqing,Shenzhen |
hopufiltration com
Application:

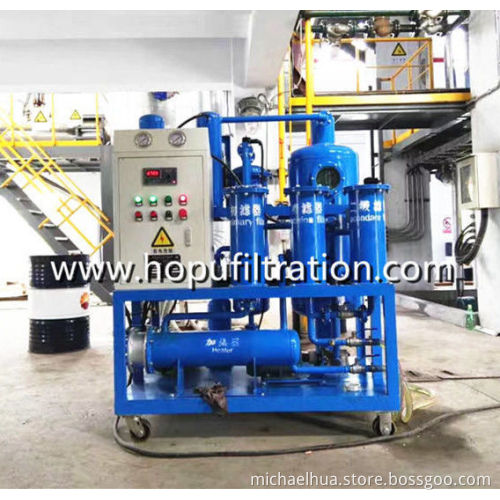

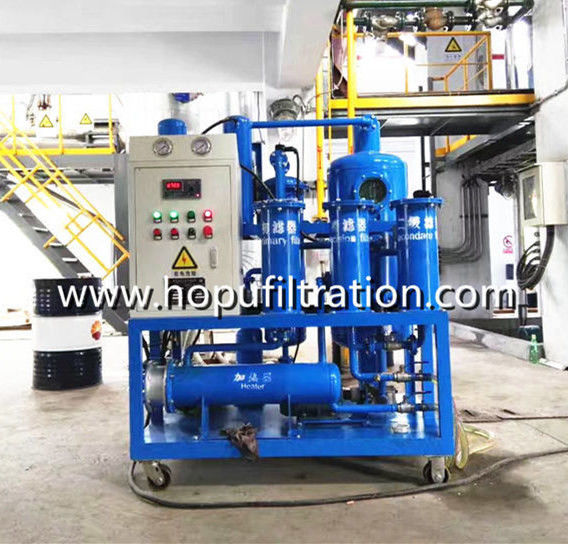

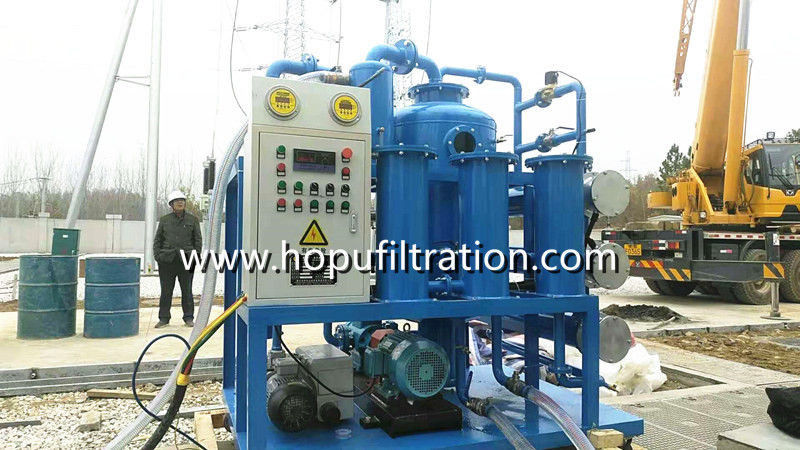

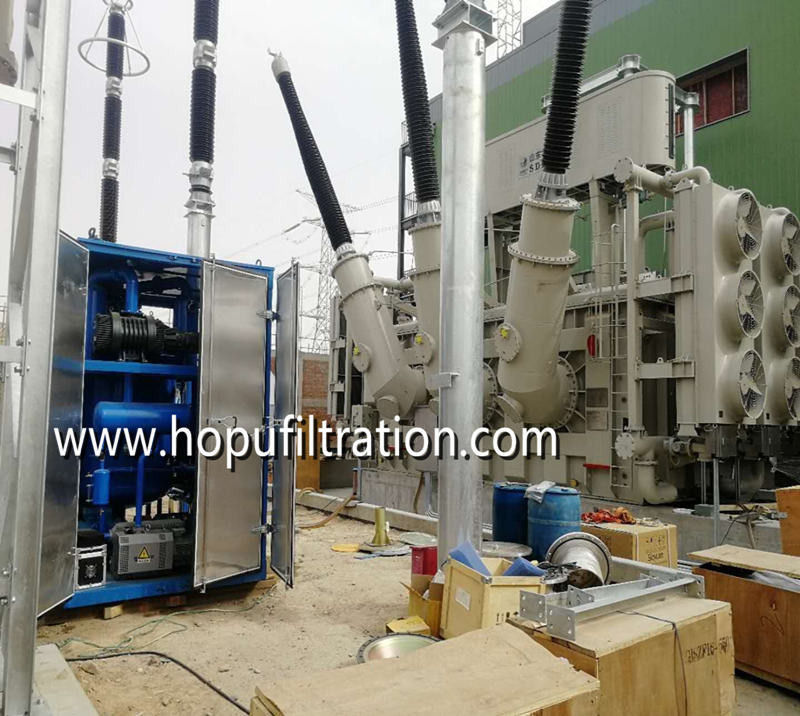

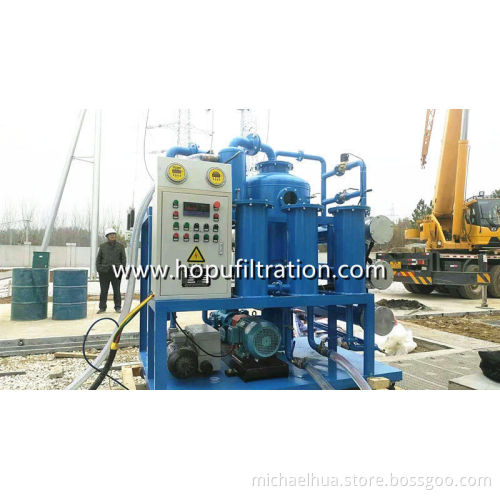

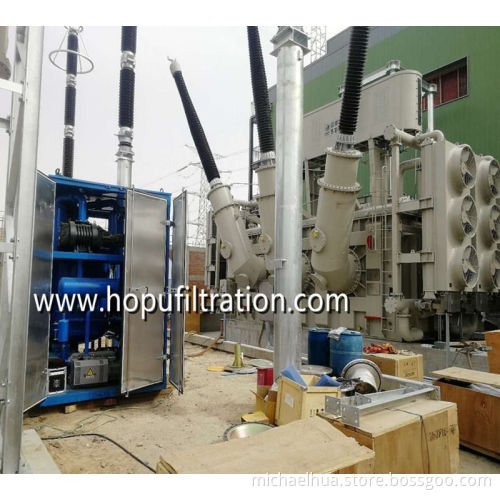

ZYD-I double stage vacuum transformer oil regeneration equipment is specially designed for on site use to completely purify and regenerate insulating oils in energized or de-energized transformers. It can regenerate and recycle the old aging transformer oil to approximate new oil.
Provide regular oil purification including degassing, drying and particulate removal but also remove acidity, sludge, other soluble oil decay products, and improve color. For special application, the system also can be mounted on a leak proof base or be installed and operated on a trailer.
Features:
1. For special application, the operation can be controlled by P.L.C (Programmable Logic Controller).
3. UK g technology by which the trace water that is show chain, such as dissolved water, can be removed effectively.
4. Advanced infrared liquid-level automatic control system to accomplish fully automatic control.
2. Unique vacuum dehydration, degassification and regeneration system, adopt stereo-evaporation technology. Duplex 3D stereo-evaporation, eliminating the liquid water quickly.
5. Can be applied for vacuum oiling and drying power transmission equipment.
6. Special additives for depolarization can recover oil color of aged transformer oil to new.
Technical Parameters
| Parameter | Unit | ZYD-I-30 | ZYD-I-50 | ZYD-I-100 | ZYD-I-150 | ZYD-I-200 | ZYD-I-250 | ZYD-I-300 |
| Flow rate | L/h | 1800 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 |
| Working vacuum | MPa | -0.08~-0.099 | ||||||
| Working pressure | MPa | ≤0.3 | ||||||
| Temperature | ℃ | 20 ~ 80 | ||||||
| Power | 3 ph 380V 60Hz (Or as needed) please contact HOPU salesman | |||||||
| Working noise | dB(A) | 75 | 75 | 75 | 75 | 80 | 80 | 80 |
| Heating power | kW | 30 | 30 | 45 | 60 | 75 | 90 | 120 |
| Total power | kW | 35.5 | 37.5 | 52.5 | 71.4 | 86.5 | 102.5 | 135 |
| Oil Inlet/Outlet | mm | φ25 | φ32 | φ42 | φ50 | φ50 | φ60 | φ60 |
| Weight | Kg | 600 | 800 | 1050 | 1400 | 1800 | 2000 | 2200 |
| Size | L,mm | 1050 | 1100 | 1200 | 1450 | 1600 | 1800 | 1900 |
| W,mm | 750 | 800 | 950 | 950 | 1100 | 1200 | 1200 | |
| H,mm | 1350 | 1400 | 1500 | 1650 | 1800 | 1900 | 1900 | |
Oil Index After Treated by ZYD-I Machine
| Item | Unit | After treatment |
| Breakdown Voltage | kV | ≥75 |
| Moisture content | PPM | ≤3 |
| Gas content | % | ≤0.1 |
| Impurity size | micron | ≤0.5 (no free carbon) |
| IFT | dynes/cm | ≥40 |
| Acid value | mg KOH/g | ≤ 0.03 |
| Dielectric loss factors | tgδ(90°C) | ≤0.001 |
| Colour | L | ≤0.5 |
