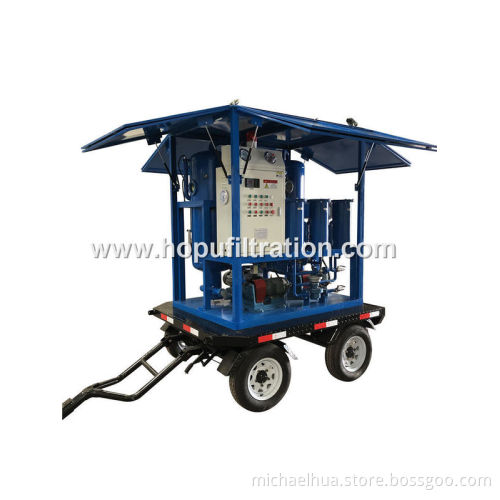

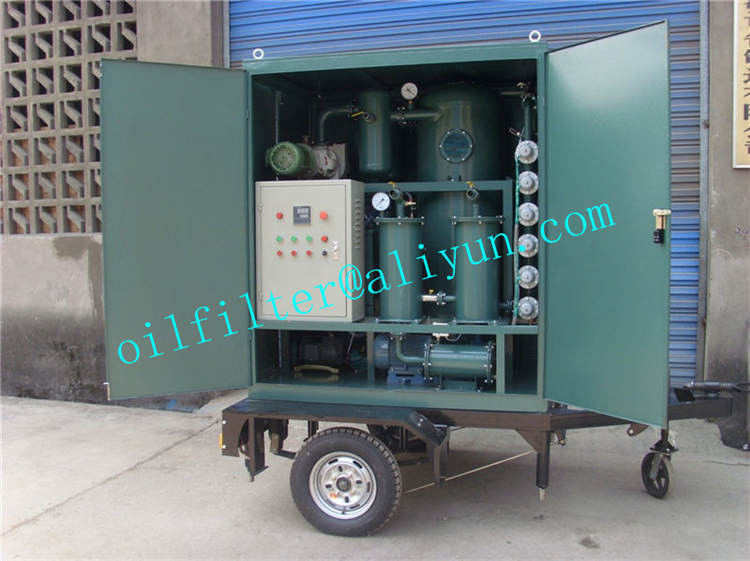

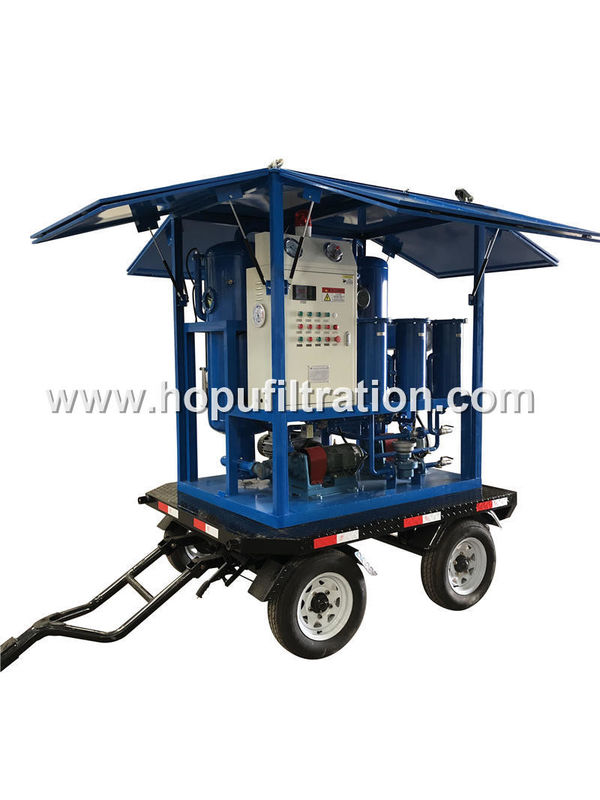

Outdoor Mobile Insulating Oil Filtration Machine With 4 Wheels

hopufiltration com

Application:

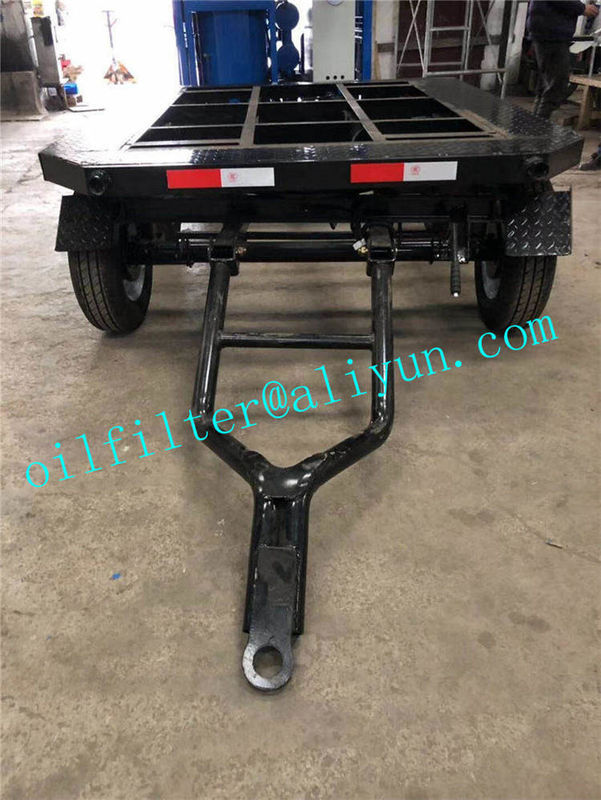

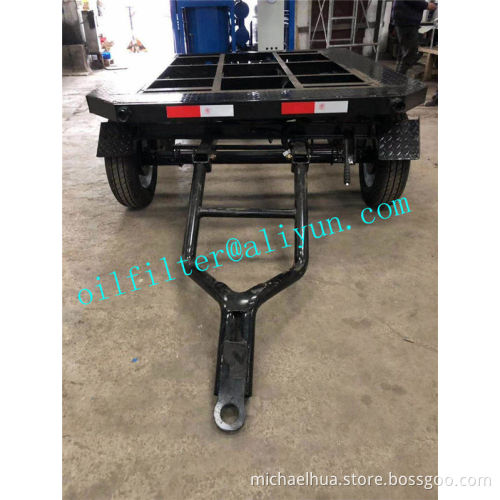

The machine is special for treating the used and old transformer oil, mutual oil, switch oil. Comparing with the single stage type, this machine adopts the double stages vacuum system, which can improve the machine working vacuum value highly, so it can remove the water, gas and impurities in transformer oil high-efficiently, increasing the pressure force and quality of oil, make sure the electric device running safely. The machine is specially applied to vacuum filling oil and drying for power transmission equipments that are over 110KV. According to fieldwork requirement, this machine equips car wheels, which can be easily moved to any work point by traction. Also this machine adopt enclosed type, it can work in any weather conditions at various outdoor sites. It is especially suitable for purifying transformer oil which locates in outside fields. This machine can seriously recover transformer oil. The treated transformer oil can reuse again in transformer.

Features:

1. PH of treat oil ≥5.5 2. Acid value ≤0.03mgkoH/g

2. Flash point ≥145 4. Anti-pressure≥70KV

3. Dielectric loss: Dielectric loss: tg δ (90°C)% ≤0.001

4. High vacuum: high point-vacuum ≤5Pa; working-vacuum ≤35Pa

5. High absorption speed: absorption speed power ≥333L/Sr.

6. Duplex 3D stereo-evaporation, eliminating the liquid water quickly

7. UK G technology, by which the trace water that is show chain, such as dissolved water, can be removed effectively

8. Instinctively removing impurities system filtering through the double FH trapezoidal network and absorbing by high polymer without mechanical power

9. Argon fiber infrared heating system that can make the oil contain zero sum of ethyne after the treatment.

10. Besides the common vacuum oil purifier's function of dewatering, degassing and

eliminating impurities, this machine can regenerate the seriously deteriorated oil

by removing the polarity materials, such as the deep oxides and free carbon in

the oil effectively. It can make the seriously deteriorated oil reach to the normal

index including anti-oxides and acid- alkali water-solubility.

11. Double-infrared fluid level auto-control systems replace manual or floating ball valve control

12. A trinity of interlocked preventive device

13. The performance and lifetime of insulating oil will improve and extend awfully

after purification and regeneration

14. It can purify transformer oil on-line without cutting off the power
