Mobile Trailer Transformer Oil Purification Machine
- Payment Type:
- L/C, T/T, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Air
- Port:
- Shanghai, Chongqing, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Chongqing,China |
|---|---|
| Productivity: | 450 sets per month |
| Supply Ability: | 450 sets per month |
| Payment Type: | L/C,T/T,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | ce,iso |
| Transportation: | Ocean,Air |
| Port: | Shanghai,Chongqing,Shenzhen |
hopufiltration com
HOPU Series ZYD-M double-stage insulating oil recycling machine can quickly remove water, trace water, gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil’s dielectric strength, effectively making sure electric equipments working safely and normally. Series ZYD is particularly suitable for treating high-grade transformer oil, super-voltage transformer oil and new transformer oil. It can be used for filtration of more than 110V substation live line work onsite. Meanwhile, Series ZYD HOPU can be used as independent vacuum source with functions of vacuum drying and vacuum oiling.
Features:
1. Add Roots Pump supercharge system and secondary high vacuum separation dehydration and degasification system on the basis of high efficiency vacuum purifier, which enable the vacuum limit reaching ≤3Pa.
2. Being able to eliminate water, gas and impurities etc. harmful contaminants quickly and effectively under high vacuum and high speed operation status, could enhance the breakdown voltage up to 75KV.
3. Being able to remove little tiny water and various gases from oil, and ensure that there is no acetylene in oil.
4. This machine can inject insulation oil into transformers, and then make dryness disposal.
5. The advanced infrared liquid control automatically system, interlocking control for pressure protection and power heating system ensure that long-term safe and reliable operation.
6. Have the function of electrification online operation.
Advantages:

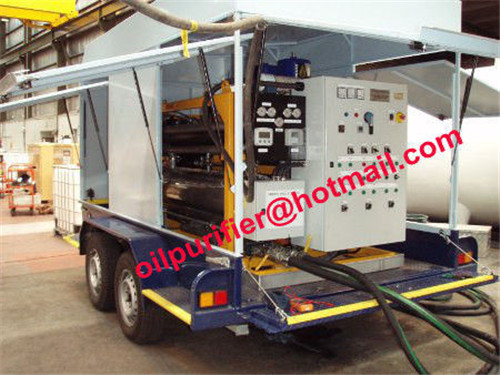

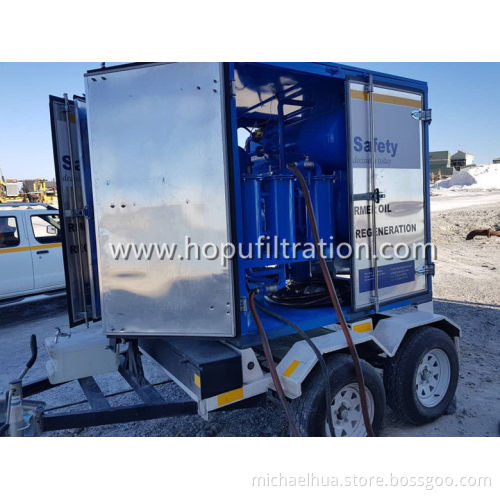

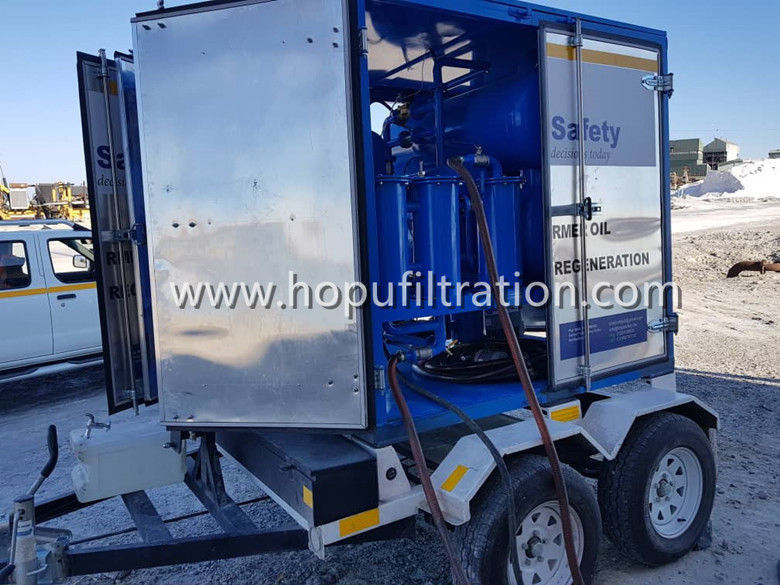

Mobile (trailer) type, completely closed structure, waterproof, dustproof, it can move long distance working in field.
Technical Parameters:
| Parameters | Unit | ZYM-6 | ZYM-10 | ZYM-20 | ZYM-30 | ZYM-50 | ZYM-100 | ZYM-150 | ZYM-200 | ZYM-300 | |||||||||
| Flow rate | L/h | 360 | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 | |||||||||
| Vacuum degree | MPa | -0.06~-0.095 | |||||||||||||||||
| Working pressure | MPa | ≤0.3 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | |||||||||
| Temperature range | 20 ~ 80 | ||||||||||||||||||
| Continuous working | H | 150 | |||||||||||||||||
| Power supply | Three phase,50HZ ,380V(or as per customer requirement) | ||||||||||||||||||
| Working noise | dB(A) | 60 | 61 | 63 | 70 | 70 | 75 | 70 | 70 | 70 | |||||||||
| Heating power | kW | 9 | 11 | 13 | 15 | 30 | 48 | 58 | 70 | 85 | |||||||||
| Total power | kW | 9.7 | 12.5 | 14.5 | 16.5 | 33.5 | 53 | 65 | 76 | 94 | |||||||||
| Oil inlet/outlet | mm | φ20 | 25 | φ25 | φ25 | φ32 | φ42 | φ50 | φ50 | φ60 | |||||||||
Guarantee Value:
| Item | Guarantee indexes |
| Moisture content | ≤5 PPM |
| Impurity size | ≤1 micron |
| Gas content | ≤0.1% |
| Breakdown voltage | ≥70 |
Main Products :
1. Insulating oil purifier
1.1. Series ZY: HOPU vacuum insulation oil purifier
1.2. Series ZY-A: HOPU Vacuum insulation oil automation purifier
1.3. Series ZY-R: HOPU vacuum insulation oil regeneration purifier
1.4. Series ZYD: HOPU Double-stage vacuum insulation oil purifier
1.5. Series ZYD-A: HOPU double-stage vacuum insulation oil automation purifier
1.6. Series ZYD-R: HOPU double-stage vacuum insulation oil regeneration purifier
1.7. Series ZYD-M: HOPU Mobile Type Transformer Oil Purification Plant, Oil Recycling
