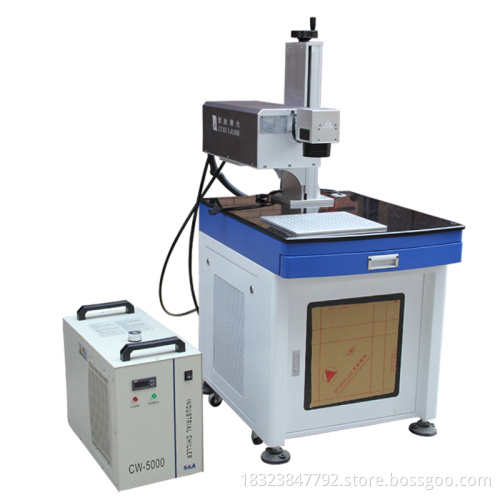

zixu Desktop UV high speed Laser marking machine Photo Engraving Machine for Glass

zixu Desktop UV high speed Laser marking machine Photo Engraving Machine for Glass

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CIF

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 5 Days

Transportation:: Ocean

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing,China
Productivity:	1000
Supply Ability:	1000
Payment Type:	L/C,T/T
Incoterm:	FOB,CIF
Certificate:	ISO,CE
Transportation:	Ocean

Product Description

zixu Desktop UV high speed Laser marking machine Photo Engraving Machine for Glass

3d Photo Engraving Machine for Glass trophies and souvenirs is using a laser beam in a variety of different material surface marked with a permanent mark. Marking effect is through the short wave length laser directly interrupt the molecular chain of matter (different from the long-wave laser generated by the evaporation of the surface material exposed deep material) to show the required etching patterns, text. Can be achieved in the assembly on-line flight marking function, mainly for the thin fragile items such as shallow markings. On the basis of cold working, the effect of processing the material will have better development, in the use of cold laser processing, the material impact of the probability reduced to one percent.

Parameter

Parameter	Parameter index	Unit	Illustration
Laser wavelength	354.7	nm
Average output power	3.0-5.0	W	@30kHz
pulse width	<20	ns	@30kHz
Pulse repetition frequency	10-100	KHz
Laser output mode	TEM00
Beam quality	<1.2
Spot diameter	0.8+-0.1	mm	Measured at window
Beam divergence angle	<1.2	mrad
Beam circularity	>90
Pulse stability	<3	%	RMS/@30kHz
Power stability	<5	%	RMS/8hr
Beam pointing stability	<30	urad/℃
Polarization degree	>100:1
Polarization direction	Horizontal
Working temperature and humidity	10to35 <80	℃ %
Storage temperature and humidity	-20 to 65 <90	℃ %
Power	100-240 50/60<500	VAC Hz W	Single phase
Warranty	15	months

Application

3d Engraving Glass Machine: Automatic Application System Suitable for ultra-fine processing of high-end market, cosmetics, medicines, and other polymer materials on the surface of the bottle marking. Particularly suitable for plastic, glass ,crystal marking
