zixu free shipping desktop dot pin cnc pneumatic marking machine

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

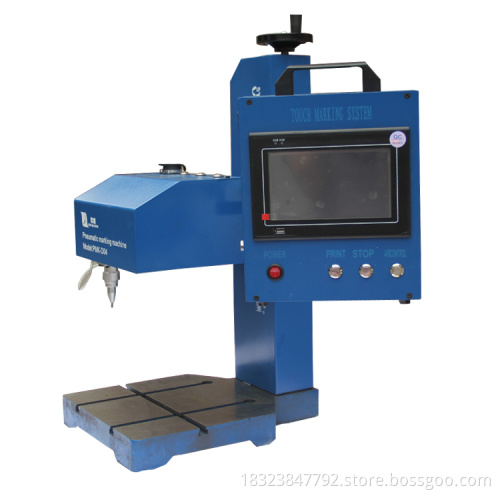

What is model PMK-B01?

1. Desktop Stand-alone marking machine ,with PC USB controller,

used conveniently,friendly software interface,very easy to use.

2. Support fixture device:

a. Rotary fixture, Suitable for various pipe marking, external diameter within 100mm, internal diameter 40-80mm;
b. Pneumatic name plate fixture suit for various plates marking.
c. Manual name plate fixture (customied supported) .

3.Dot Peen marking equipment, is a permanent, direct part marking process using a carbide pin

to indent the marking surface to form dotted lines, logos and 2D Data Matrix bar codes.

nameplate marking.jpg

What is the parameter of it?

Marking speed	2-5 characters(2x2mm)/s
Stroke Frequency	300times/s
Marking depth	0.01 to 2mm (Vary to the material)
Marking contents	Alphanumeric info, Data Matrix or dot matrix 2D codes, Shift codes, Barcode, Serial Number, Date, VIN Code, Time, Letter, Figure, Logo, Graphics and etc.
Stylus Pin Hardness	HRA92/HRA93
Marking area	140x80mm,200x100mm, 300x150mm(customized support)
Dimensions	320x420x740mm
Marking materials	below HRC60 metallic and nonmetallic materials , above HRC60 need special stylus
Repeat accuracy	0.02-0.04mm
Power	300W
Work voltage	AC 110V 60HZ or AC220V 50HZ
Compressed Air( Pneumatic Air)	0.2-0.6Mpa
Connection	USB and RS-232
Controller	a. 7"LCD touch screen controller b. windows 7&windows XP
Power type	a.Pneumatic b.Electric
Marking directions	up, down, left, right, and the circular arc surface marking
Gross weight	64KG

What is the advantage of this marking machine?

Industrial marking system, ideal for making permanent marks on variety size of workpieces
with different surface, such as flat, curve, concave, convex, round. And also the inside of pipe and other special place that hard to reach.
Widely be used to mark on the metal or nonmetal materials.
Pneumatic dot peen marking styluses, besides normal marking inquiry, there are deep
marking stylus (0.1~1mm) and high hardness material (HRC60) marking.
Multiple choice of controller: Mini PC based controller, small size, easy to move and light
weight; 7"LCD touch screen controller, insert software, no need of PC.
