High Quality Suzuki F10A Car Engine

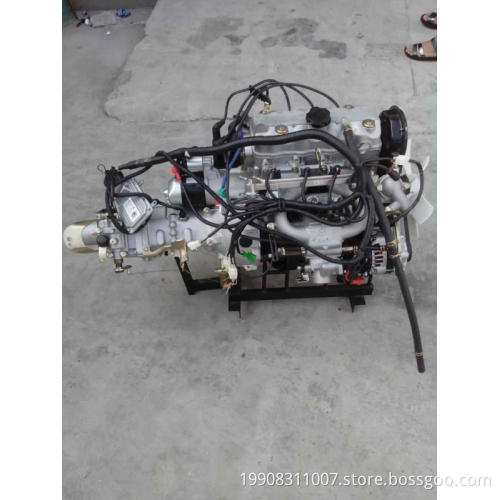

Suzuki F10A Car Engine

1、gasoline engine

■Model：465Q-1E

■Type: four stroke, water cooling, vertical oblique type, multi-ball combustor, single-top camshaft, gear belt transmission, electrically controlled gasoline injection, electrically controlled ignition

■Number of cylinders: straight line 4

■Cylinder diameter:65.5mm

■Piston stroke:78mm

■Compression ratio:9.0:1

■Order of ignition:1-3-4-2

■Crankshaft rotating direction: clockwise (from petrol fan end)

■Rated power:38.5 kW (5200±50r/min)

■Maximum torque:80N.m/(3000-3500r/min)

■ Minimum fuel consumption rate:275g/kw.h, tolerance ±5%

■Calibration speed:5200r/min

■Oil pressure：300-490kpa(3000±50r/min)

■ Ignition advance angle：5°±1°（850±50r/min）

■Clearance of intake and exhaust valves (when cooling)：0.13～0.18mm

■Shape size (length × width × height)：570mm×613.2mm×435.9mm(without gearbox)

960.7mm×613.2mm×435.9mm(with 5 gear gearbox)

■Net Weight：98kg (without gearbox)   128.8kg(with five gear gearbox)

■Minimum stable speed (idle)：850+50r/min

■Total displacement：1.05L

■Fuel consumption ratio for oil：≤1.0%

■ Idle emission concentration：CO≤0.5%，HC≤50.0ppm

■Cooling mode: forced circulating water cooling

■Cooling mode: forced circulating water cooling

■Gasoline engine oil volume:3.5L

■Gearbox lubricating oil volume:1.3L (fifth gear)

■Fuel: No less than No.90 GB 19730

■Lubrication Oil: SF (or SG)15w/40(ambient temperature above -20°C)

SF (or SG)5w/30(ambient temperature below -20°C)

2．Clutch

Type: Dry type, single chip, diaphragm spring, atmospheric pressure

Shape Size:

clutch follower assembly φ180×7.9mm (free state)

clutch cover assembly φ219 x 34mm

Quality: clutch follower assembly 0.62kg

clutch cover assembly 2.44kg

3. Gearbox

Type: Synchronizer gear meshing type, five forward gear, one reverse gear

Speed ratio ：

First gear 3.652

Second gear 1.947

Third gear 1.423

Fourth gear 1.000

Fifth gear 0.795

Reverse gear 3.466

Weight：26kg
