Automobile interior parts press

Automobile interior hydraulic press

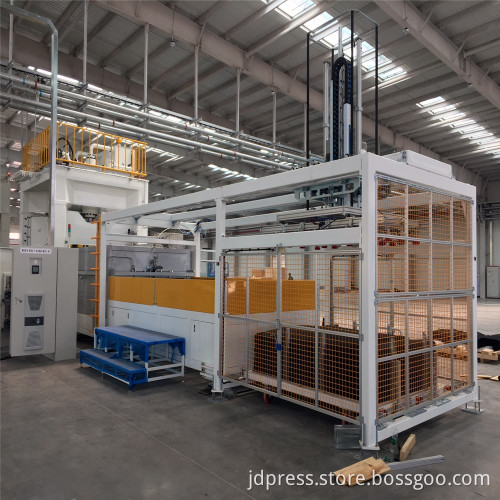

It is mainly used for cold and hot molding and technology of automobile interior panel, carpet, ceiling, seat and other interior materials. According to the process requirements, the press with mold heat conduction oil heating or steam heating system, automatic feeding and unloading device, raw material heating oven, exhaust device, etc. constitute a fully automated production line.



Basic Info:

Model No.: YJK96 series

Type: Four-Column & Frame type Hydraulic Press

Feature: Automation, Precision, High Efficiency

Certification: ISO9001; CE

Condition: New

Customized: Customized

Warranty: 24 Months

Additional Info

Productivity: 5 Sets/Month

Brand: Jiangdong

Place of Origin: China

Supply Ability: 5 Sets/Month

Product Description

Performance Characteristics:

According to the process requirements, the press with mold heat conduction oil heating or steam heating system, automatic feeding and unloading device, raw material heating oven, exhaust device, etc. constitute a fully automated production line.



Applicable fields:

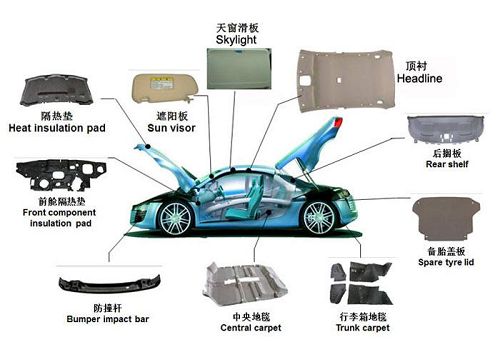

It is mainly used for cold and hot molding and technology of automobile interior panel, carpet, ceiling, seat and other interior materials.

Specification:



Model		Unit	YJK96-SF50	YJK96-SF100	YJK96-SF300	YJK96-SF400	YJK96-SF500
Capacity		kN	500	1000	3000	4000	5000
Return force		kN	200	150	300	480	410
Max. Pressure		MPA	25	25	25	25	25
Slide Stroke		mm	1700	2500	1400	1500	1500
Open height		mm	2000	1500	1600	1800	1800
Slide Speed	Rapid down	mm/s	300	400	300	500	180~300
	Press	mm/s	10~30	10~30	50	9~50	10~30
	Return	mm/s	150	150	200	350	150
Worktable size	L-R	mm	2500	2800	3000	2000	2600
	F-B	mm	1500	1400	1800	1600	2500







Certificates:

Configurations of main components:



Name	Brand	Configuration	Name	Brand	Configuration
Circuit Breaker	Schneider, France	S	Security Light Curtain	SENSORC, China	S
Thermal Relay	Schneider, France	S	Motor	Quality product, China	O
Intermediate Relay	Schneider, France	S	Oil Pump	Quality product, Taiwan	O
Power Source	Schneider, France	S	Hydraulic Valve	Tian Li, Beijing	O
Button	Schneider, France	S	Sealing Element	NOK, Japan	S
Time Relay	SIEMENS, Germany	S	PLC	MITSUBISHI, Japan	O
Transformer	Bright, Wuxi	S	TPC	MCGS, China	O

Notes: S stands for standard configuration, and O stands for optional configuration



Forming solution:

Jiangdong machinery has been committed to understanding and matching customer needs, to provide customers with a "one-stop" overall solution, has become the pursuit of Jiangdong machinery goal. Therefore, Jiangdong machinery in addition to be equipped with high precision in hydro-forming equipment, safer, more reliable, and to hydro-form equipment production line automation, intelligent, flexibility, gather the automotive light weighting forming technology research and development, and in material, forming technology, mould, fixture, constantly explore accumulating core technologies such as a "turnkey" project, And to ensure that the production efficiency, forming accuracy, processing costs and other aspects of comprehensive competitiveness, and customers to achieve win-win, mutual benefit, common development.



Technical support:

Jiangdong Machinery as a customer to provide a full range of technical support is obligatory responsibility. Technical support includes pre- and after-sales support. Pre-sales technology is mainly used to fully identify the material, process, mold and equipment requirements of the customer for the production of product parts, and to achieve an organic combination, so as to improve efficiency, control quality and reduce operating costs. After-sales technical support includes operation and maintenance training, equipment maintenance items and requirements, so that customers can fully and efficiently use the equipment functions. Each customer can take advantage of our online technical assistance, submit questions and requests, and receive responses in real time.

Spare Parts:

When the Jiangdong machinery products leave the factory, according to the structure or feature of the equipment, equipped with regular wearing parts and spare parts; When the equipment needs to be replaced with spare parts, Jiangdong machinery purchases from our partner suppliers to ensure that each customer can recover the spare parts needed for the operation of the equipment in a very short time, whether within or outside the warranty period.

Maintenance:

Jiangdong machinery attaches great importance to the maintenance of products purchased by users, and quickly solves the equipment problems through our offices or partners around the world.

Remote service:

Through the Internet, under the premise of customer authorization, Jiangdong machinery can understand the status of customer equipment and provide remote diagnosis and service, without requiring our engineers to the plants for maintenance or modification of procedures, so as to shorten service time and achieve rapid response.



Training:

Training is also one of most important services for us. Train equipment operation and maintenance personnel for customers. The training content includes equipment operation principle, operation rules, safety key points, maintenance items and plans, major troubleshooting and other contents. The training site is usually the customer equipment installation plant. Through training, customers can fully understand the use and maintenance equipment.
