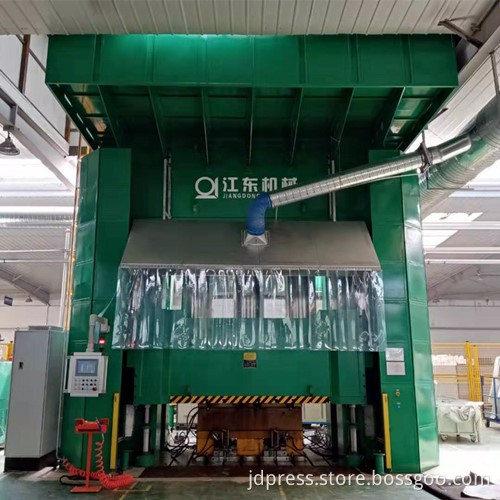

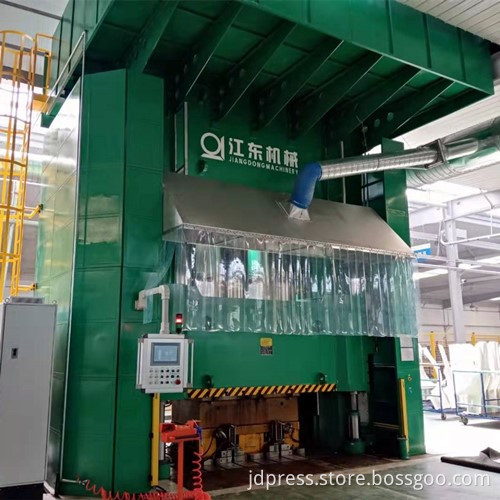

Bulk Molding Compounds Press

Composite material Hydraulic Press

It is mainly used in the molding process of thermoplastic and thermosetting fiber reinforced composites.

Hydraulic press has four columns and frame structure. In order to fit the composite material holding time relatively long forming process, hydraulic control system adopts advanced servo hydraulic control system, improve the position control, speed control, micro-opening speed control and pressure parameter accuracy. Pressure control accuracy up to ±0.1Mpa, slide position, down speed, pre-pressure speed, micro-opening speed and return speed, exhaust number and other parameters can be set and adjusted within a certain range on the touch screen, the control system energy saving, low noise, small hydraulic impact, high stability.

In order to solve the technical problems caused by the asymmetry of forming parts, such as partial load and thickness deviation of large plannar thin products, or to meet the requirements of in-mold spraying, parallel stripping and other processes. The press can be equipped with dynamic instantaneous four-angle leveling device. It adopts high-precision displacement sensor and high-frequency response servo valve. Through the dynamic closed-loop control mode of proportional servo valve or servo pump control, it can control the synchronous rectifying action of the four-cylinder executive element to achieve the four-angle leveling precision of the whole table up to ±0.05mm.

Basic Info:

Model No.: YJK71 series

Type: Four-Column & Frame type Hydraulic Press

Feature: Automation, Precision, High Efficiency

Certification: ISO9001; CE

Condition: New

Customized: Customized

Warranty: 24 Months

Additional Info

Productivity: 5 Sets/Month

Brand: Jiangdong

Place of Origin: China

Supply Ability: 5 Sets/Month

Product Description

Performance Characteristics:

In order to solve the technical problems caused by the asymmetry of forming parts, such as partial load and thickness deviation of large plannar thin products, or to meet the requirements of in-mold spraying, parallel stripping and other processes. The press can be equipped with dynamic instantaneous four-angle leveling device. It adopts high-precision displacement sensor and high-frequency response servo valve. Through the dynamic closed-loop control mode of proportional servo valve or servo pump control, it can control the synchronous rectifying action of the four-cylinder executive element to achieve the four-angle leveling precision of the whole table up to ±0.05mm..

Applicable fields:

Specification:

Certificates:

Configurations of main components:

Notes: S stands for standard configuration, and O stands for optional configuration

Forming solution:

Jiangdong machinery has been committed to understanding and matching customer needs, to provide customers with a "one-stop" overall solution, has become the pursuit of Jiangdong machinery goal. Therefore, Jiangdong machinery in addition to be equipped with high precision in hydro-forming equipment, safer, more reliable, and to hydro-form equipment production line automation, intelligent, flexibility, gather the automotive light weighting forming technology research and development, and in material, forming technology, mould, fixture, constantly explore accumulating core technologies such as a "turnkey" project, And to ensure that the production efficiency, forming accuracy, processing costs and other aspects of comprehensive competitiveness, and customers to achieve win-win, mutual benefit, common development.

Technical support:

Jiangdong Machinery as a customer to provide a full range of technical support is obligatory responsibility. Technical support includes pre- and after-sales support. Pre-sales technology is mainly used to fully identify the material, process, mold and equipment requirements of the customer for the production of product parts, and to achieve an organic combination, so as to improve efficiency, control quality and reduce operating costs. After-sales technical support includes operation and maintenance training, equipment maintenance items and requirements, so that customers can fully and efficiently use the equipment functions. Each customer can take advantage of our online technical assistance, submit questions and requests, and receive responses in real time.

Spare Parts:

When the Jiangdong machinery products leave the factory, according to the structure or feature of the equipment, equipped with regular wearing parts and spare parts; When the equipment needs to be replaced with spare parts, Jiangdong machinery purchases from our partner suppliers to ensure that each customer can recover the spare parts needed for the operation of the equipment in a very short time, whether within or outside the warranty period.

Maintenance:

Jiangdong machinery attaches great importance to the maintenance of products purchased by users, and quickly solves the equipment problems through our offices or partners around the world.

Remote service:

Through the Internet, under the premise of customer authorization, Jiangdong machinery can understand the status of customer equipment and provide remote diagnosis and service, without requiring our engineers to the plants for maintenance or modification of procedures, so as to shorten service time and achieve rapid response.

Training:

Training is also one of most important services for us. Train equipment operation and maintenance personnel for customers. The training content includes equipment operation principle, operation rules, safety key points, maintenance items and plans, major troubleshooting and other contents. The training site is usually the customer equipment installation plant. Through training, customers can fully understand the use and maintenance equipment.
