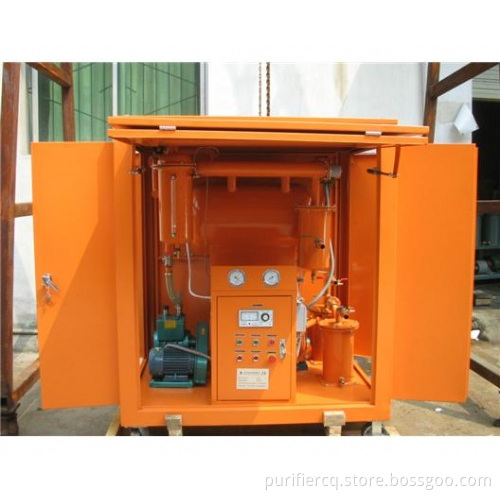

Transformer oil purifier (Auto-operation)

contact:Ms.laura

Yahoo Messenger ID: purifier_cqzn

Removes Dissolved Moisture Transformer Oil
Reduces combustible gases and oxygen
Improves oil dielectric values
Improves transformer power factor
Extends oil service life
Extends transformer service life and reliability

The oil technical data after treatment:
1. Gas content less than 0.1%
2. Impurity size less than 1 um without free carbon
3. Oil dielectric strength (breakdown voltage) more than 75KV
4. Acidity value less than 0.01 mgKOH/g
5. Dielectric loss factors at 90 degree less than 0.001

Advantages:
Comparing with single stage transformer oil purifier, Series ZYD oil purifier can increase the effectiveness more than three times, more quickly and completely dewater, degas, remove particles to get higher dielectric strength. This equipment can be used as independent vacuum source with the functions of vacuum drying and vacuum oiling for the electric plants.

OPTIONAL CHOICES

1. Available in mobile option (immovable option and trailer, etc)

2. Oil purifier can be made in ( hermetical, canopy-covering, open and frame style, etc)

3. Color of the oil purifier (can follow customer's favor.)

4. Available in installing PLC controller for making machine operation Fully-automatically

5. Equipped with Explosion Proof Materials when the machine is used
