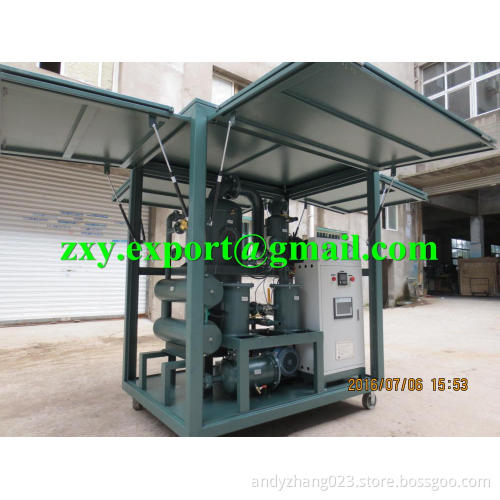

Dielectric Oil Purification Machine, Insulating Oil Filtration Plant

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: CIF

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 15 Days

Transportation:: Ocean

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100 Sets/Month
Supply Ability:	100 Sets/Month
Payment Type:	L/C,T/T
Incoterm:	CIF
Certificate:	ISO9001:2000
Transportation:	Ocean

Product Description

ZYD Double-stage transformer oil purifier can quickly remove water, trace water, gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil's dielectric strength, effectively making sure electric equipments working safely and normally. Series ZYD oil purifier is particularly suitable for treating high-grade transformer oil, super-voltage transformer oil and new transformer oil. It can be used for filtration of more than 110V substation live line work onsite. Meanwhile, Series ZYD oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling.

Dehydration: The process of removing the moisture (water content) from the body. Dehydration is one of the methods to improve the efficiency of Transformer. In Dehydration process Transformers is dried up so that the moisture and sludge could be removed out from winding

Filtration: Filtration is the process in which the oil being filtered with the help of High Vacuum Filtration Machine. Filtration helps out to eliminate the solid elements of oil.

Both of the above methods are being use to remove the Moisture, Sludge, Acidity and mainly to improve the BDV and Resistivity of Transformer`s oil. After Dehydration and Filtration of Oil the BDV of Oil should be around 60 KV.

Parameters		Unit	ZYD-30	ZYD-50	ZYD-100	ZYD-150	ZYD-200	ZYD-250	ZYD-300
Flow Rate		L/H	1800	3000	6000	9000	12000	15000	18000
Working Vacuum		MPa	-0.08 ~ -0.099
Working Pressure		MPa	≤ 0.3
Temp Range		℃	20 ~ 80
Power Supply			380V/ 50Hz/ 3Phase( As per your requirement)
Working Noise		Db	60 - 85 (Depended on the configurations)
Heating Power		KW	30	30	48	72	72	90	120
Total Power		KW	33	35	55	80	82	102	135
Inlet/Outlet Diam		MM	25	32	42	50	50	60	60
Weight		KG	450	550	750	950	1200	1850	2000
Size	Length	MM	1450	1450	1750	1850	1950	2050	2150
	Width	MM	950	1000	1250	1300	1350	1400	1450
	Height	MM	1700	1750	1950	2000	2050	2100	2150
AFTER TREATMENT
Dielectric Strength		KV	≥ 70
Water Content		PPM	≤ 5
Gas Content		%	≤ 0.1
Particle Size		μ	≤ 3
