600LPH Economic Type Dielectric Oil Filtration and Dehydration Plant

USD2500

1-0 Set/Sets
USD25000

≥1 Set/Sets

Incoterm:: CIF

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 7 Days

Transportation:: Ocean

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100 Sets/Month
Supply Ability:	100 Sets/Month
Incoterm:	CIF
Certificate:	ISO9001:2000
Transportation:	Ocean

Product Description

Why buy from us?

1. We are one of the largest manufacturers & exporters of oil purifier in China

2. We have more than 10 years export experience

3. We offer our customers high quality products at competitive price

4. We offer our customers excellent after-sales service

5. We are not satisfied until our customers are satisfied!

What can this machine do for you?

1. Removes water, trace water from oil

2. Reduces combustible gases and oxygen

3. Improves oil dielectric values

4. Improves transformer power factor

5. Extends oil service life

6. Extends transformer service life and reliability

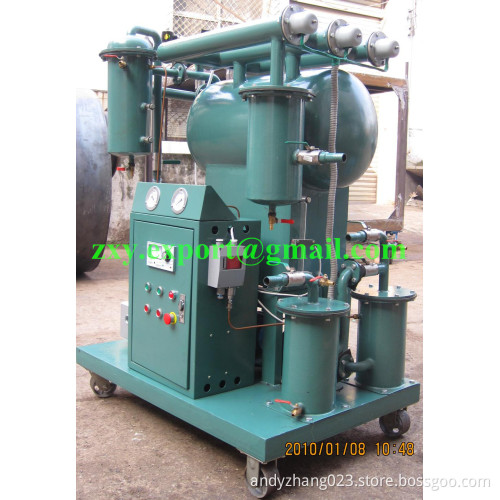

ZY series high efficiency vacuum insulating oil purifier, mainly for the power station, industrial and mining enterprises purifying the unqualified transformer oil, mutual inductor oil, switch oil and so on.

ZY series can remove water, trace water, gas, particles from oil quickly and effectively, improving oil dielectric strength. Also, this oil purifier can be used to power equipments to vacuum drying, and vacuum oiling.

Features:

1.Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.

2. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies

3. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.

4. Double-infrared liquid level sensor, pressure protective system to ensure the machine operation easy and safely.

5. Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.

6. Working with BZ insulating oil regeneration device to decolor (remove acid, oxide, free carbon) and lower dielectric loss, making the treated oil more limpidity.

Item	Unit	ZY-10	ZY-20	ZY-30	ZY-50	ZY-100	ZY-150	ZY-200	ZY-300
Flow Rate	L/min	10	20	30	50	100	150	200	300
Vacuum Degree	MPa	-0.06 ~ -0.095
Working Pressure	MPa	≤0.4	≤0.4	≤0.4	≤0.5	≤0.5	≤0.5	≤0.5	≤0.5
Temperature Range	℃	20-80
Continuous Working	Hour	150
Power Supply		380V/ 50HZ/ 3Phase(As per client`s request)
Working Noise	dB(A)	≤75	≤75	≤75	≤75	≤80	≤80	≤80	≤80
Heating Power	kW	11	13	15	30	48	58	70	85
Total Power	kW	12.5	14.5	16.5	33.5	53	65	76	94
Inlet (outlet)Caliber	mm	25	25	25	32	42	50	50	60
Weight	kg	230	250	270	300	550	700	950	1200
Dimension	Length	mm	1050	1100	1150	1200	1600	1600	1800
	Width	mm	750	850	900	950	1000	1100	1200
	Height	mm	1300	1400	1450	1500	1800	1800	1900
After Purification
Breakdown Voltage	kV	＞60
Water Content	PPM	＜5
Gas Content	%	＜0.1
Particles Size	μm	＜5
