Product Description

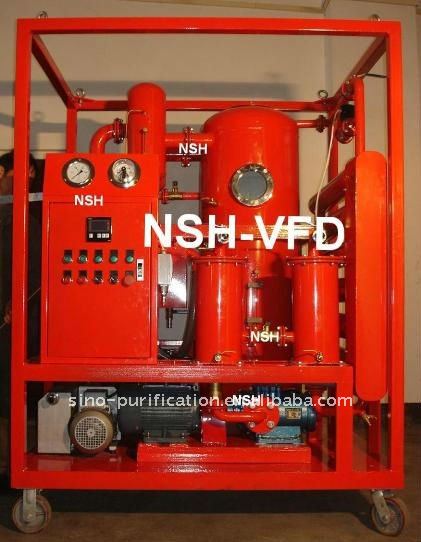

Double Stage Vacuum Insulation Oil Filtering Machine

Description

VFD series is mainly used to improve the properties of insulation oil. It can remove trace water, gas, particulate matters etc. from the insulating oil effectively and rapidly so as to boost performance of transformers, circuit breakers, mutual inductors, cable and capacitors which has insulation system. VFD series specialize in purifying branded oil, insulating oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil.

Technical Specification

Item		Unit	VFD-30	VFD-50	VFD-80	VFD-100	VFD-150	VFD-200	VFD-300
Flow Rate		L/H	1800	3000	4800	6000	9000	12000	18000
Vacuum Range		Mpa	-0.092 ~ -0.099
Working Pressure		Mpa	is less than or equal to 0.3
Max Vacuum Range		Pa	is less than or equal to 50
Temperature Range		^oC	45 ~ 80
Breakdown Voltage		kV	is more than or equal to 75
Impurity Size		m	is less than or equal to 5
Dielectric Loss		tg	is less than or equal to 0.005
Interfacial Tension		mN/m	is more than or equal to 40
Water Content		PPM	is less than or equal to 5
Gas Content		%	is less than or equal to 0.1
Power Supply			380V/50Hz(or as needed)
Working Noise		dB(A)	is less than or equal to 72			is less than or equal to 78
Heating Power		Kw	30	48	72	90	120	180	240
Total Power		Kw	33	52	77	96	128	188	252
Pipeline Diameter		mm	DN20	DN25	DN32	DN32	DN40	DN50	DN65
Net Weight		Kg	600	800	1000	1300	1800	2100	2400
Size	length	mm	1500	1600	1700	1900	2200	2300	2350
	width	mm	1100	1400	1500	1600	1700	1750	1850
	high	mm	1750	1800	1850	1900	2100	2250	2250

Remark:

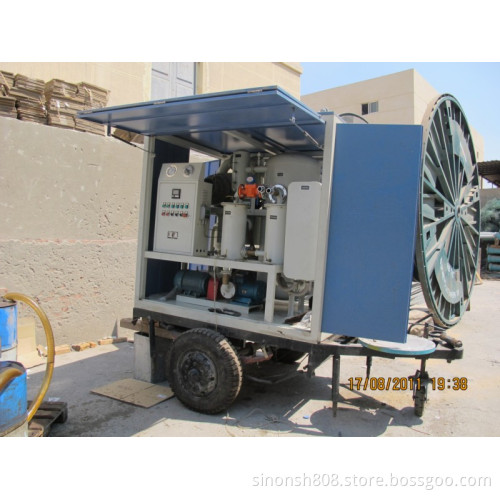

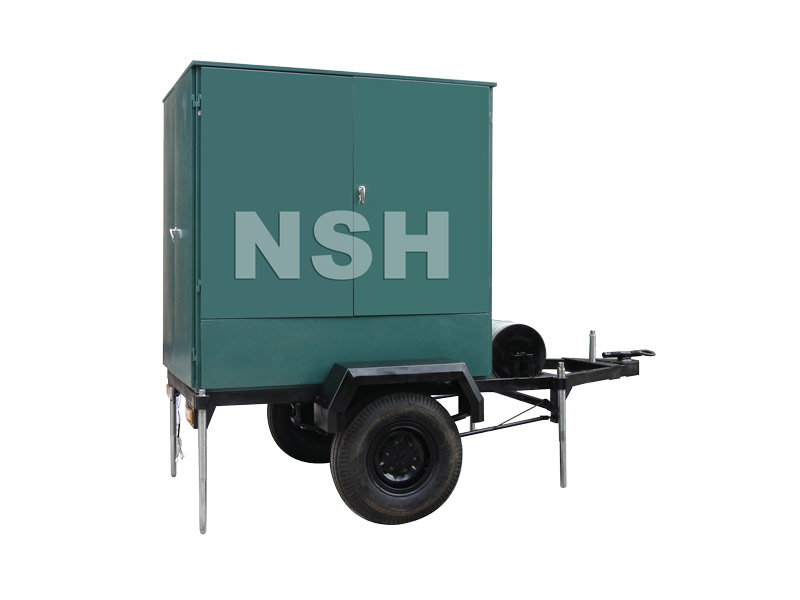

They can be equipment of kinds of profiles which can meet customers' requirement including single axle trailer, double axle trailer and fixed style.
