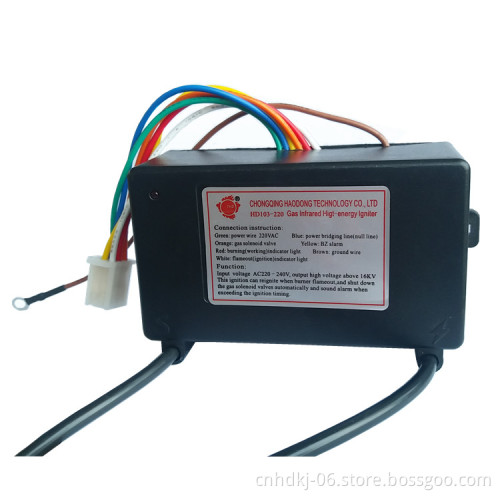

Industrial Oven Infrared Gas Burner Igniters AC 220 Voltage

Industrial Oven Infrared Gas Burner Igniters AC 220 Voltage

Gas Burner Igniters working principle:

This Gas Burner Igniters is a pulsed high-frequency oscillator composed of electronic components. The high-frequency voltage generated by the oscillator is boosted to a high voltage of 16KV by a step-up transformer to perform tip discharge, and the spark is ignited by the discharge spark. Gas. This igniter has a high ignition rate and can be continuously discharged. Press the knob and the pulse igniter starts to ignite; release the knob and the pulse stops ignition.

Features:

• Stable ignition frequency, long arc and reliable performance.
• Pulse discharge, the total discharge time is generally 6-15S.
• Powerful, can directly ignite liquid fuels such as atomized heavy oil.
• Ignition rod, high-pressure rubber line, igniter, etc. are convenient to connect, safe and reliable.
• Electric ignition or switching control ignition:
   1.Ignite the gas again automatically if the fire went out accidentally.
  2.Automatic monitoring or photoelectric control. If the fire went out,it can give warning automatically.
  3.If it failed to ignite the gas or the fire went out accidentally, it can cut off the gas supply immediately.
  4.Technology of Single-chip and digital microcomputer.

Application:

The Gas Burner Igniters can be used for direct ignition of gas fuel, liquid fuel burner or torch, no need for other auxiliary ignition means, widely used in various water heater industrial furnace kiln gas fuel or liquid fuel burner flame flame ignition, set by yourself The ignition time realizes stable ignition of the combustion system, which is convenient, quick, saves time and labor, and has high reliability.

Control System:

The main functions of the pulse ignition controller system: safety self-test; ignition control; flameout protection; fault alarm.The whole system is controlled by the ignition switch. When the user presses the ignition switch, the ignition needle generates a high-pressure spark, and the flame detection determines whether the ignition is successful. If there is a flame signal, the ignition is stopped, and the feedback detection function is activated. The whole process can effectively avoid the situation that the gas valve is opened and not burned, which greatly improves the safety and reliability of the product.

The Gas Burner Igniters controller system adds a pulse ignition control circuit, a solenoid valve control, a flame detection needle, and the like to an ordinary gas stove. That is, when working, the first control signal is outputted by the single chip microcomputer to trigger the ignition control circuit and the flame detection feedback circuit, and the flame is detected by the flame detection feedback circuit, and the detection result is fed back to the single chip microcomputer, and the single chip microcomputer can control the electromagnetic valve according to the input flame detection signal. Open and close, thus ensuring that when the gas stove is in an unexpected flameout and tempering state, the control system can close the solenoid valve in time, shut off the gas passage, and avoid the safety accident caused by the flameout.

The system design uses single-chip microcomputer as the main control device to realize the design of the gas stove pulse ignition controller, update the existing gas stove and improve the product quality. By adding a pulse ignition circuit and a flame detection circuit to the hardware, the ignition control sequence is optimized in the software, thereby ensuring the stability and safety of the entire gas system.
