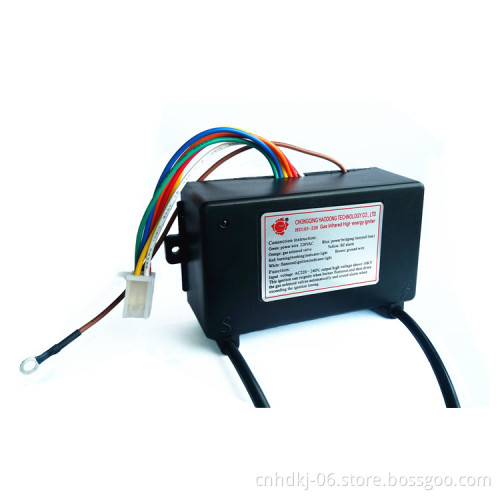

Electric pulse igniter, referred to as a pulser, is a pulsed principle that generates a continuous instantaneous electric spark to ignite a gas-fired electronic product. Most of the early pulsers used dry batteries as the power source, but most of the products in recent years have switched to AC as the power source. With the improvement of industrial technology, the production cost of the pulser has been reduced, and it has been widely applied to the middle and high-end gas appliance products, which greatly facilitates the use of customers and improves the level of product automation. Compared with the early piezoelectric ignition device, the pulse ignition stability is high and the operation is simple.

Working principle:

The pulse igniter is a pulse high-frequency oscillator composed of electronic components. The high-frequency voltage generated by the oscillator is boosted to a high voltage of 16KV by a step-up transformer to perform tip discharge, and the spark is ignited by the discharge spark. Gas. This igniter has a high ignition rate and can be continuously discharged. Press the knob, the pulse igniter starts to ignite; release the knob, pulse stop ignition.

Features:

1. The ignition frequency is stable, the arc is long, and the performance is reliable;
2. Pulse discharge, the total discharge time is generally 6-15S;
3. Powerful, can directly ignite liquid fuel such as atomized heavy oil;
4. The ignition rod, high-pressure rubber line and igniter are convenient to connect, safe and reliable;
5. Ignition head, ignition time, ignition power can be manufactured according to customer requirements.

Application:

The pulse igniter can be used for direct ignition of gas fuel, liquid fuel burner or torch. It does not need other auxiliary ignition means. It is widely used in the flame igniting of various water heater industrial kiln gas fuel or liquid fuel burners. The ignition time realizes stable ignition of the combustion system, which is convenient, quick, saves time and labor, and has high reliability.

How does the electric pulse igniter work?

The main functions of the pulse ignition controller system: safety self-test; ignition control; flameout protection; fault alarm.
The whole system is controlled by the ignition switch. When the user presses the ignition switch, the ignition needle generates a high-pressure spark, and the flame detection determines whether the ignition is successful. If there is a flame signal, the ignition is stopped, and the feedback detection function is started. The whole process can effectively avoid the situation that the gas valve is opened and not burned, which greatly improves the safety and reliability of the product.

The pulse ignition controller system adds a pulse ignition control circuit, a solenoid valve control, a flame detection needle, and the like to an ordinary gas stove. That is, when working, the first control signal is outputted by the single chip microcomputer to trigger the ignition control circuit and the flame detection feedback circuit, and the flame is detected by the flame detection feedback circuit, and the detection result is fed back to the single chip microcomputer, and the single chip microcomputer can control the electromagnetic valve according to the input flame detection signal. Open and close, thus ensuring that when the gas stove is in an unexpected flameout and tempering state, the control system can close the solenoid valve in time, shut off the gas passage, and avoid the safety accident caused by the flameout.

The system design uses single-chip microcomputer as the main control device to realize the design of the gas stove pulse ignition controller, update the existing gas stove and improve the product quality. By adding a pulse ignition circuit and a flame detection circuit to the hardware, the ignition control sequence is optimized in the software, thereby ensuring the stability and safety of the entire gas system.
