Honeycomb Ceramic Heating Tiles for Gas Infrared Burner with Catalytic

Honeycomb Ceramic Heating Tiles for Gas Infrared Burner with Catalytic

$3.00 - $5.00/Piece/Pieces

Min. Order:: 10 Piece/Pieces

Min. Order:: 10 Piece/Pieces

Transportation:: Express, Ocean, Land, Air

Port:: Chongqing, China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	10000 Piece/Pieces per Month Depending on customer
Payment Type:	L/C,T/T,PAYPAL
Transportation:	Express,Ocean,Land,Air
Port:	Chongqing, China

Product Description

Products Description

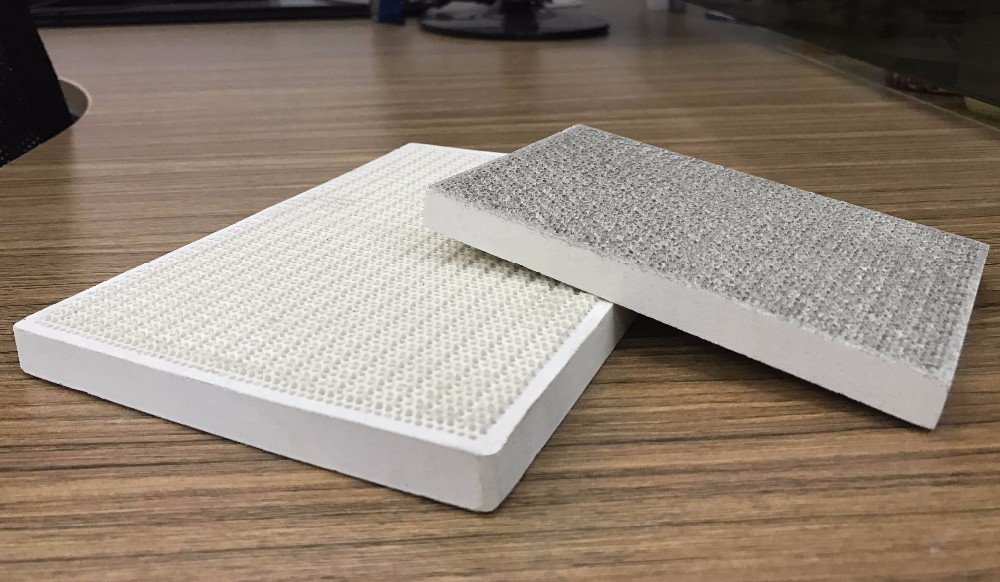

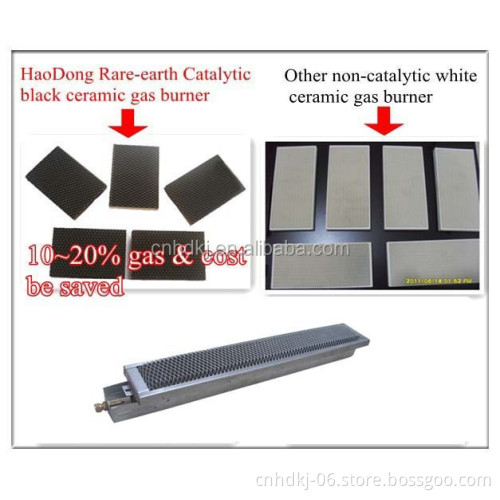

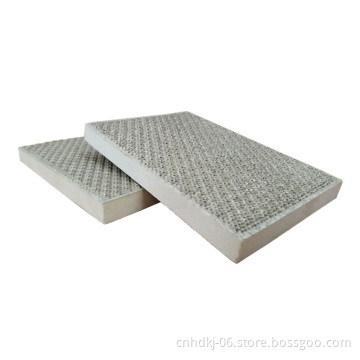

Ceramic Catalytic Plate for Gas Infrared Burner or Heater

Specification:

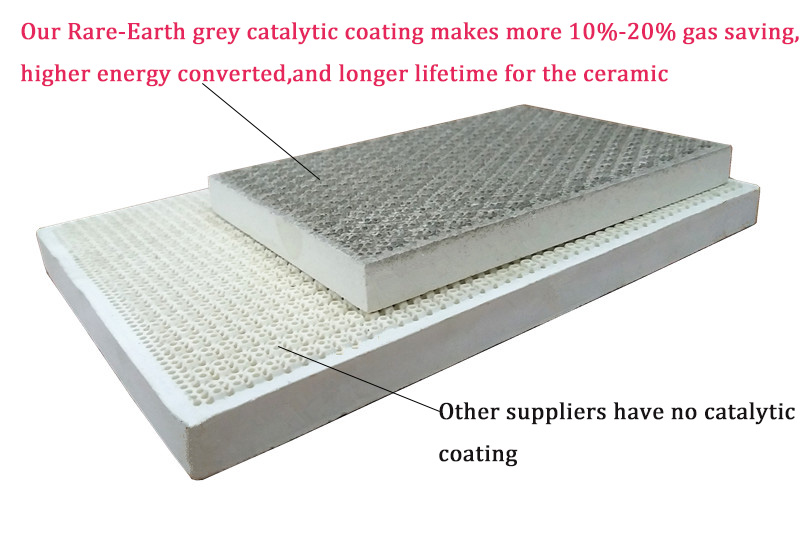

This infrared ceramic plate is an alternative product for noble metal catalyst .It use rare earth as catalyst, which is with
relatively low cost, higher activity than noble metal. What’s more with rare earth catalyst, the surface burning temperature is more stable kept in 900℃than noble metal, like platinum. The burning occurs on the covering catalyst and radiate infrared ray,energy transfer can reach 95%. But the common infrared burner, it radiates by heating the ceramic, transfer rate only 80~85%. So infrared catalytic ceramic plate will save much energy than other common infrared plate.

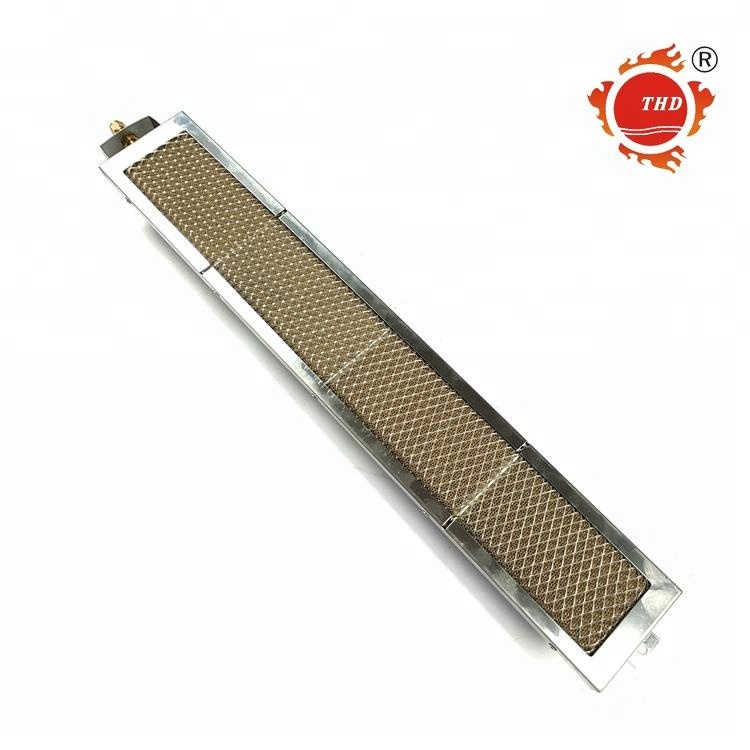

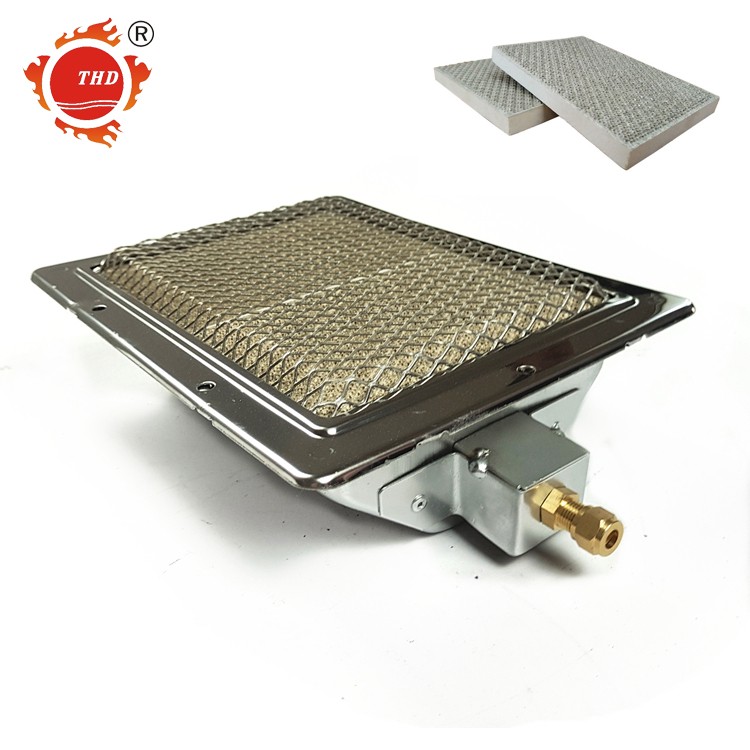

Gas Industrial Infrared Burner,Heater Main Specification:

Item	Index	Specifications
Material	Cordierite	Round Size:Φ116×13mm, Φ155×13mm, Φ158×13mm, Φ161×13mm, Φ173×13mm, customized Square Size: 129x75x13mm, 129x78x13mm, 129x88x13mm, 130x75x13mm, 133x92x13mm, 132×92×13mm, 135×94x14mm, 135×47×14mm, 150×78×13mm, 150×88×13mm, 163×72×1.5mm, customized Fan-shaped size: customized

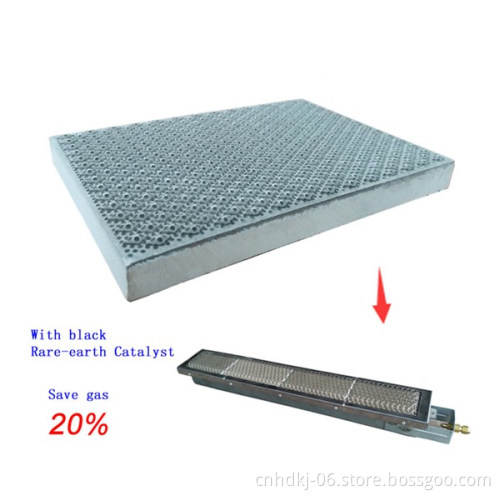

Special Function	Rare-earth catalyst save 20~50% energy
Water absorption	50.4%
Open Porosity	61%
Specific gravity	0.9-1.10Kg/cm3
Temperature softening	>1280 °C
Cooking Surface Temperature	1000-1200
COx Release	≤80ppm
NOx Release	≤10ppm

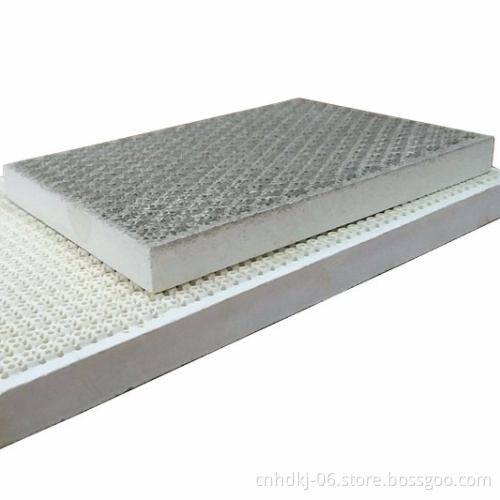

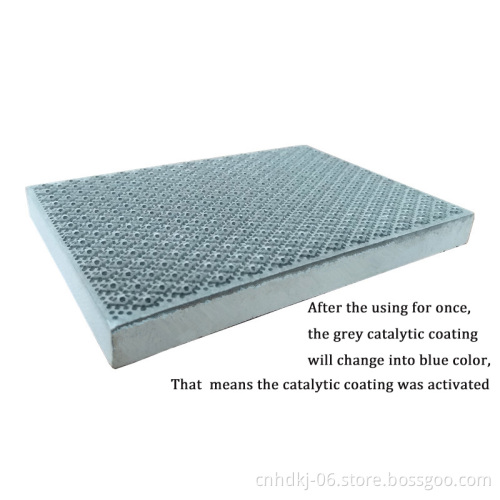

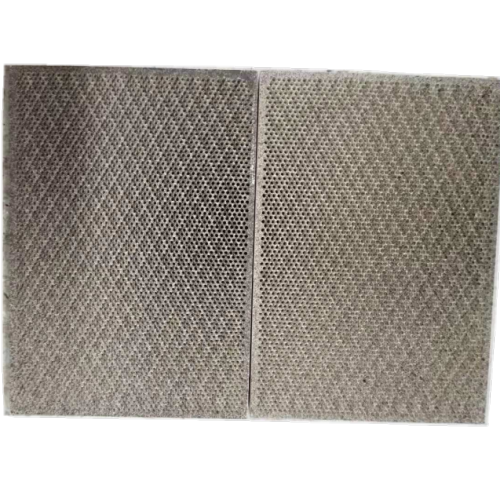

Details Images

Appliation

Our Advantages

1. Natural gas (NG), liquefied petroleum gas, (LPG) fuel gas on high quality ceramic plate which coating catalyst achieve no flame catalytic combustion and heat release.
2. In catalytic combustion process, heat mainly infrared radiation, the efficient way to avoid the loss caused by light and
reaching the highest heat energy utilization.
3. Catalytic combustion plate which coating high oxygen storage materials, can guarantee the gas burning fire and burn holes never carbon, the service life of the product is far more than ordinary ceramic plate.
4. High selectivity of combustion catalyst effectively restrain the formation of the poisonous and harmful material, rarely
produces NOx, CO and CH pollutants. Catalytic combustion emissions are low, more friendly to environment.
