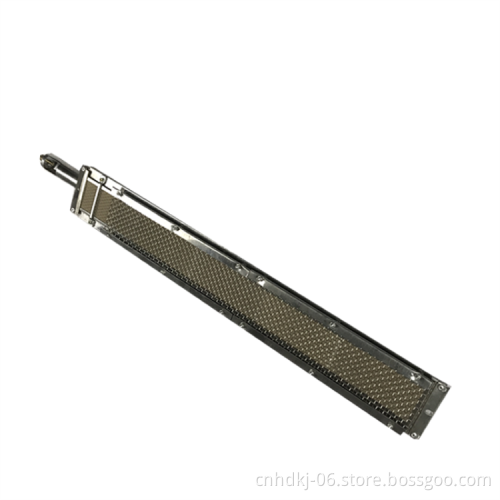

Shawarma/doner kebab machine infrared ceramic natural gas heater parts HD668

Shawarma/doner kebab machine infrared ceramic natural gas heater parts HD668

$35.00

100-499 Piece/Pieces
$31.00

≥500 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Express, Ocean, Land, Air

Port:: Any port of China.

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	5000 Piece/Pieces per Month
Payment Type:	L/C,T/T,Paypal
Transportation:	Express,Ocean,Land,Air
Port:	Any port of China.

Product Description

infrared ceramic natural gas heater parts details

As we know, usually, there are three ways to transfer heat, Radiation, Convection, Conduction and their thermal efficiency decrease in turn. Most Equipment is mainly by convection to heat air first and then, the heated air transfer to object. Heat loss is big. But, differently, infrared burner heat object directly by radiation and transfer rate will be much higher, usually it can save 10~20% gas energy and cost.

For common ceramic burner, it heats ceramic plate and then ceramic plate release infrared ray. But Haodong infrared burner covers a process rare earth as catalyst, make the flameless burning occurred at the ceramic surface and radiate directly. So, the energy transfer rate is much higher than common ceramic burner.

Model	Dimension	Weight	Gas type	Heat Output			Consumption
	mm	kg		BTU/h	Kcal/h	NG (m3/h)	LPG (kg/h)
HD220	22017060	0.9	LGP/NG / Biogas	10000	2520	0.31	0.22
HD400	4008060	0.7	LGP/NG	9030	2300	0.28	0.20
HD538	5388565	1.4	LGP/NG	13500	3400	0.42	0.29
HD668	6688565	1.7	LGP/NG	16600	4180	0.51	0.36

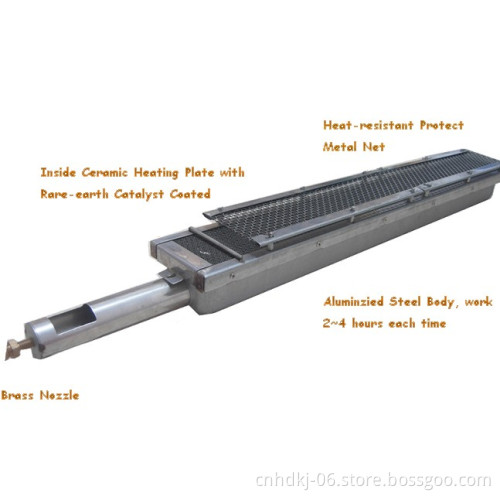

infrared ceramic natural gas heater parts materials:

1. Shell: aluminized steel sheet
2. Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated
3. Nozzle: brass
4. Up cover: stamped stainless iron

gas heater parts

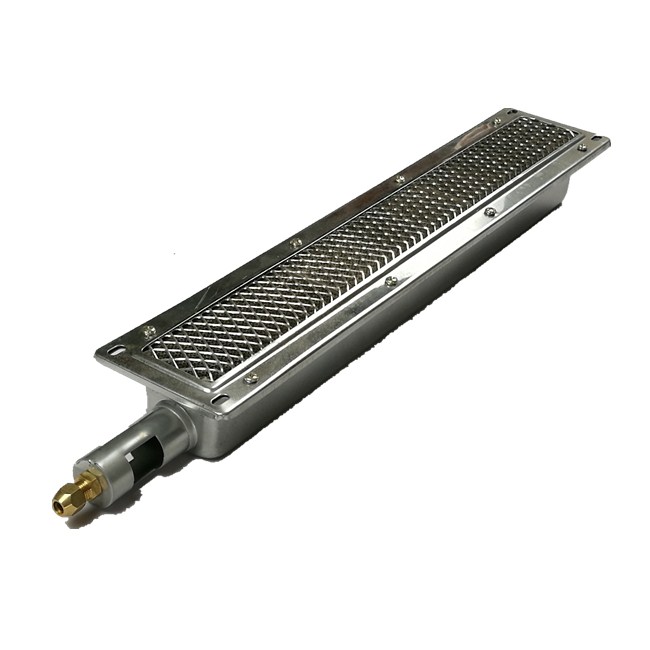

infrared ceramic natural gas heater parts HD220

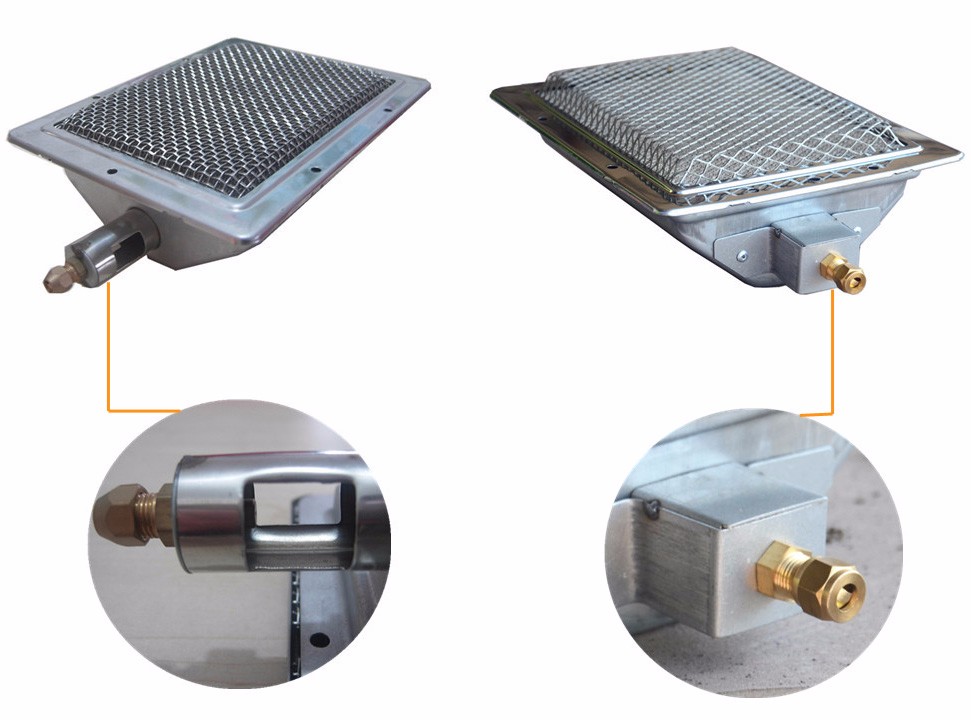

It has 2 designs, only gas pipe and wire mesh is different.

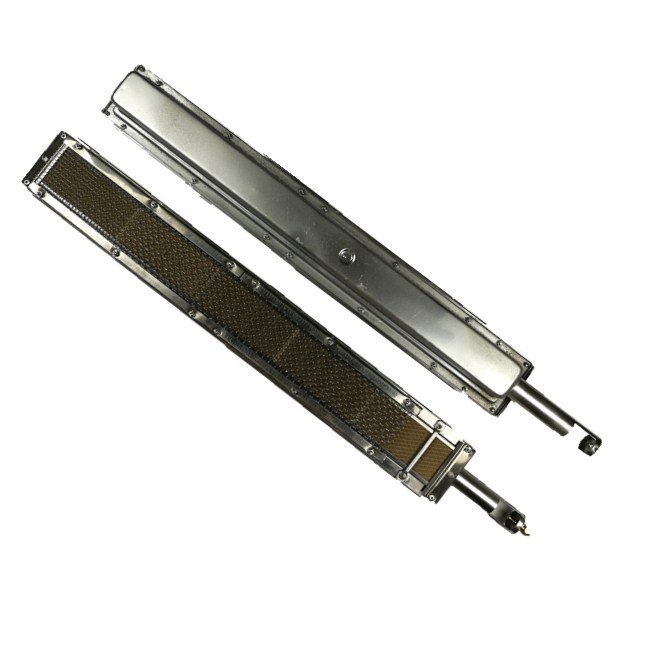

infrared ceramic natural gas heater parts HD400

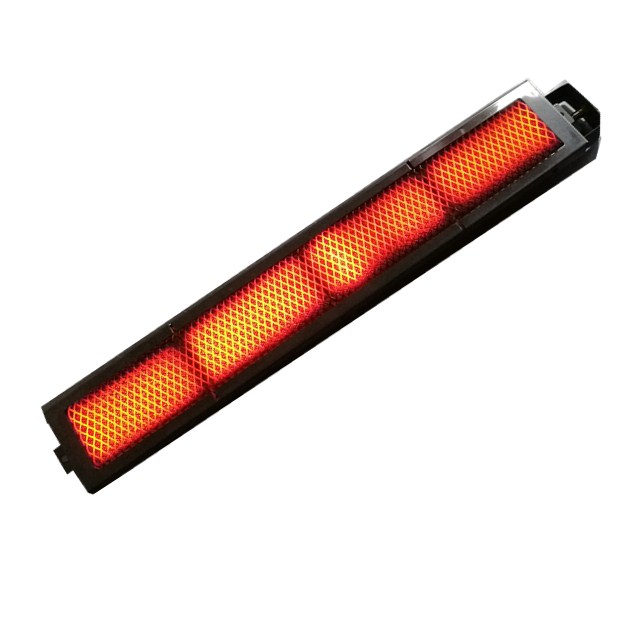

infrared ceramic natural gas heater parts HD538

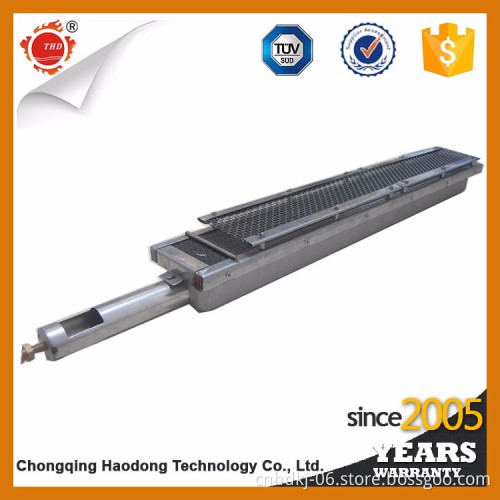

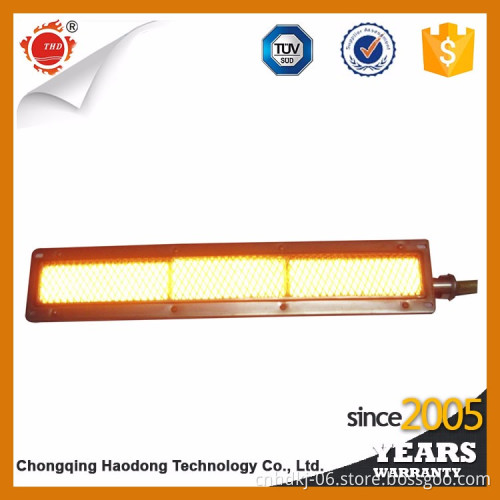

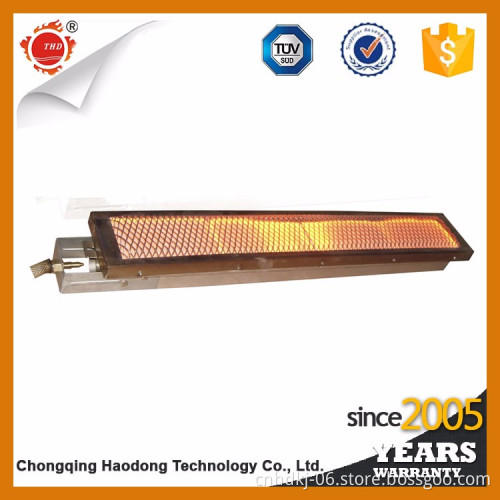

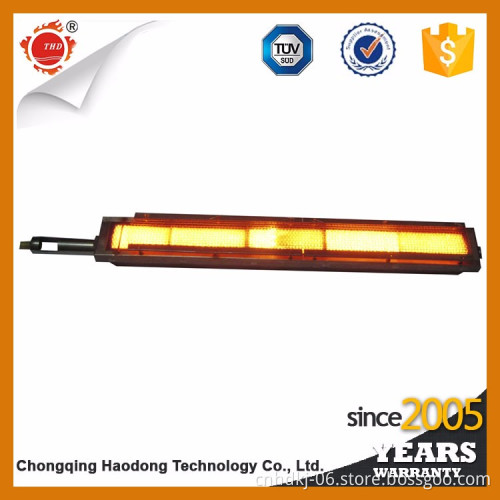

infrared ceramic natural gas heater parts HD668

gas heater parts use

infrared ceramic natural gas heater parts for shawarma machine.

infrared ceramic natural gas heater parts for chicken roaster.

infrared ceramic natural gas heater parts for gas cooker.

infrared ceramic natural gas heater parts for bbq grill machine.

infrared ceramic natural gas heater parts for conveyor grill machine.

infrared ceramic natural gas heater parts for doner kebab machine.

Advantages

20% gas consumption saved, less gas Emission

The gas heater applied catalyst technology on ceramic plates, which make burning fully and save 20% gas than normal gas heater.

Besides, it make less gas emission.

We are the Only Chinese company use catalytic on infrared gas heater.
