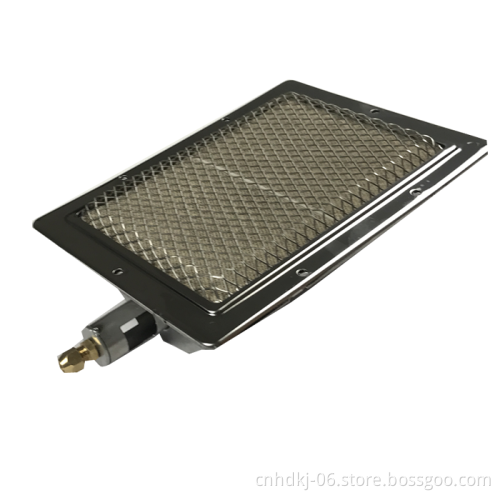

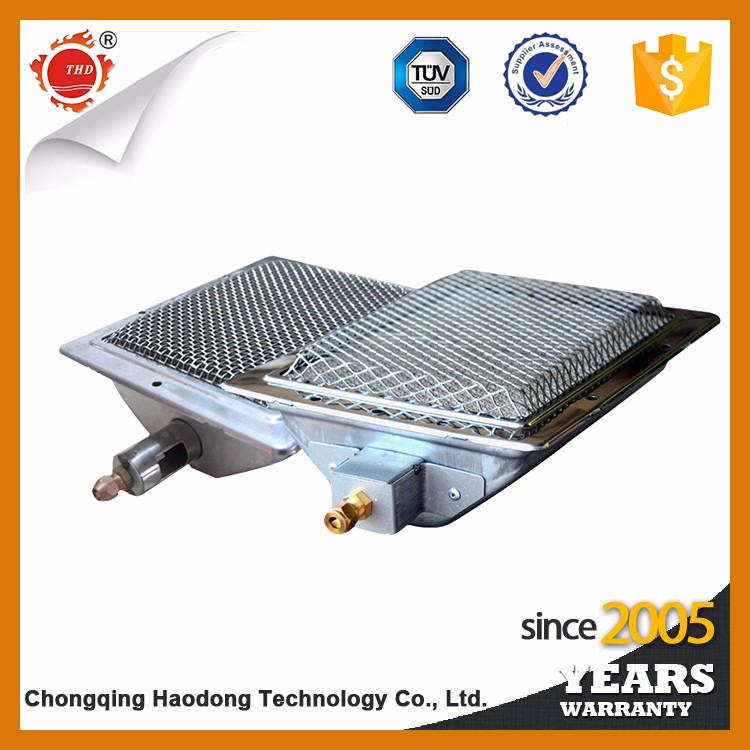

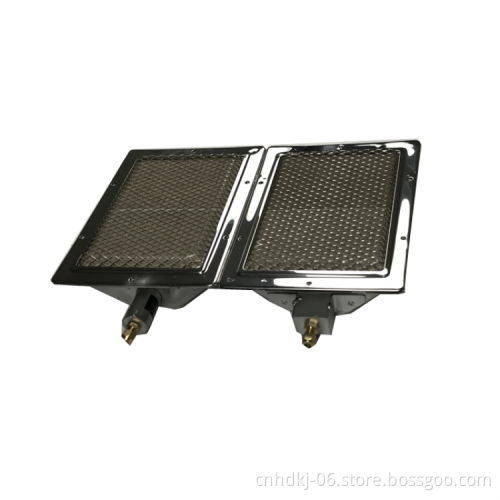

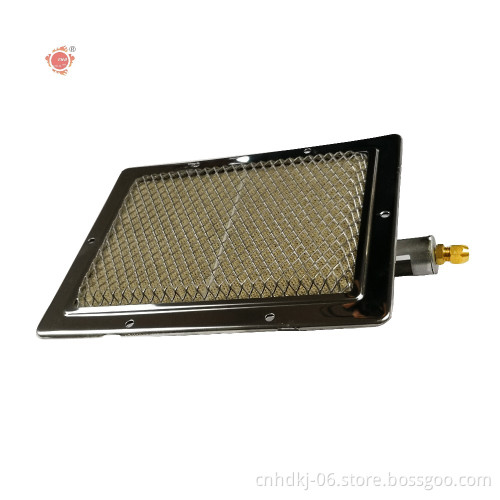

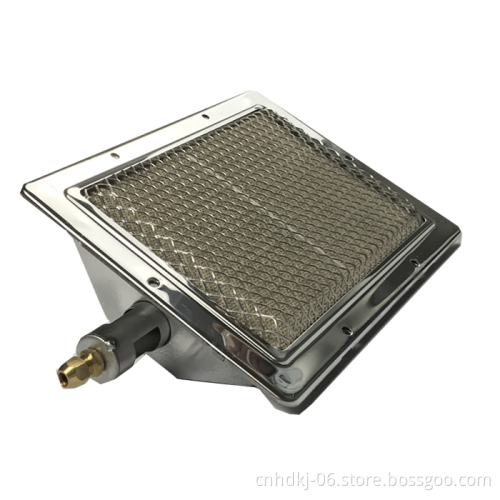

Doner kebab machine ceramic infrared natural gas burner HD220

Doner kebab machine ceramic infrared natural gas burner HD220

$15.00/Piece/Pieces

Min. Order:: 100 Piece/Pieces

Min. Order:: 100 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Doner kebab machine ceramic infrared natural gas burner HD220 details

As we know, usually, there are three ways to transfer heat, Radiation, Convection, Conduction and their thermal efficiency decrease in turn. Most Equipment is mainly by convection to heat air first and then, the heated air transfer to object. Heat loss is big. But, differently, infrared burner heat object directly by radiation and transfer rate will be much higher, usually it can save 10~20% gas energy and cost.

Model	Dimension	Weight	Gas type	Heat Output			Consumption
	mm	kg		BTU/h	Kcal/h	NG (m3/h)	LPG (kg/h)
HD220	22017060	0.9	LGP/NG / Biogas	10000	2520	0.31	0.22
HD400	4008060	0.7	LGP/NG	9030	2300	0.28	0.20
HD538	5388565	1.4	LGP/NG	13500	3400	0.42	0.29
HD668	6688565	1.7	LGP/NG	16600	4180	0.51	0.36

Doner kebab machine ceramic infrared NG gas burner materials:

1. Shell: aluminized steel sheet
2. Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated
3. Nozzle: brass
4. Up cover: stamped stainless iron

Propane jet burner

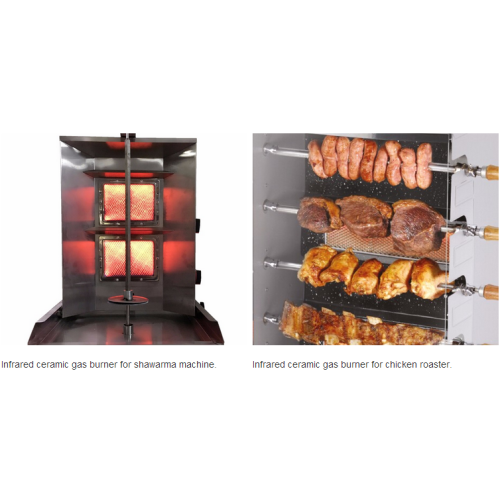

gas burner usage

Advantages

20% gas consumption saved, less gas Emission

The infrared heater applied catalyst technology on ceramic plates, which make burning fully and save 20% gas than normal gas heater.

Besides, it make less gas emission.

We are the Only Chinese company use catalytic on infrared gas heater.
