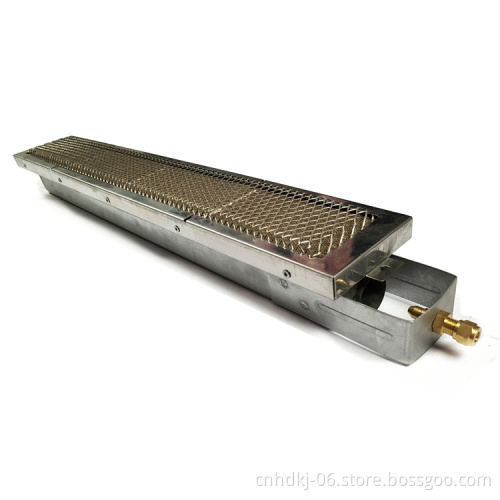

Catalyst Ceramic Infrared Grill Gas BBQ burner

Catalyst Ceramic Infrared Grill Gas BBQ burner

$25.00 - $40.00/Piece/Pieces

Min. Order:: 2 Piece/Pieces

Min. Order:: 2 Piece/Pieces

Transportation:: Express, Ocean, Land, Air

Port:: Chongqing, China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	100000 Unit/Units per Year depending on the customer
Payment Type:	L/C,T/T,MoneyGram,Paypal, E-check, Trade assurance
Transportation:	Express,Ocean,Land,Air
Port:	Chongqing, China

Product Description

Our Company

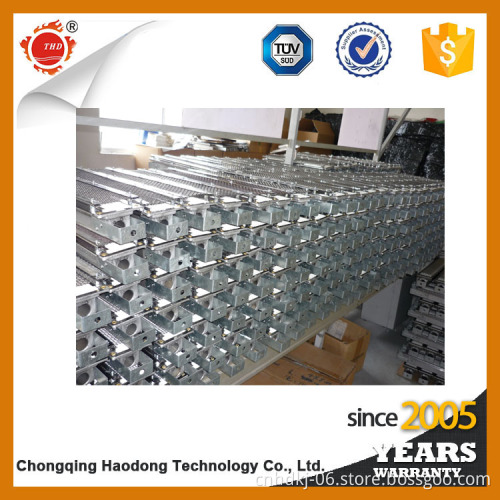

Chongqing HaoDong Technology Co.,Ltd

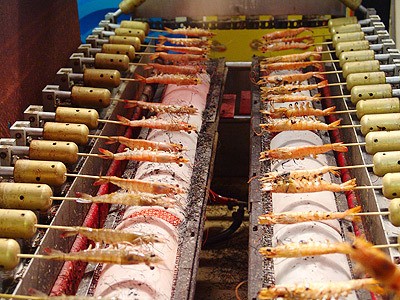

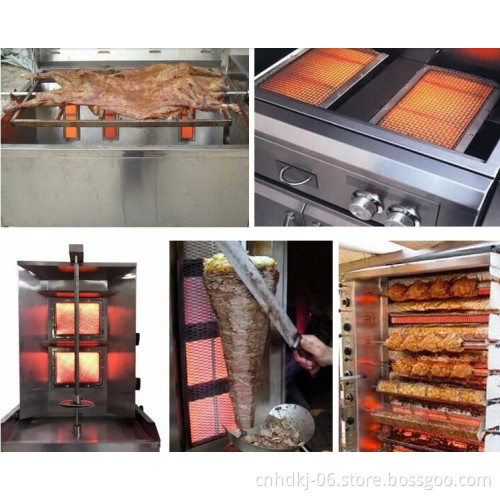

Established in 2005, Chongqing Haodong Technology Co., Ltd is a manufacturer specialized in the research, development and production of infrared catalytic burner,and also the first and only company now in China who apply rare-earth catalytic combustion technology in Infrared Gas BBQ burner.The infrared burner applied in coating, foods drying and baking, drying process, heating at low and middle temperatures, warming, heat preservation and so on.

Our Certifications

Product Description

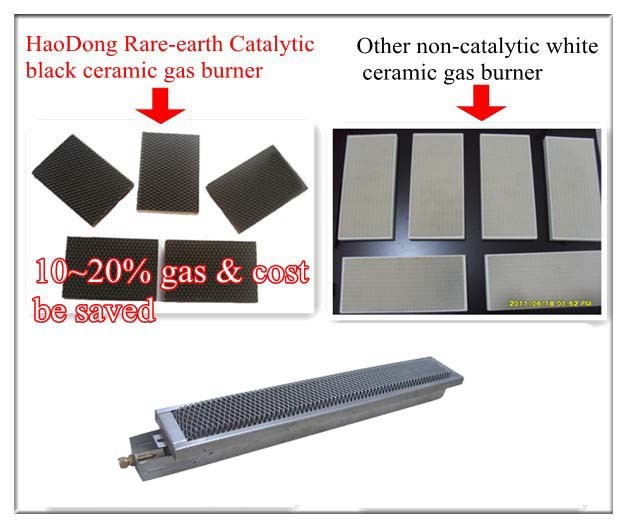

There are three ways to transfer heat, Radiation, Convection, Conduction and their thermal efficiency decrease in turn. Most Equipment is mainly by convection to heat air first and then, the heated air transfer to object. Heat loss is big. But, differently, infrared gas burner heat object directly by radiation and transfer rate will be much higher, BBQ Infrared Catalytic Gas Flameless Burner can save 20% gas energy and cost.

Model	Dimension	N.G.	Gas Type	Heat output			Gas Comsuption		power
	mm	KG	NG/LPG	BTU/h	Kcal/hr	NG(m2/h)	LPG(kg/h)	kw
HD220	22017060	0.9	NG/LPG	10000	2520	0.31	0.22	2.94
HD400	4008060	0.7	NG/LPG	9030	2300	0.28	0.2	2.72
HD538	5388565	1.4	NG/LPG	13500	3400	0.42	0.29	3.9
HD668	6688565	1.7	NG/LPG	16600	4180	0.51	0.36	4.8
HD270	2708565	0.5	NG/LPG	9030	2300	0.28	0.2	2.72
HD10	1706560	0.42	NG/LPG	7500	2100	0.21	0.16	1
HD20	3006560	0.65	NG/LPG	9500	2800	0.27	0.2	1.8
HD30	3406560	0.85	NG/LPG	10000	2900	0.29	0.22	2

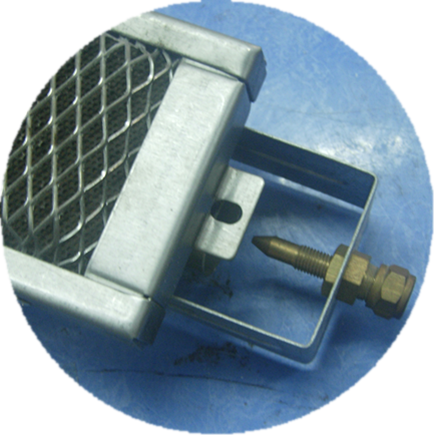

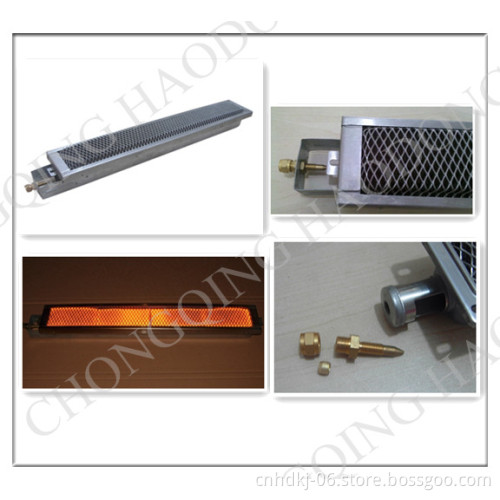

Products Detail

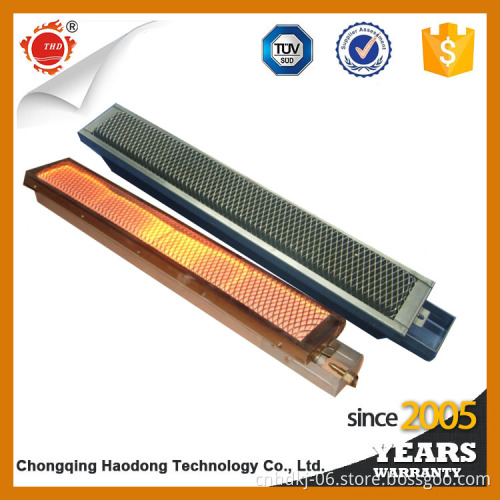

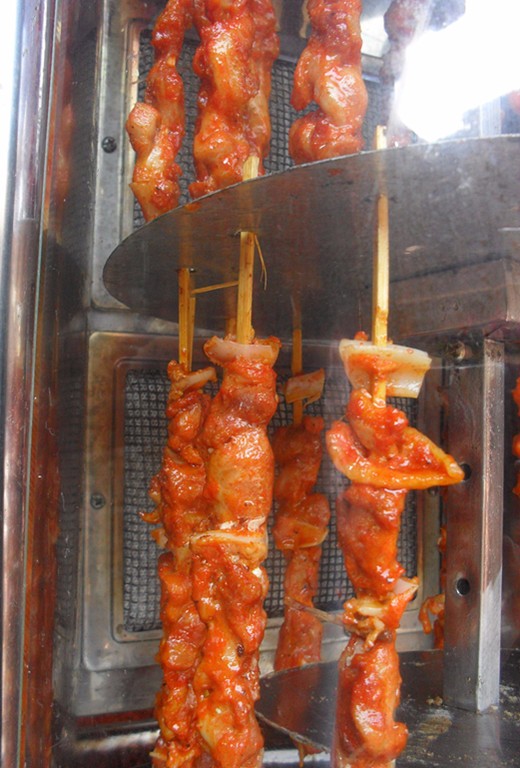

BBQ Infrared Catalytic Gas Flameless Burner Advance
1.Flameless combustion, also suitable for powder products baking process
2.Energy saving:conversion rate:≥90%
3.Environmental protection:CO≤80ppm;NOx≤10ppm;CHx≤50ppm
4.Taking full usage of heat:95% of energy released in the form of infrared ray ;heating the objects directly
5.Long life:≥11000hr
6.Easily installed
