Infrared gas cooker with bbq burner HD220

Infrared gas cooker with bbq burner HD220

$20.00

10-99 Piece/Pieces
$18.00

≥100 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

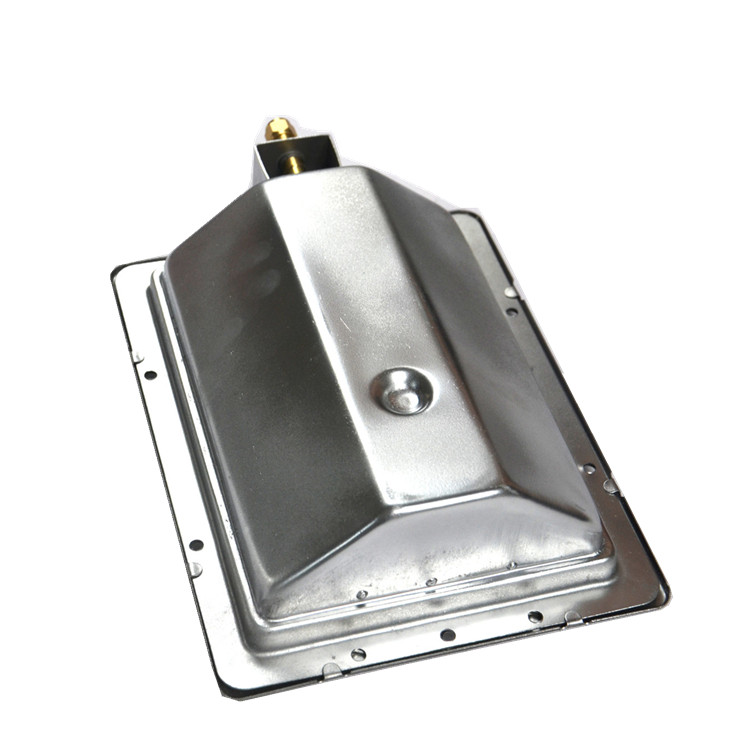

Product Name: Infrared gas cooker with bbq burner

As we know, usually, there are three ways to transfer heat, Radiation, Convection, Conduction and their thermal efficiency decrease in turn. Most Equipment is mainly by convection to heat air first and then, the heated air transfer to object. Heat loss is big. But, differently, infrared burner heat object directly by radiation and transfer rate will be much higher, usually it can save 10~20% gas energy and cost.

For common ceramic burner, it heats ceramic plate and then ceramic plate release infrared ray. But Haodong infrared burner covers a process rare earth as catalyst, make the flameless burning occurred at the ceramic surface and radiate directly. So, the energy transfer rate is much higher than common ceramic burner.

Model	Dimension	Weight	Gas type	Heat Output			Consumption
	mm	kg		BTU/h	Kcal/h	NG (m3/h)	LPG (kg/h)
HD220	22017060	0.9	LGP/NG / Biogas	10000	2520	0.31	0.22
HD400	4008060	0.7	LGP/NG	9030	2300	0.28	0.20
HD538	5388565	1.4	LGP/NG	13500	3400	0.42	0.29
HD668	6688565	1.7	LGP/NG	16600	4180	0.51	0.36

Materials:

1. Shell: aluminized steel sheet
2. Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated
3. Nozzle: brass
4. Up cover: stamped stainless iron

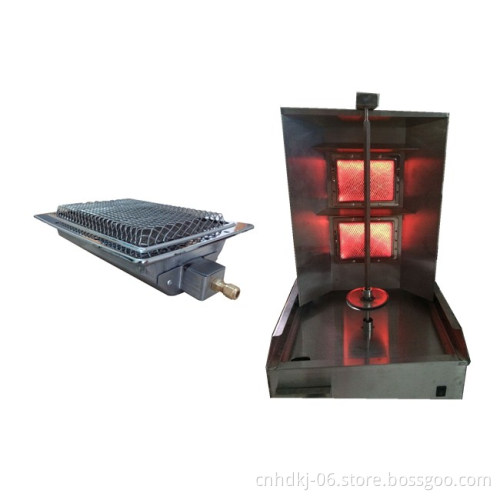

Gas shawarma burner

Gas burner usage

Cheap india style burner gas stove for shawarma machine.

Infrared gas burner for chicken roaster.

Infrared gas burner for gas cooker.

Infrared gas burner for bbq grill machine.

Advantages

20% gas consumption saved, less gas Emission

The infrared heater applied catalyst technology on ceramic plates, which make burning fully and save 20% gas than normal gas heater.

Besides, it make less gas emission.

We are the Only Chinese company use catalytic on infrared gas heater.
