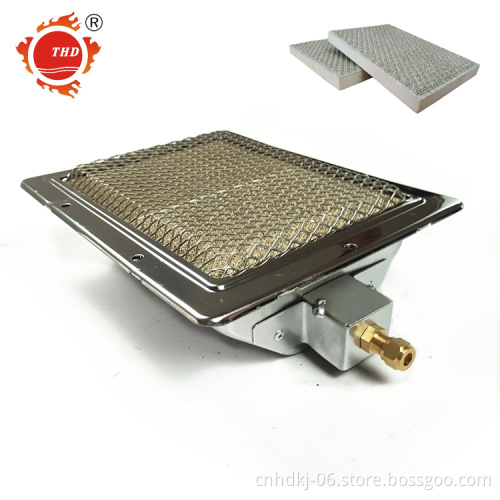

Easy Installation Gas,LPG Ceramic Plate Infrared IR Gas BBQ Grill Burner HD220

Easy Installation Gas,LPG Ceramic Plate Infrared IR Gas BBQ Grill Burner HD220

$13.00 - $25.00/Piece/Pieces

Min. Order:: 2 Piece/Pieces

Min. Order:: 2 Piece/Pieces

Transportation:: Express, Ocean, Land, Air

Port:: Chongqing, China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	10000 Piece/Pieces per Month Easy Installation Ceramic Plate IR Gas Burner HD220
Payment Type:	L/C,D/P,D/A,T/T,MoneyGram,PAYPAL
Transportation:	Express,Ocean,Land,Air
Port:	Chongqing, China

Product Description

Products Description

Gas,LPG Infrared Ceramic Catalytic Burner,Heater for BBQ Grill BBQ Stove HD220

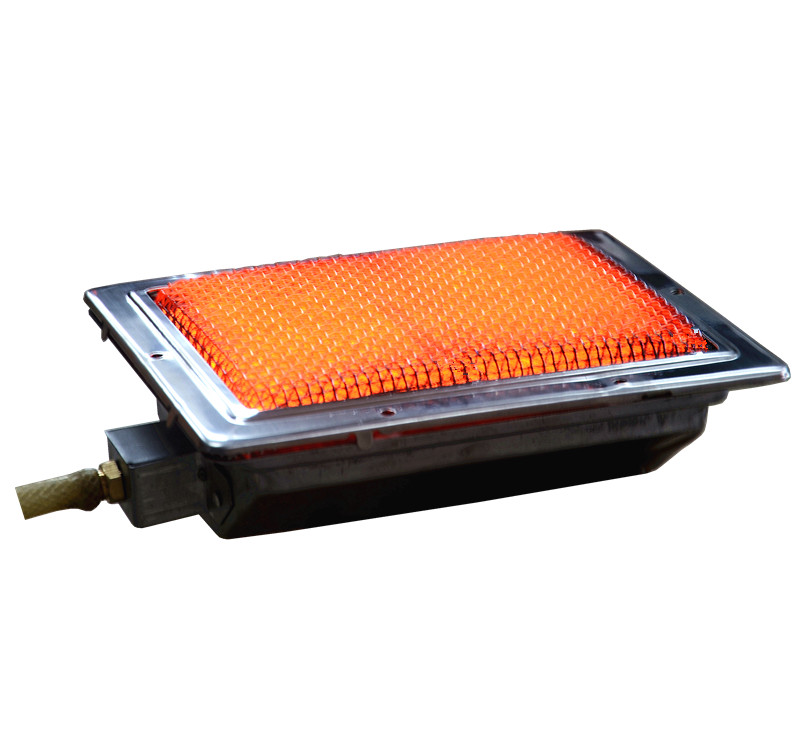

Haodong Infrared Burner covers a process rare earth as catalyst, make the flameless
burning occurred at the ceramic surface and radiate directly. So, the energy transfer rate is much higher than common ceramic burner.

Gas Infrared Burner Technical Parameters

SN	Items	Technical Parameters
1	Kinds of Gas	NG/LPG/Oil Field Gas/Artificial Gas
2	Perfect Combustion Temperature	≤380℃
3	Heat Source Temperature	850℃
4	Heating-up Temperature Range	35℃-350℃
5	Wavelength Range	4 um -15 um
6	Working Pressure	2000pa(NG)/2800pa(LPG)~~5000pa
7	Life Span	Above 11000hrs
8	Waste Gas Emission	CO≤80ppm;NOx≤10ppm;CHx≤50ppm
9	Conversion Rate	Above 90%

Gas BBQ Grill Infrared Burner Main Material:

1.Shell: Aluminized steel sheet
2. Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated
3. Nozzle: brass
4. Up cover: Aluminized steel sheet

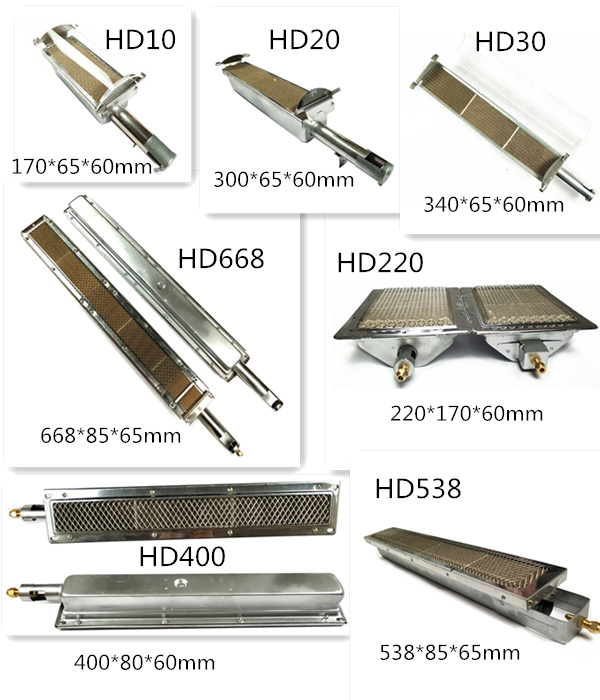

Gas BBQ Grill Infrared Burner Main Specification:

Model	Dimension(mm)	N.W(Kg)	Heat Output			Gas Consumption			Gas Resource
Model	Dimension(mm)	N.W(Kg)				KW/h	Kcal/h	NG(M3/h)	Gas Resource	LPG (Kg/h)

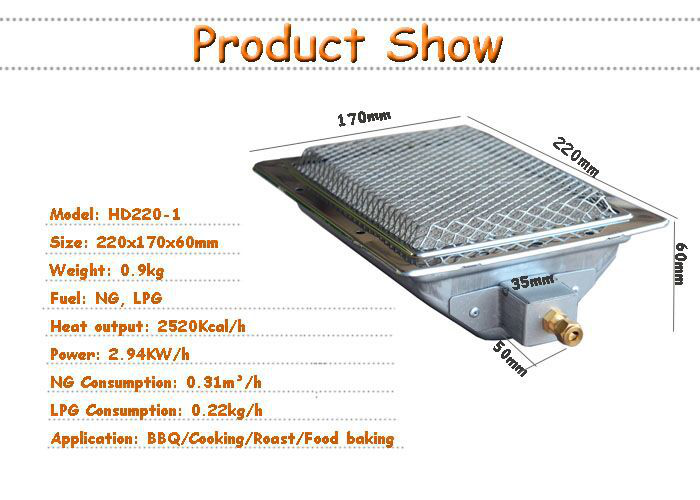

HD220	*22017060*	0.9	1000	2520	0.308	0.221	Natrual Gas,LPG, Propane, Butane
HD400	4008060	0.7	9030	2300	0.282	0.202
HD538	5388565	1.4	13500	3400	0.416	0.298
HD668	6688565	1.7	16600	4180	0.512	0.367
HD10	1706560	0.42	7500	1500	0.17	0.12
HD20	3006560	0.59	9400	1800	0.2	0.15
HD30	3406560	0.7	9500	2500	0.29	0.2

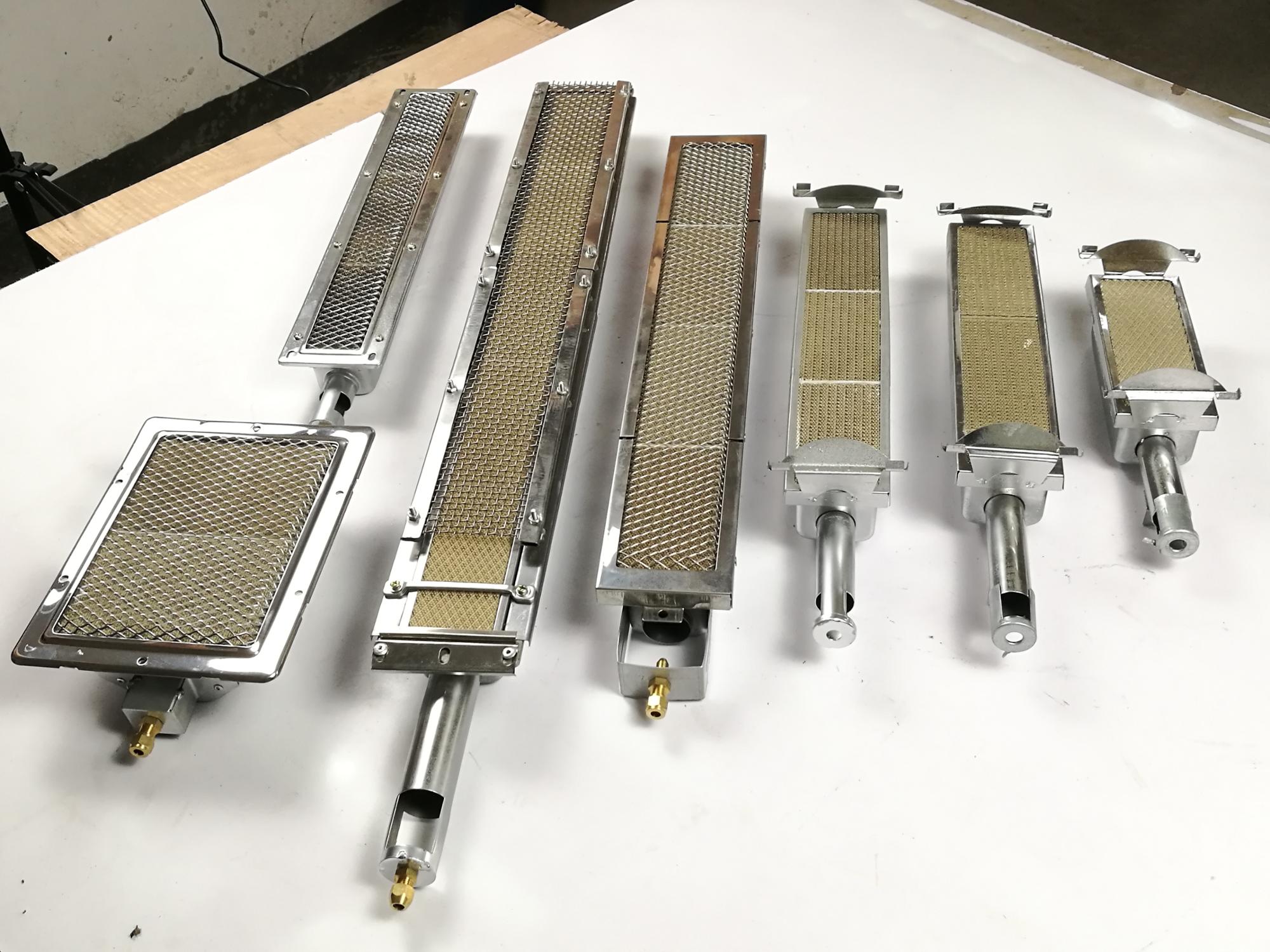

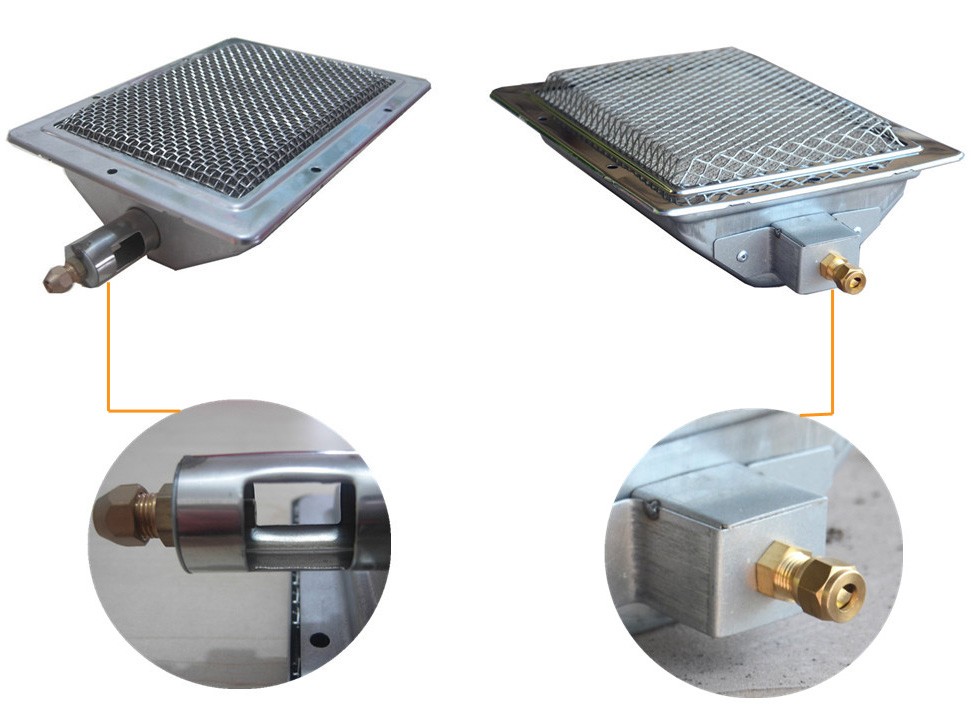

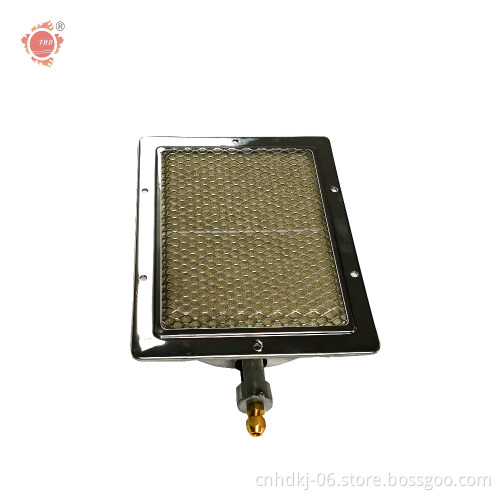

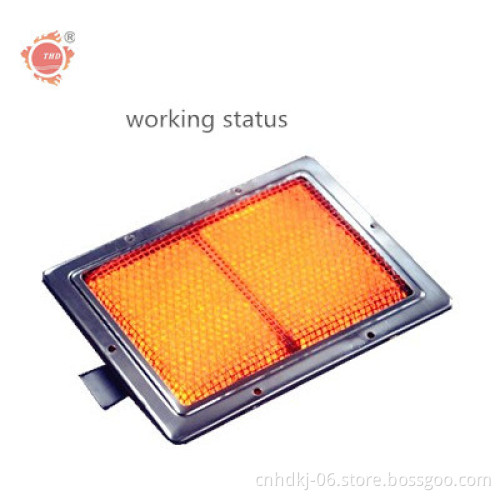

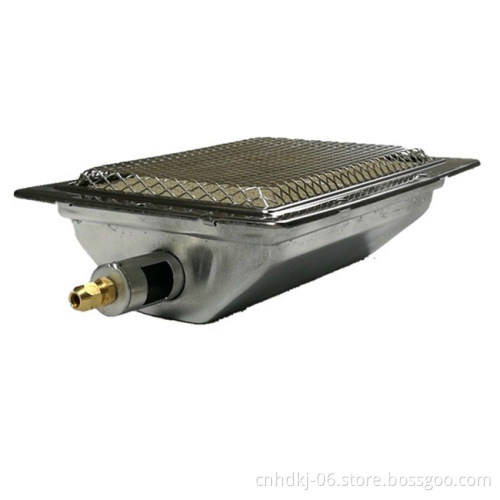

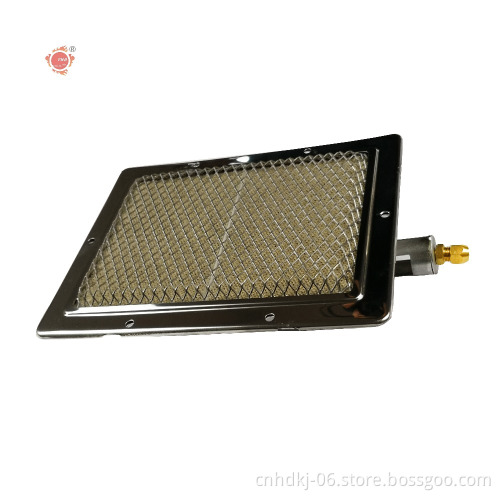

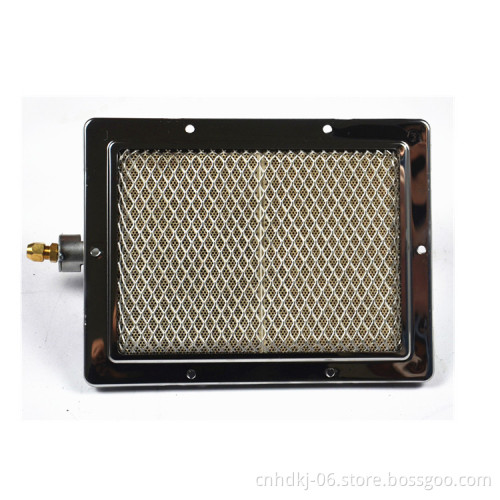

Details Images

Our Advantages

1. Easy being fixed.
2. Energy savings can be up to 20% per year
3. Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
4. No need for a long and expensive preheating, it will reach comfort temperature very quickly.
5. Long useful time: ≥11000hr
6. Easy to clean
7. It can cut off the gas automatically and protect the burner when the flameout.
8. Silent, light and compact
9. High efficiency: it can come to working condition in 8seconds.

More products

Appliation

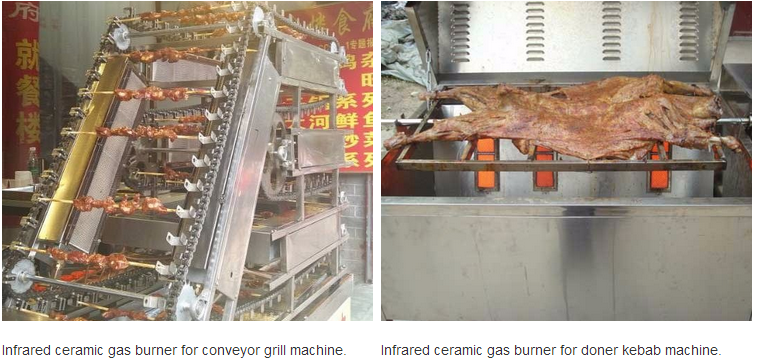

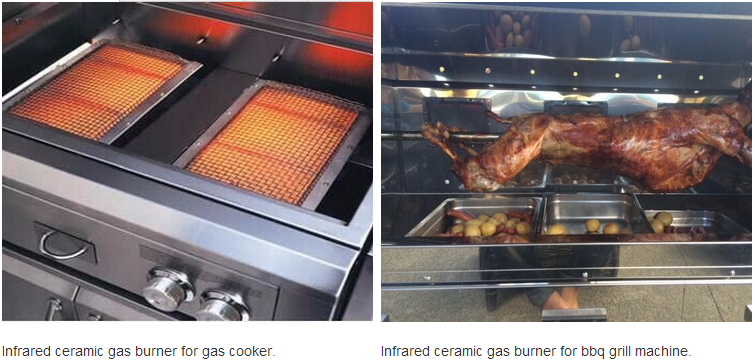

This kind burner now are Mainly used for barbecue oven , grill, chicken gas roaster , shawarma/ donner/kebab/gyros machine, bread oven,cake bakery equipment, cheese baking machine…
and can be installed at all directions, but at bottom with a heat resistance glass cover is best.

which will not keep burner working above 4 hours one time.

Company Profile

Chongqing Haodong Technology Co., Ltd is a professional manufacturer of Infrared Catalytic Gas Burner, bbq Gas Burner, Poultry heater, Gas brooder and Patio Heater etc.

Unique Rare-earth Catalyst Technology has gotten Patent certificate, it makes our burner to save 15~25% gas energy thannon-catalytic type.Located in Chongqing City, southwest of China.
we owns advanced assembly lines, computer controlled injection machines, various high precision test equipment, sterilizing equipment and laboratory facilities. Professional engineers and technicians are employed could meet customer's new requirements demand.
