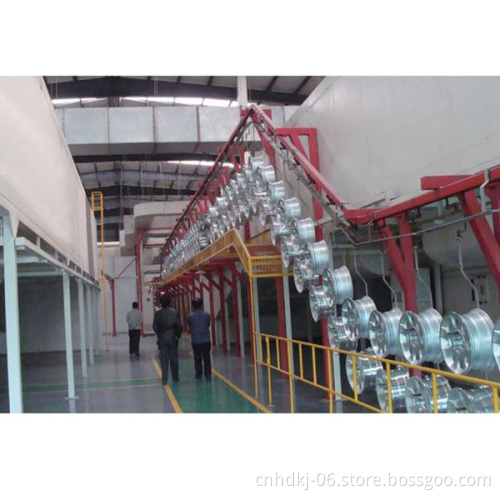

Monorail overhead conveyor system for car wheels powder coating line,single point loading weight 100kg

Monorail overhead conveyor system for car wheels powder coating line,single point loading weight 100kg

THD is a high-capacity, enclosed track chain conveyor designed for stability in conveying heavy duty loads of up to 100 kg. from a single pendant. This conveyor has a unique cross shaped track section that allows for “slot-up” (inverted), “slot sideways” (side-loaded) or “slot down” applications.

In the “slot up” (inverted) position, the THD replaces the typical spindle conveyor, where the load is carried above the conveyor track, yet it offers more functionality such as:

• Capability to incline and decline at up to 45 degrees
• Each drive can pull up to 260 meters of chain
• The conveyor chain is protected from contaminants due to the enclosed track design

Available Heavy Duty Overhead Conveyor Systems We Can Offer:

Other features of the THD high capacity conveyor:

Largest track cross-section in the industry for added stability in carrying heavy loads.
Enclosed track conveyor design prevents paint, dirt or other contaminants from getting to the chain which reduces maintenance costs and prolongs chain life.
The unique cross-shaped track section allows the slot to be configured in any orientation such as inverted and side-loaded. This may be important for high-level sanitary or high-quality paint and finish applications.
Bolted design, no welding required for simple and low cost assembly.
Modular track components ensure quick, trouble-free, onsite installation and modifications with reduced labor costs and minimized downtime during reconfiguration or maintenance.

THD heavy duty enclosed track conveyor is capable of carrying 100 kg. loads from a single hanging point. Larger loads of 200 kg. can be supported by two and four trolley load-bar arrangements respectively.

Typical applications for monorail enclosed track conveyors include:

• Paint lines.
• “Live” storage of products
• Work in progress
• Assembly lines
• Empty carton box delivery to order pickers
• Plastic tote box delivery to order pickers
• Corrugated trash removal from picking areas
• Garment Handling Systems
