Light weight overhead conveyor system for plastic crate transmission

Light weight overhead conveyor system for plastic crate transmission

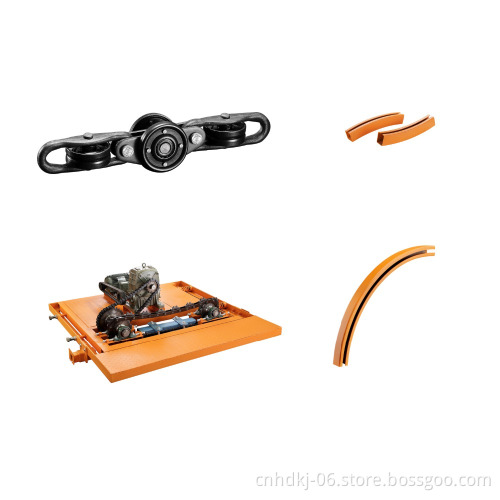

The THD Monorail Enclosed Track Conveyor is a highly compact, medium capacity, chain conveyor with unique features to allow for maximum conveying flexibility in small spaces:

• Low profile drives
• Low profile track sections
• Small radius rolled and hardened curves
• Small radius sprocket turns
• Small radius vertical curves, up to 90° if necessary

Available Enclosed Track Conveyors We Can Offer:

Large wooden doors hang from THD enclosed track conveyor to transport from finishing through assembly process
Transportation of empty boxes to apple packers utilizing overhead space with a THD conveyor.
The maze of overhead conveyor demonstrates a highly efficient use of Pacline straight track and curves.
The THD overhead conveyor is perfect for this powder coating application on storage locker components.

Other features of THD enclosed track conveyors:

• Modular track components ensure quick, trouble-free, onsite installations and modifications with reduced installation labor costs and minimized downtime.
• Bolted track design for easy installation without welding.
• All parts are zinc plated and heat treated to ensure full protection from wear and resistance to corrosive environments.
• Low profile drive and track and tight radius curves on both horizontal and vertical planes.
• Enclosed track prevents contamination from reaching chain and bearing surfaces for reduces cleaning and maintenance costs.
• Chain attachment points on 150 mm centers maximizes versatility of hanging products.



The THD Enclosed Track Overhead Conveyor is a proven performer with over 6000 meters of conveyor in use today. The THD is best suited for “slot down” applications where the load is beneath the conveyor track.

Typical applications for monorail enclosed track conveyors include:

• Paint lines.
• “Live” storage of products
• Work in progress
• Assembly lines
• Empty carton box delivery to order pickers
• Plastic tote box delivery to order pickers
• Corrugated trash removal from picking areas
• Garment Handling Systems
