Product Description

Product Name: China made trolley overhead hanging conveyor system UH-5075

UH-5075 overhead trolley conveyor chain which also called 5-Ton conveyor.

Standard chain (UH-5S), horizontal wheel heavy-duty chain (UH-5HH) and all wheel heavy-duty chain (UH-5HA), which are specially designed for the overhead conveyor.

High automatic mechanization and large angle bending space make the installment more convenient and stable.

Specification of China made trolley overhead hanging conveyor system UH-5075

MODEL ITEM	UH-5075-S Standard chain	UH-5075-HH Heavy-duty chain	UH-5075-HV Heavy-duty chain	UH-5075-HA Heavy-duty chain
Suspension Spacing (mm)	150+(150× N)	150+(150 × N)	150+(150 × N)	150+(150 × N)
Chain's Weight (kg/m)	4.2	4.58	4.83	5.3
Single-span Weight (≤kg)	35	40	45	50
Chain's Allowed Pull Force (≤kgf)	3000	3000	3000	3000
Chain's Catastrophic Pull Force (≥kgf)	5500	5500	5500	5500
Working temperature (≤°C)	250	300	300	400
Applicable Equipment	General conditions	Large bending; High temperature;	High temperature; Heavy work piece; Frequently lifted;	High temperature; Heavy work piece; Complicated route;
Material	16# Medium-carbon steel, Steel A3
Remark: The above technical data is for our usual hanging type conveyors: UH-5S, UH-5HH, VH-5HA type. We can customize design and manufacture the products based customers particular requirements.

China made trolley overhead hanging conveyor system UH 5075

Drawing of China made trolley overhead hanging conveyor system UH-5075:

China made trolley overhead hanging conveyor system UH 5075

Advantages of China made trolley overhead hanging conveyor system UH-5075:

Low noise
Less power consumption
Stable operate performance
User-friendly and safe use
Excellent extensity
Make full use of space
Large angle bending space
High mechanization & automatization
Close -up continual conveying equipment
Work perfectly together with the ground facilities
Make any turns on both horizontal plane and vertical planes

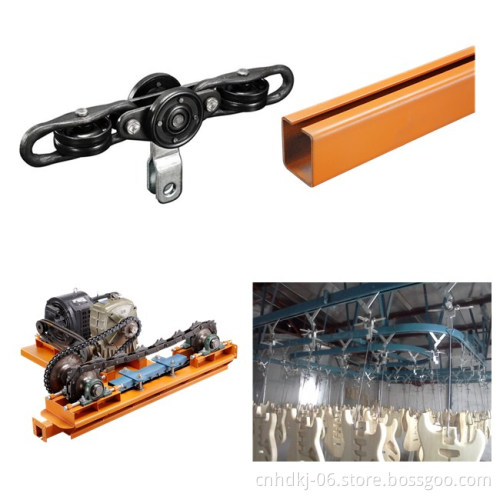

Other spare parts for China made trolley overhead hanging conveyor system UH-5075:

Track: Straight track, Bush track,Vertical track, Horizontal Track

Driver Device:Limit-load Caterpillar Driver Device, Caterpillar Driver Device, Sprocket Driver

Take up Device:Heavy Bob type take up device

Hanger:Cross type disk hanger, sprocket wheel hanger, Y type hanger, Cross type hanger, electroplating hanger,

U type Hanger,Bearing hanger

Other Accessories: hanger turner, track flange, track install hanger,check track, Manual /automatic oil feeding cup

Automatic oil sprayer

China made trolley overhead hanging conveyor system UH 5075

Application of China made trolley overhead hanging conveyor system UH-5075:

Conveyor chain is closeoop continual conveying equipment widely applied for continual convey of various industrial work pieces,

such as surface treatment, powder coating, paint spraying, drying, oven, cooling room and plaing the finished products off the line, furniture factories, bicycle plants,electronic products factory, hardware factory.
