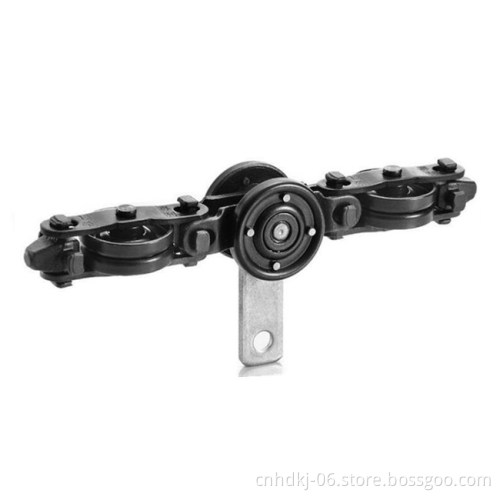

Trolley overhead price chain conveyor UH-5075

Trolley overhead price chain conveyor UH-5075

$15.00

≥100 Meter

Min. Order:: 1 Meter

Min. Order:: 1 Meter

Transportation:: Express, Ocean, Land, Air

Port:: Any port of China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	50000 Meter/Meters per Month
Payment Type:	L/C,T/T,MoneyGram,Paypal
Transportation:	Express,Ocean,Land,Air
Port:	Any port of China

Product Description

Product Name: Trolley overhead price chain conveyor UH-5075

Trolley overhead price chain conveyor UH-5075

Specification of Trolley overhead price chain conveyor

MODEL ITEM	UH-5075-S Standard chain	UH-5075-HH Heavy-duty chain	UH-5075-HV Heavy-duty chain	UH-5075-HA Heavy-duty chain
Suspension Spacing (mm)	150+(150× N)	150+(150 × N)	150+(150 × N)	150+(150 × N)
Chain's Weight (kg/m)	4.2	4.58	4.83	5.3
Single-span Weight (≤kg)	35	40	45	50
Chain's Allowed Pull Force (≤kgf)	3000	3000	3000	3000
Chain's Catastrophic Pull Force (≥kgf)	5500	5500	5500	5500
Working temperature (≤°C)	250	300	300	400
Applicable Equipment	General conditions	Large bending; High temperature;	High temperature; Heavy work piece; Frequently lifted;	High temperature; Heavy work piece; Complicated route;
Material	16# Medium-carbon steel, Steel A3
Remark: The above technical data is for our usual hanging type conveyors: UH-5S, UH-5HH, VH-5HA type. We can customize design and manufacture the products based customers particular requirements.

Drawing of Trolley overhead price chain conveyor

Trolley overhead price chain conveyor UH-5075

Advantages of Trolley overhead price chain conveyor:

Low noise
Less power consumption
Stable operate performance
User-friendly and safe use
Excellent extensity
Make full use of space
Large angle bending space
High mechanization & automatization
Close -up continual conveying equipment
Work perfectly together with the ground facilities
Make any turns on both horizontal plane and vertical planes

Other spare parts for Trolley overhead price chain conveyor

Track: Straight track, Bush track,Vertical track, Horizontal Track

Driver Device:Limit-load Caterpillar Driver Device, Caterpillar Driver Device, Sprocket Driver

Take up Device:Heavy Bob type take up device

Hanger:Cross type disk hanger, sprocket wheel hanger, Y type hanger, Cross type hanger, electroplating hanger,

U type Hanger,Bearing hanger

Other Accessories: hanger turner, track flange, track install hanger,check track, Manual /automatic oil feeding cup

Automatic oil sprayer

Trolley overhead price chain conveyor UH-5075

Package of Trolley overhead price chain conveyor:

Trolley overhead price chain conveyor UH-5075

About Us:

UH-5075 overhead trolley conveyor chain which also called 5-Ton conveyor.

Standard chain (UH-5S), horizontal wheel heavy-duty chain (UH-5HH) and all wheel heavy-duty chain (UH-5HA), which are specially designed for the overhead conveyor.

High automatic mechanization and large angle bending space make the installment more convenient and stable.

FAQ

1. Chain Material:16# Medium-carbon steel, Steel A3

2. Track material: Steel A3

3. The drive system better to be 5~7 meters after the adjust seat

4 If dont move, check if any straight and curve rails; check the motor and chain; check if use high temperature chain lubricant.

5.If chain fall of the drive, check the driving wheel

Our Services

We have professional engineer to design you a whole overhead conveyor chain line.
